Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (PONTIAC) or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (OLDSMOBILE) in Instrument Panel, Gages, and Console.
  2. Rotate the shift control indicator lamp socket (4) counterclockwise. Remove the socket from the trim plate (1).
  3. Remove the bulb from the socket.

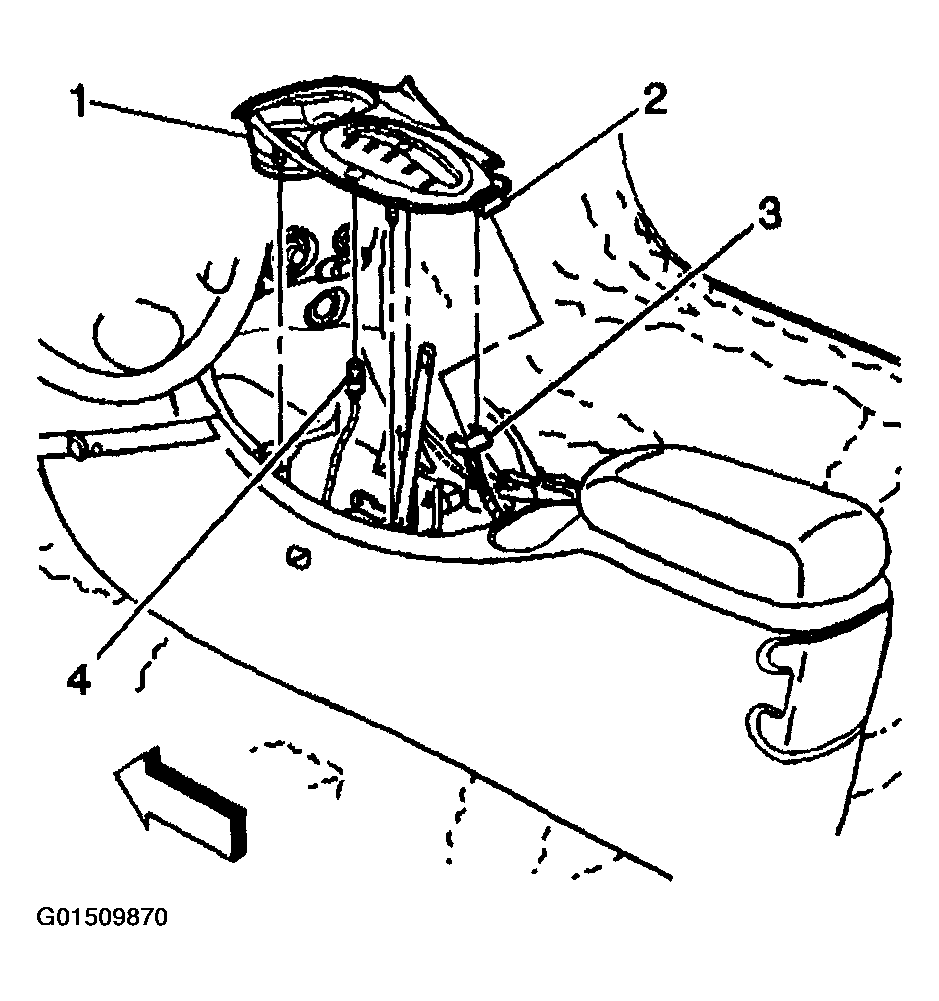

    Fig 1: Removing Shift Control Indicator Lamp Socket From Trim Plate
    G01509870Courtesy of GENERAL MOTORS CORP.
