Door Lock Relay Connector End View

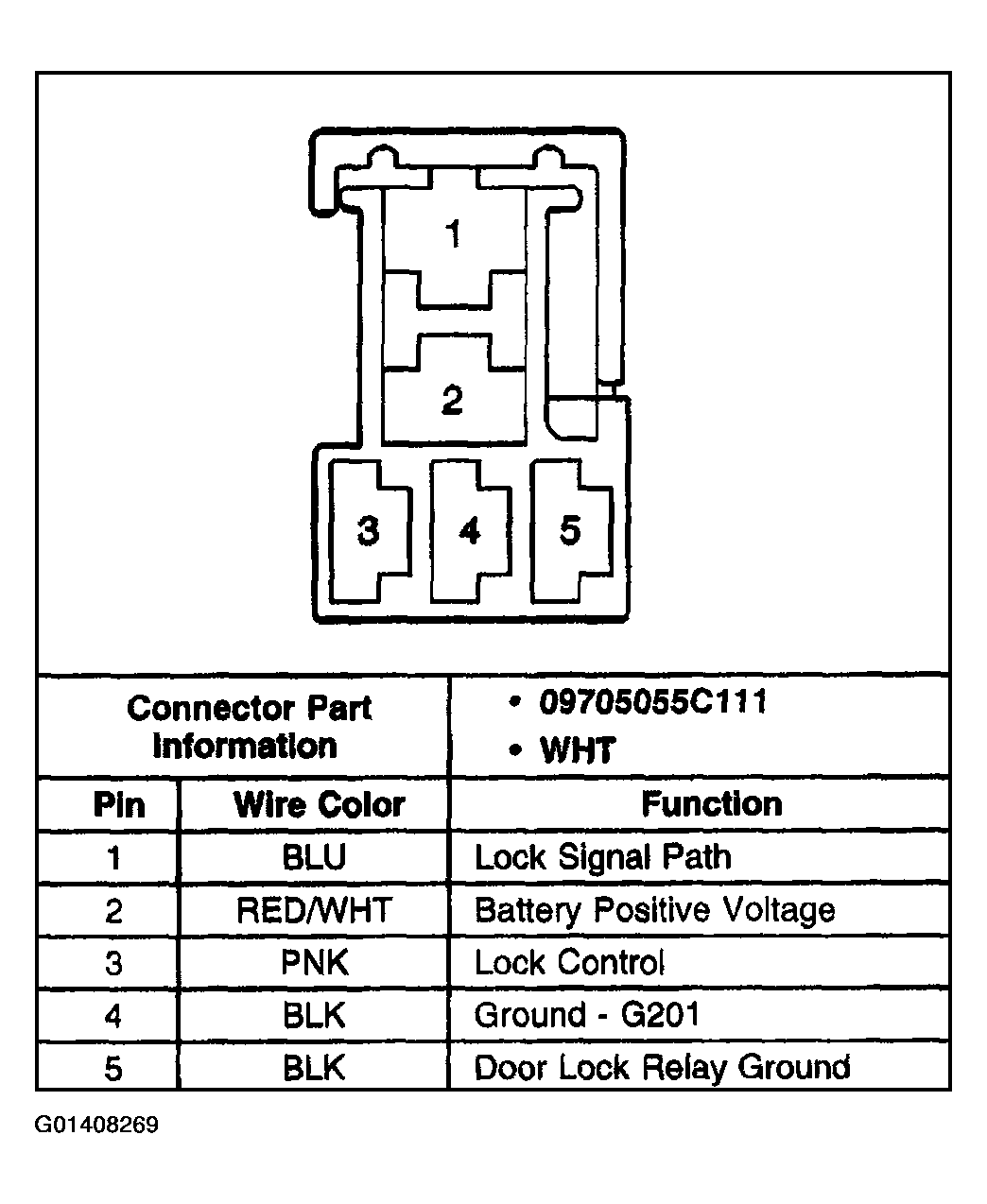

Fig 1: Door Lock Relay

G01408269

Courtesy of GENERAL MOTORS CORP.
