Removal Procedure

  1. Gently pry the outside rearview mirror opening cover (2) from the front side door.

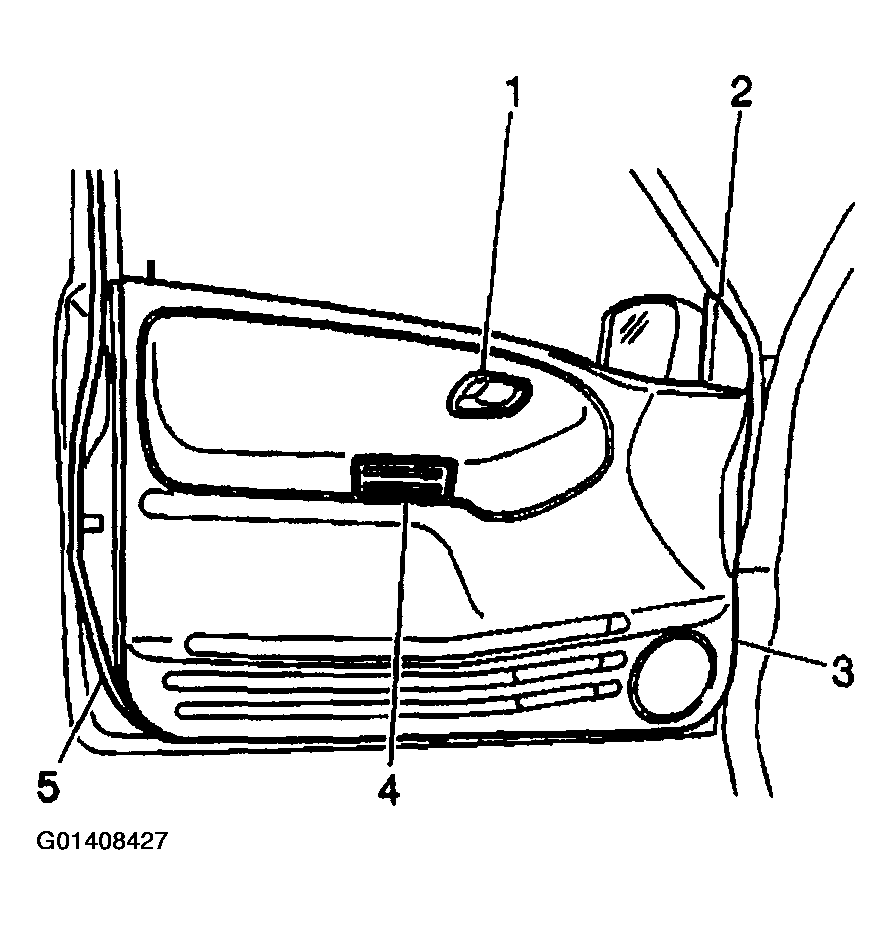

    Fig 1: Front Side Door Outside Power Rearview Mirror Opening Cover
    G01408427Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the outside rearview mirror electrical connector (1).
  3. Remove the 3 bolts (2) and outside rearview mirror (3) from the door.

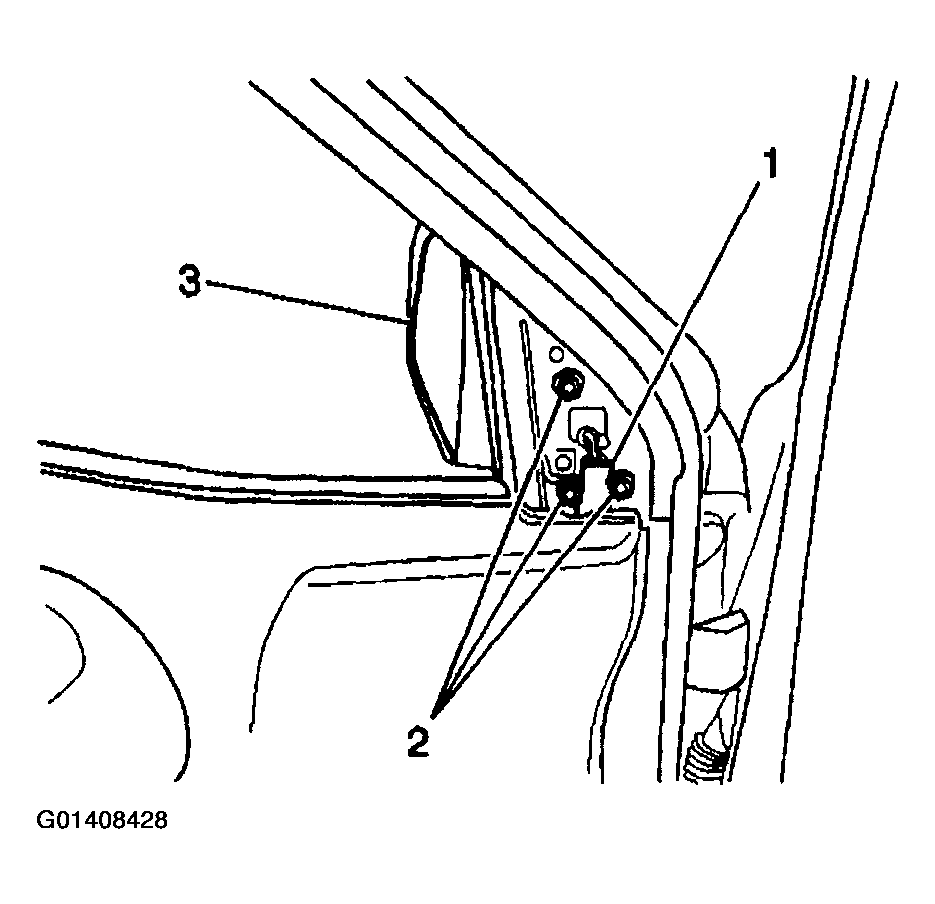

    Fig 2: Front Side Door Outside Power Rearview Mirror Bolts
    G01408428Courtesy of GENERAL MOTORS CORP.
