Power Steering Pump - Disassembled View

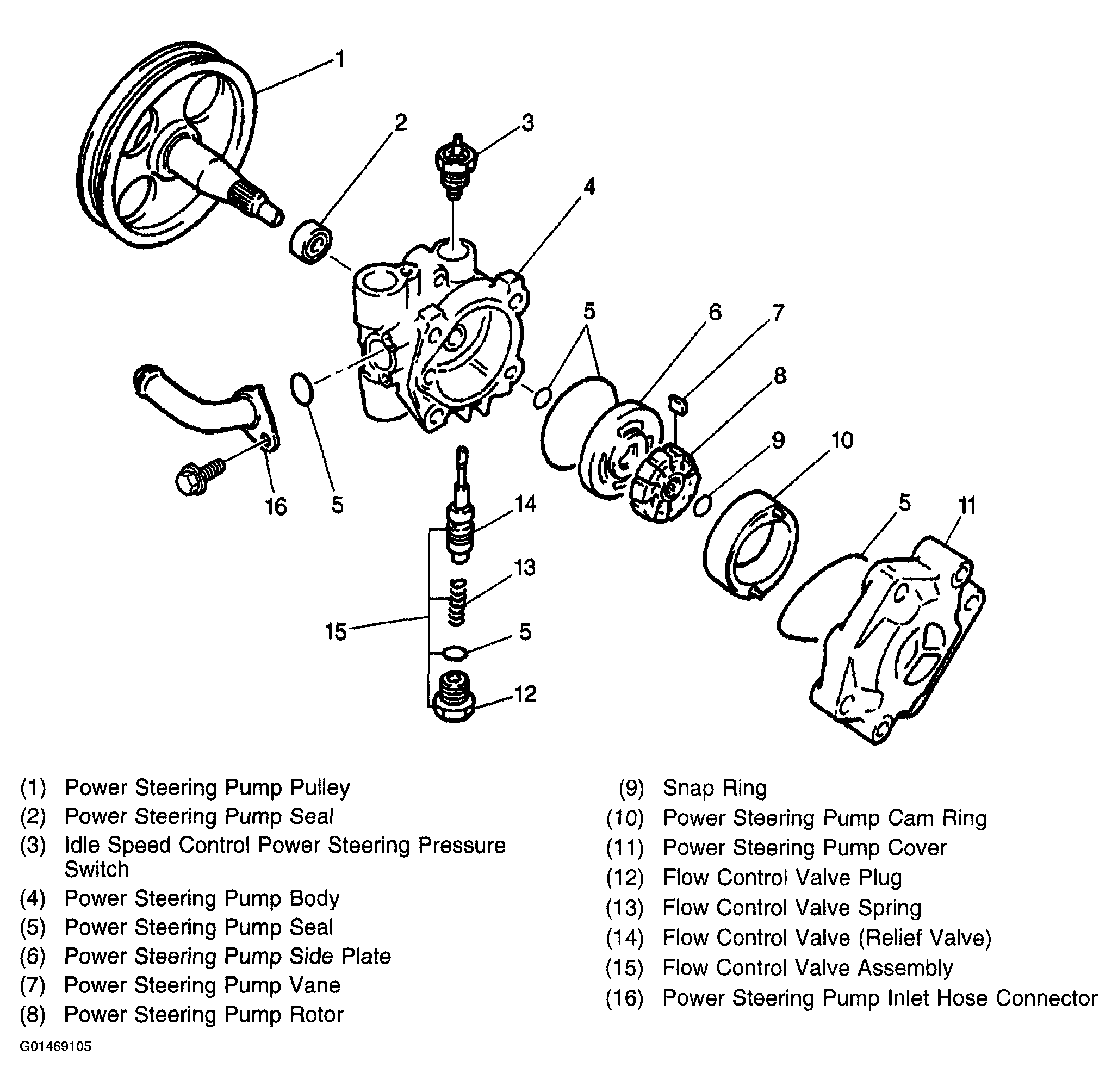

Fig 1: Disassembling View Of Power Steering Pump

G01469105

Courtesy of GENERAL MOTORS CORP.
