Vehicle Speed Sensor (VSS) Connector End View

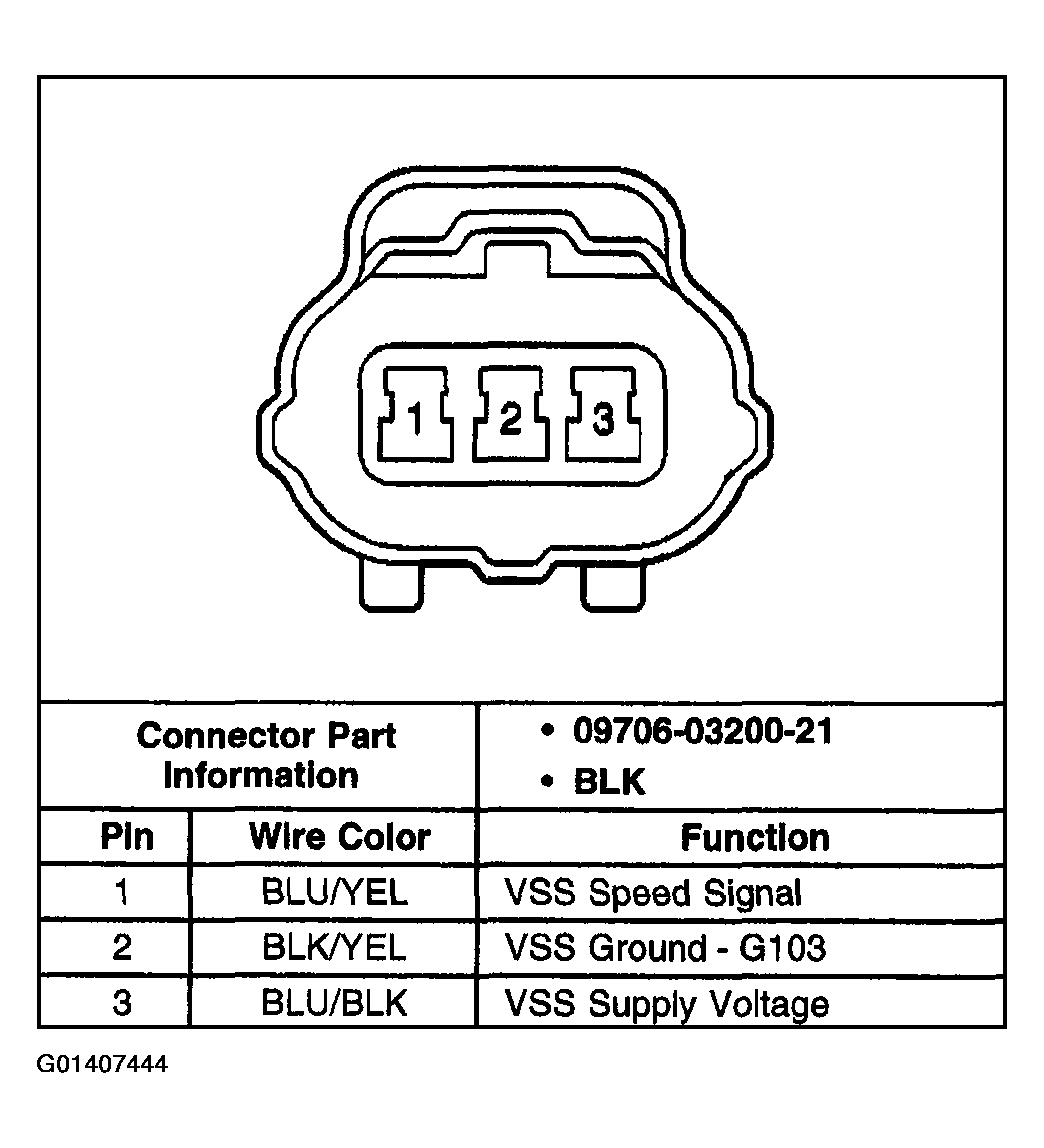

Fig 1: Vehicle Speed Sensor (VSS)

G01407444

Courtesy of GENERAL MOTORS CORP.
