Turn Signal / Multifunction Switch, C3 Connector End View

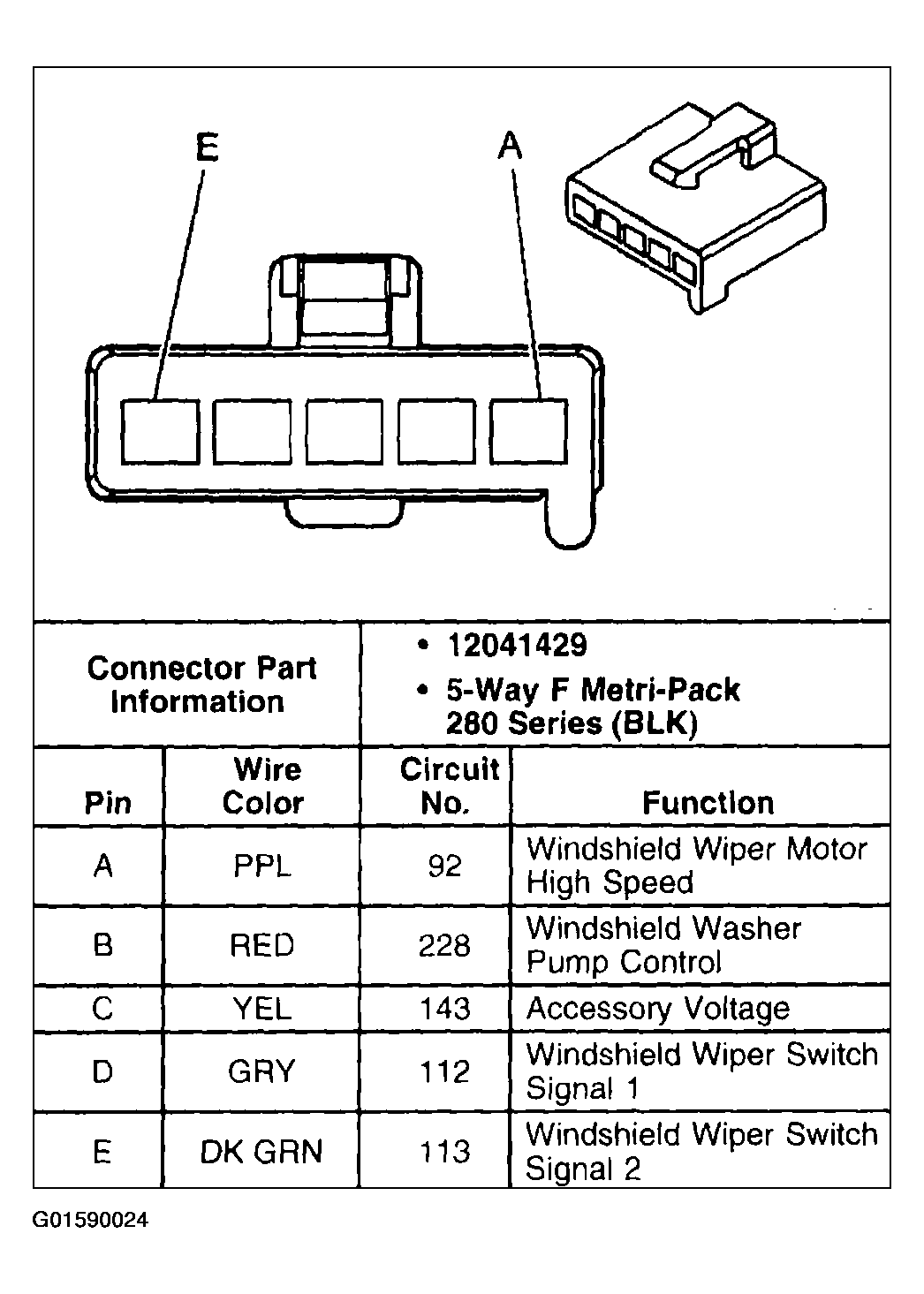

Fig 1: Turn Signal / Multifunction Switch, C3 Connector End View

G01590024

Courtesy of GENERAL MOTORS CORP.
