Transaxle Shift Indicator Lamp Connector End View

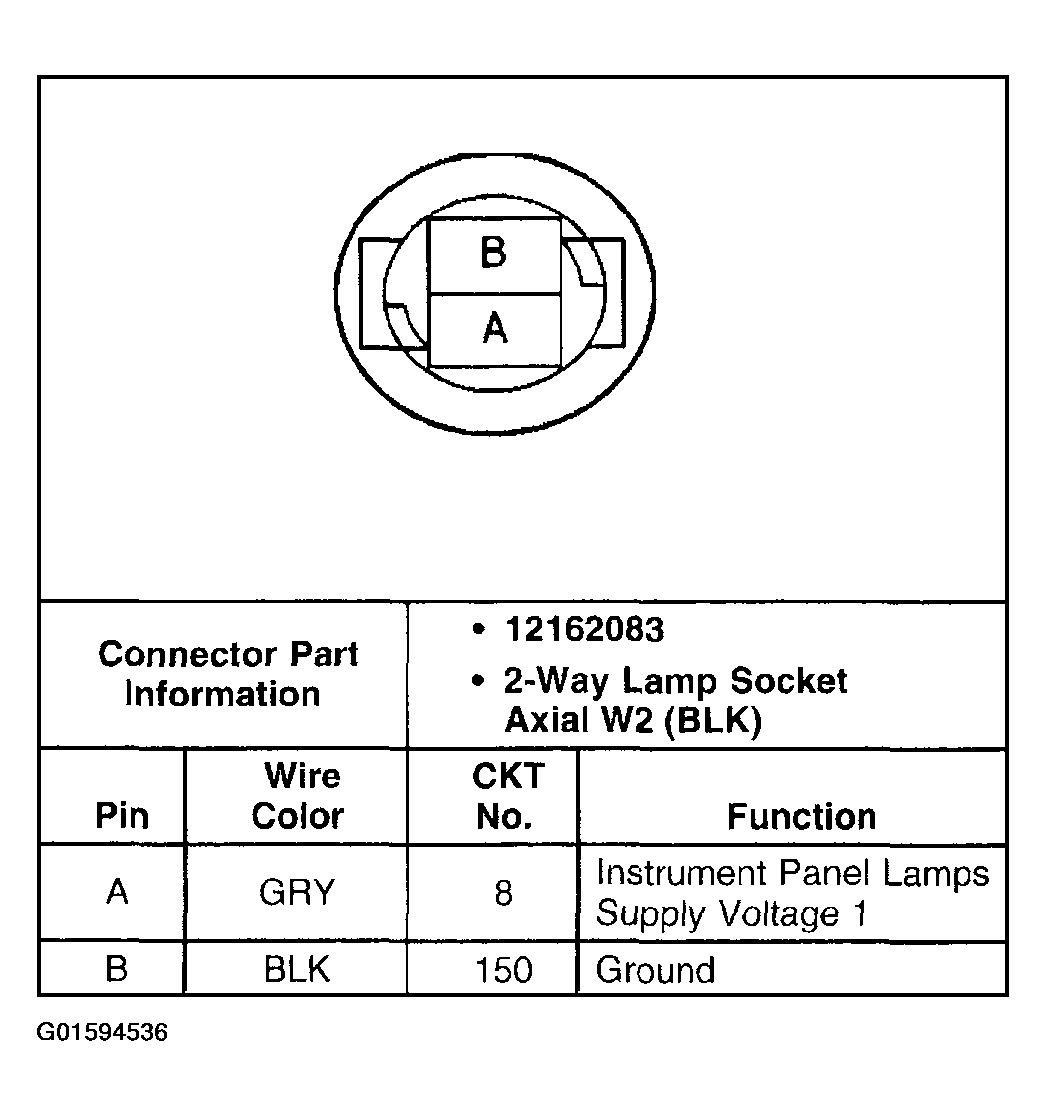

Fig 1: Transaxle Shift Indicator Lamp Connector End View

G01594536

Courtesy of GENERAL MOTORS CORP.
