Locating Cruise Control Connector End View (Brake Switch)

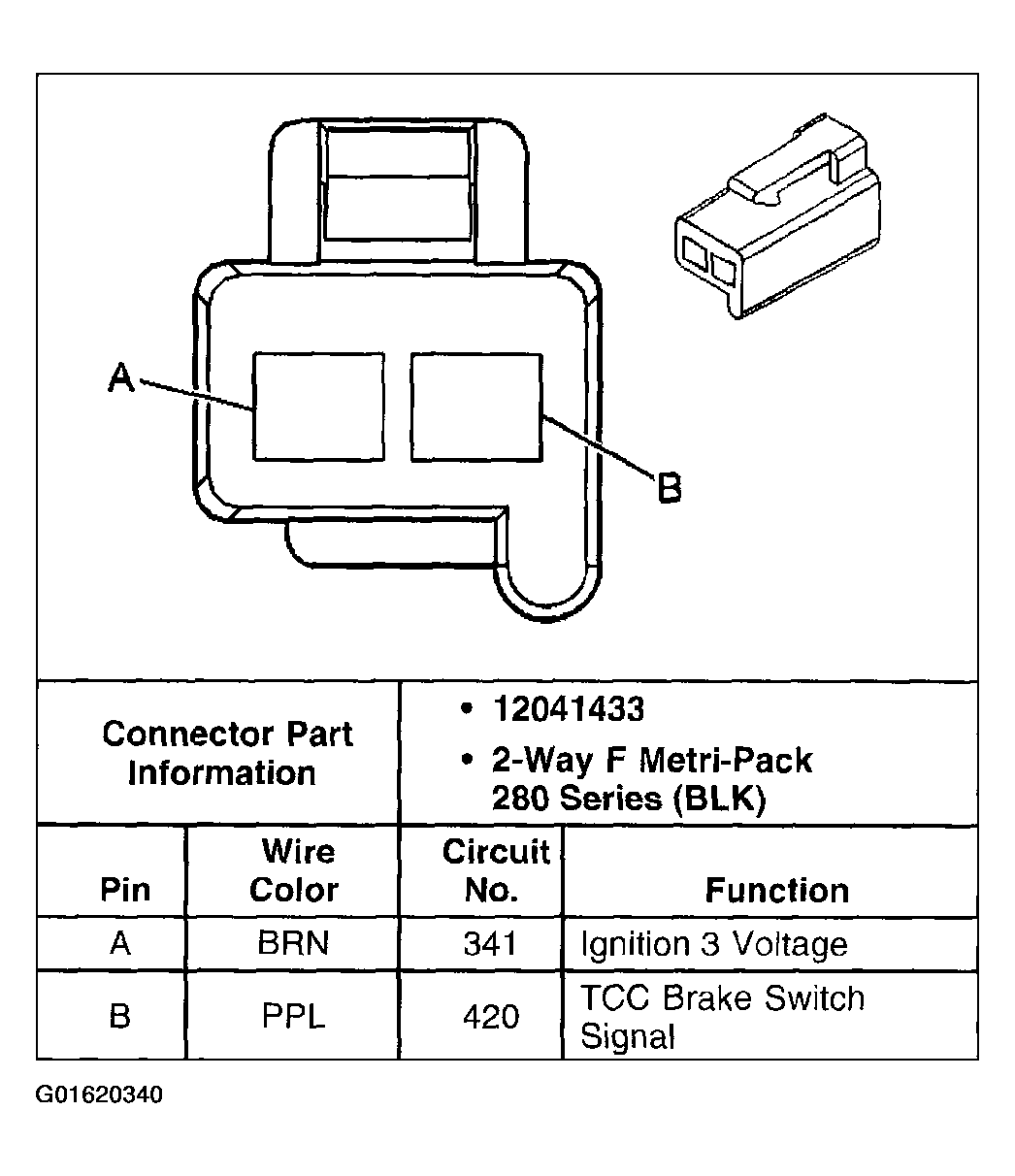

Fig 1: Locating Cruise Control Connector End View (Brake Switch)

G01620340

Courtesy of GENERAL MOTORS CORP.
