I/P Dimmer Switch Connector End View

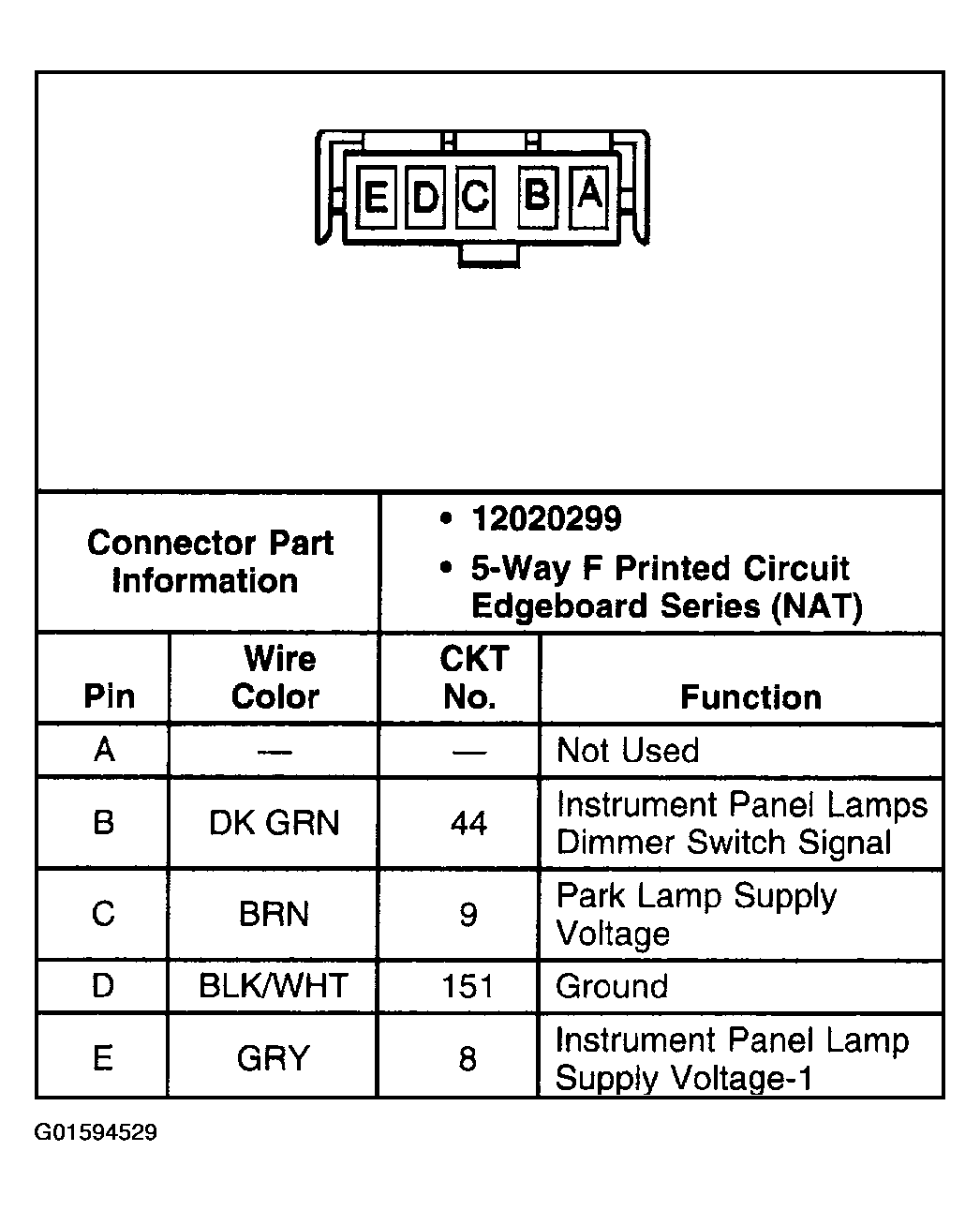

Fig 1: I/P Dimmer Switch Connector End View

G01594529

Courtesy of GENERAL MOTORS CORP.
