Fog Lamp Switch Connector End View

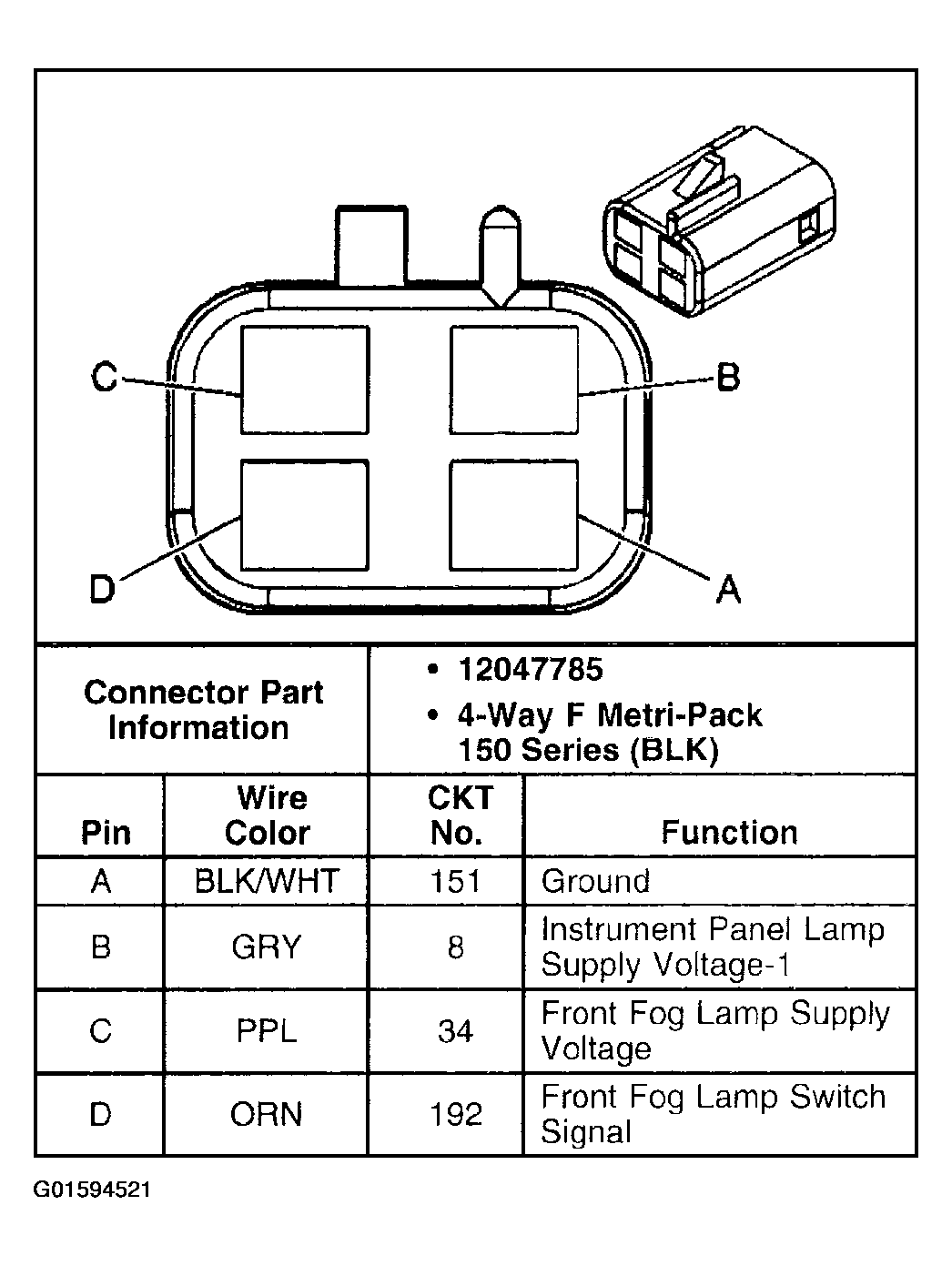

Fig 1: Fog Lamp Switch Connector End View

G01594521

Courtesy of GENERAL MOTORS CORP.
