Cooling System Connector End View - Coolant Level Switch

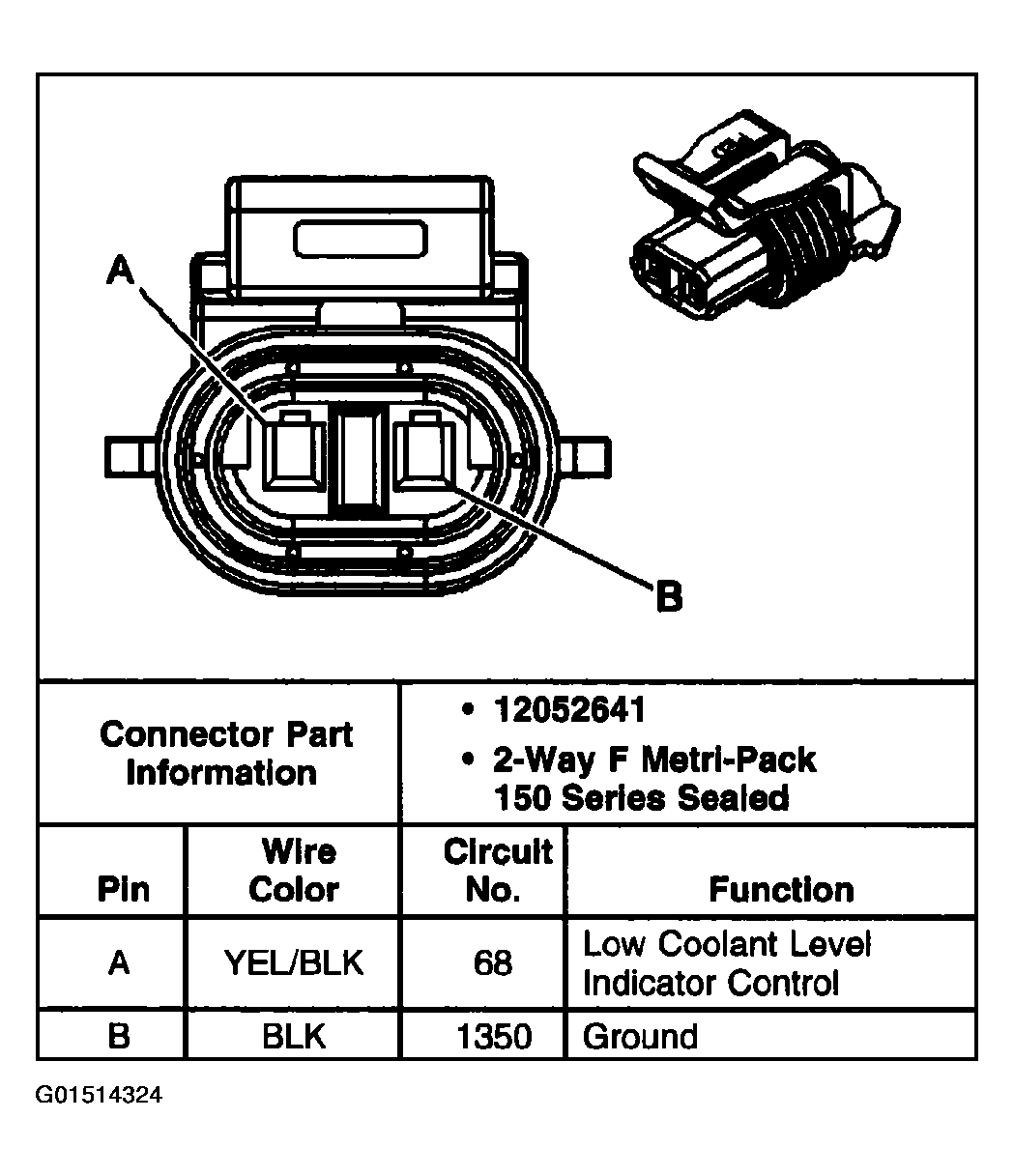

Fig 1: Cooling System Connector End View - Coolant Level Switch

G01514324

Courtesy of GENERAL MOTORS CORP.
