Brake Switch C1 Connector End View

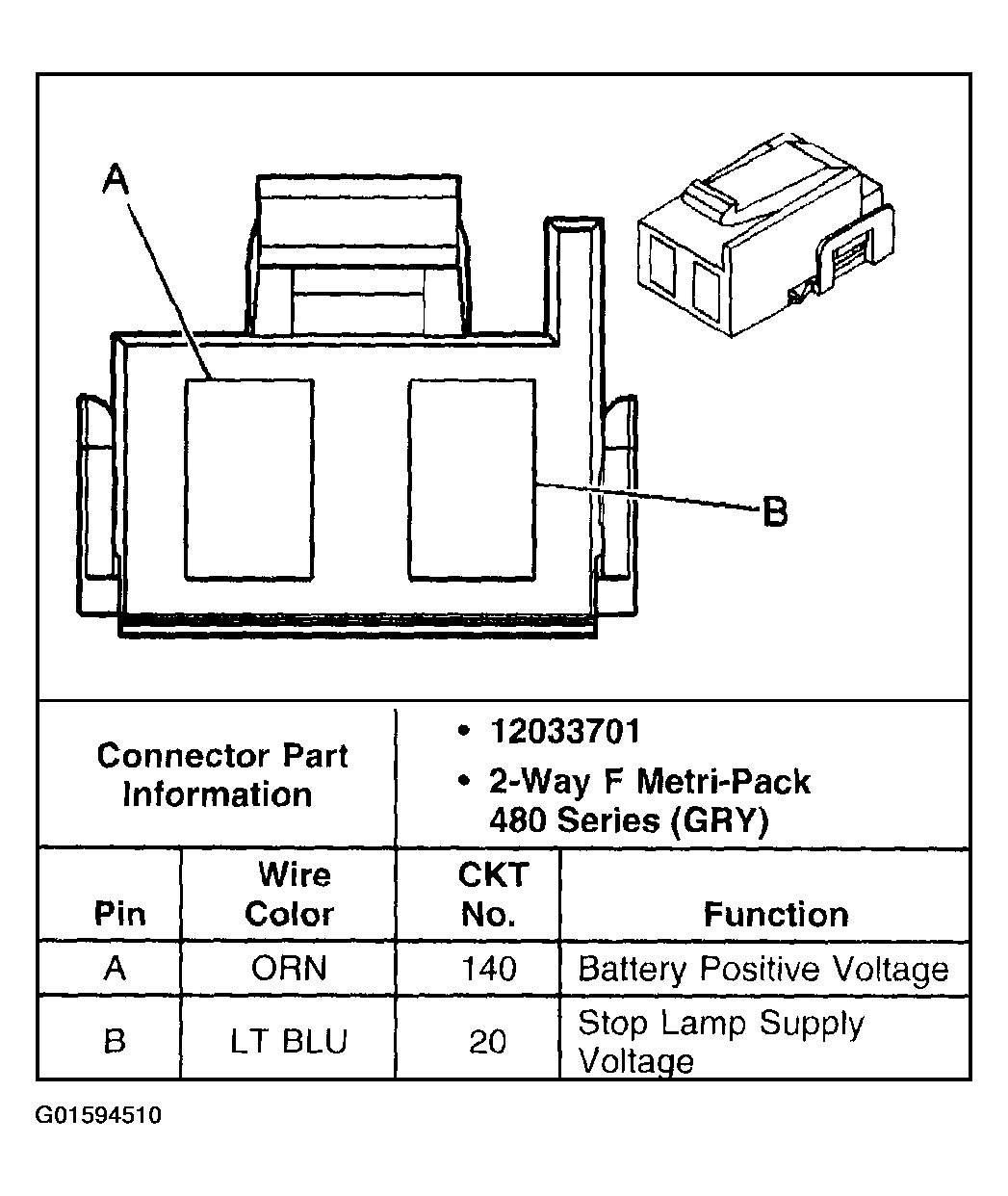

Fig 1: Brake Switch C1 Connector End View

G01594510

Courtesy of GENERAL MOTORS CORP.
