Inline Connector End View C125

Inline Connector C125

GM696940Courtesy of GENERAL MOTORS CORP.

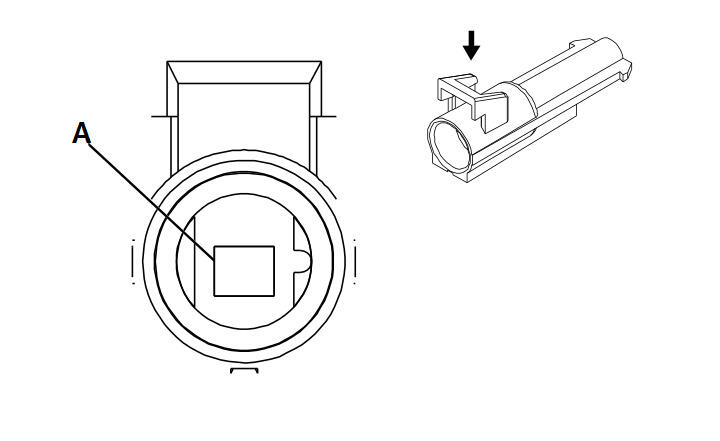

GM795617Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065172
  • 1-Way F Metri-Pack 280 Series Sealed (BLK)
 Connector Part Information
  • 12146314
  • 1-Way M Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 1876 KS 2 Signal A DK BLU 1876 KS 2 Signal
