Diagnostic Procedures

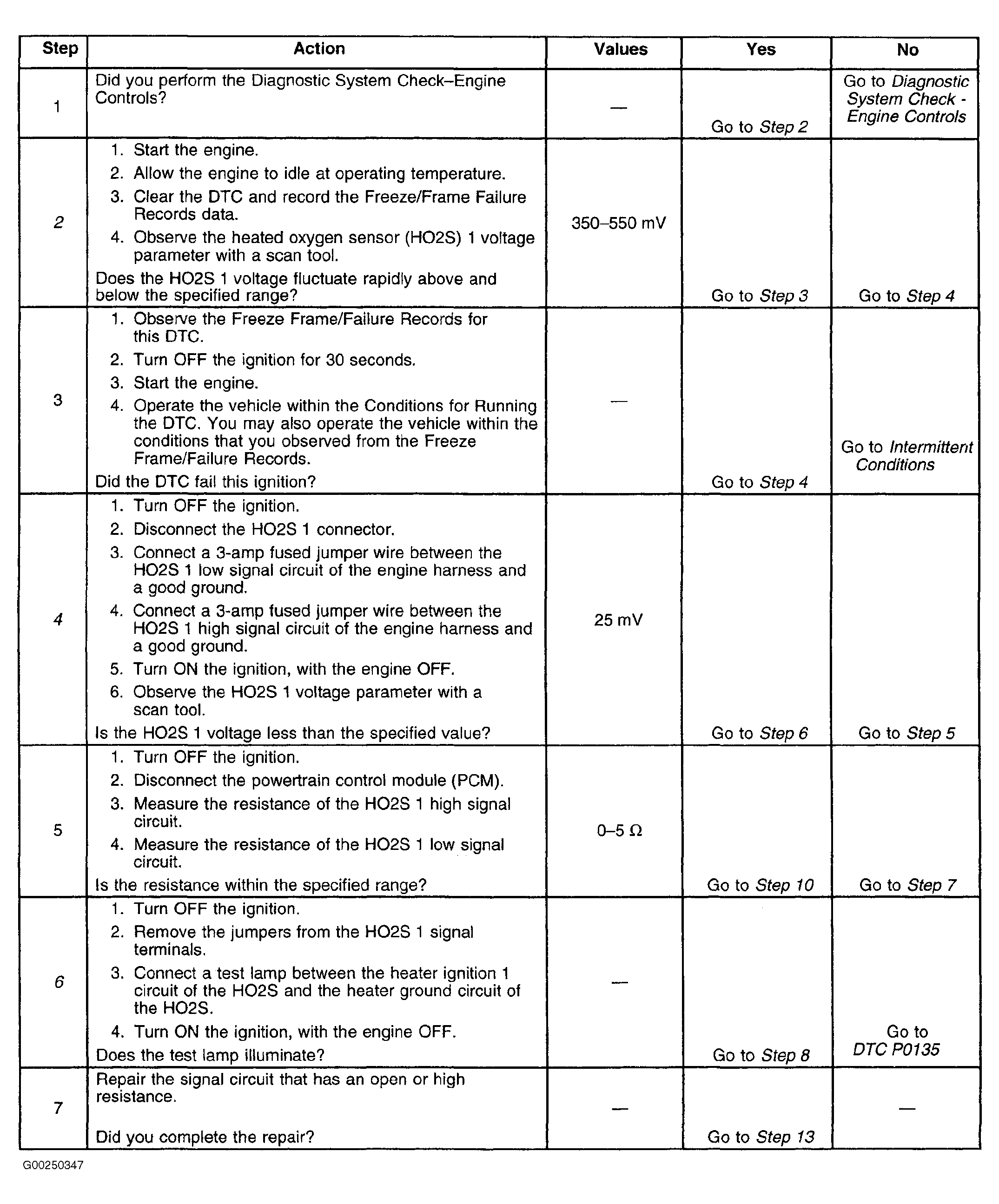

Fig 1: DTC P0130: Low Activity - Sensor 1 (Steps 1-7)

G00250347

Courtesy of GENERAL MOTORS CORP.

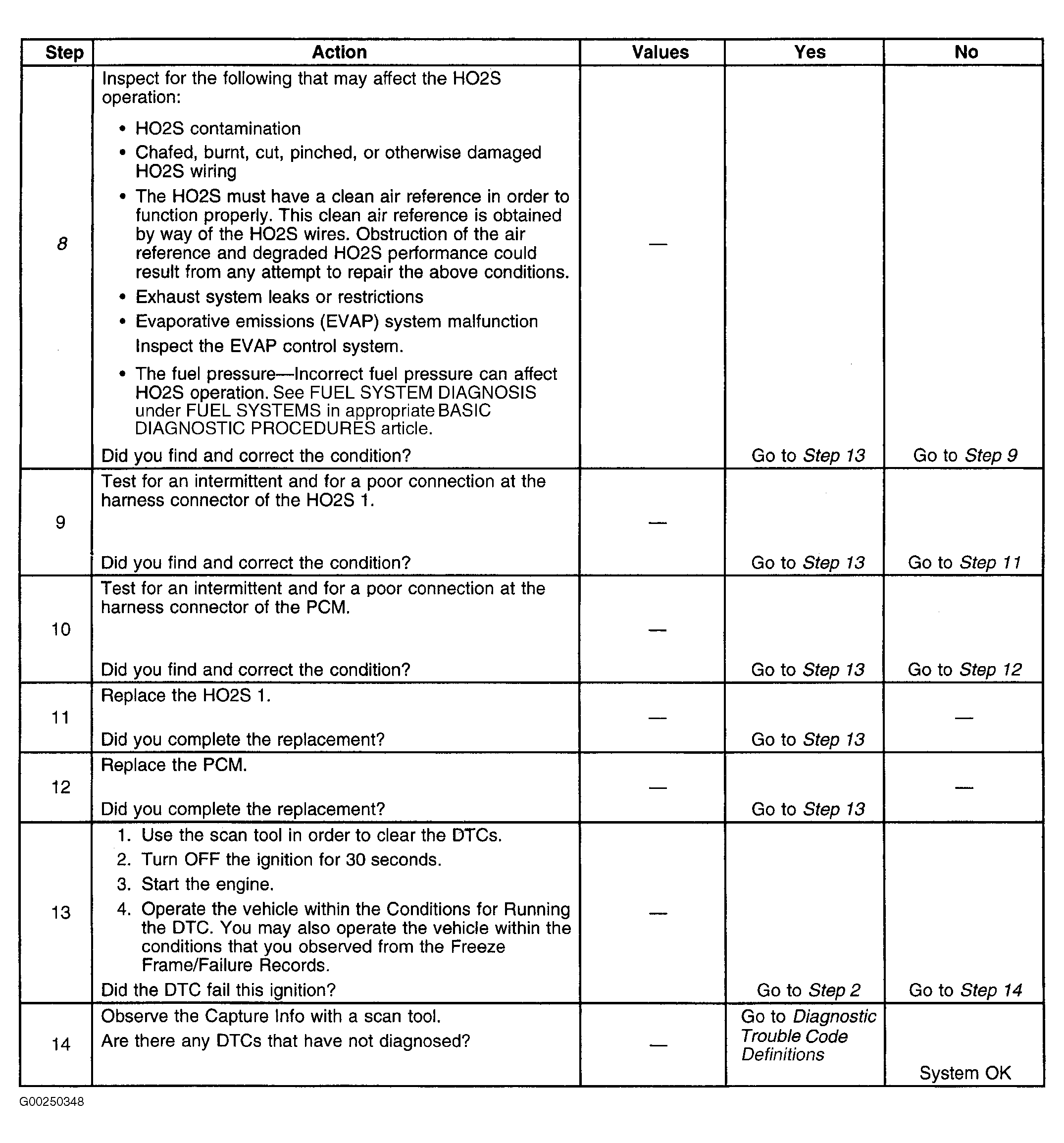

Fig 2: DTC P0130: Low Activity - Sensor 1 (Steps 8-14)

G00250348

Courtesy of GENERAL MOTORS CORP.
