Home >> Chevrolet >> 2003 >> Impala LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Self-Diagnostics - 3.8L >> Diagnostic Tests >> DTC P0103: MAF Sensor Circuit - High Frequency >> Diagnostic Procedures

Diagnostic Procedures

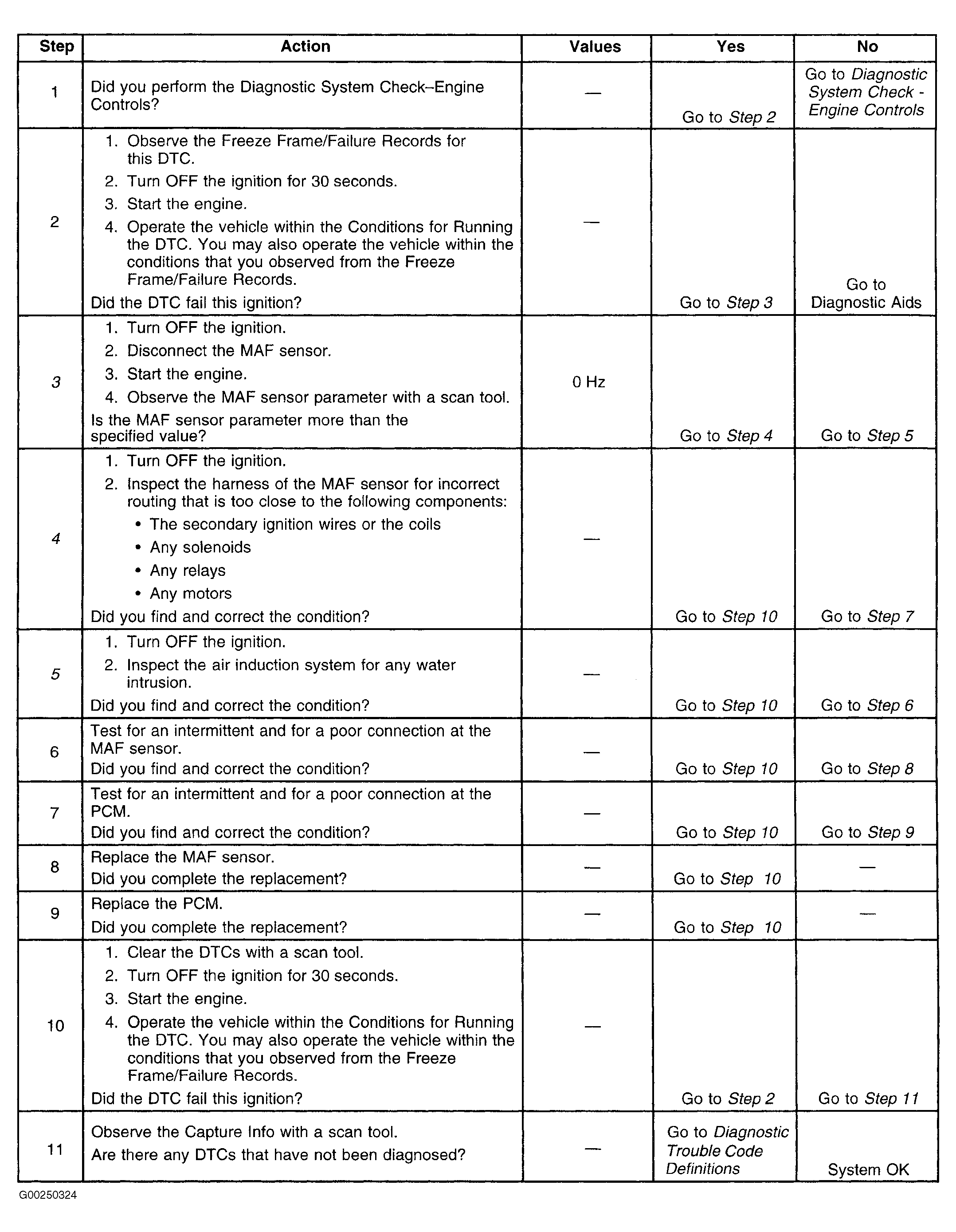

Fig 1: DTC P0103: MAF Sensor Circuit - High Frequency
G00250324Courtesy of GENERAL MOTORS CORP.
