Diagnostic Procedures

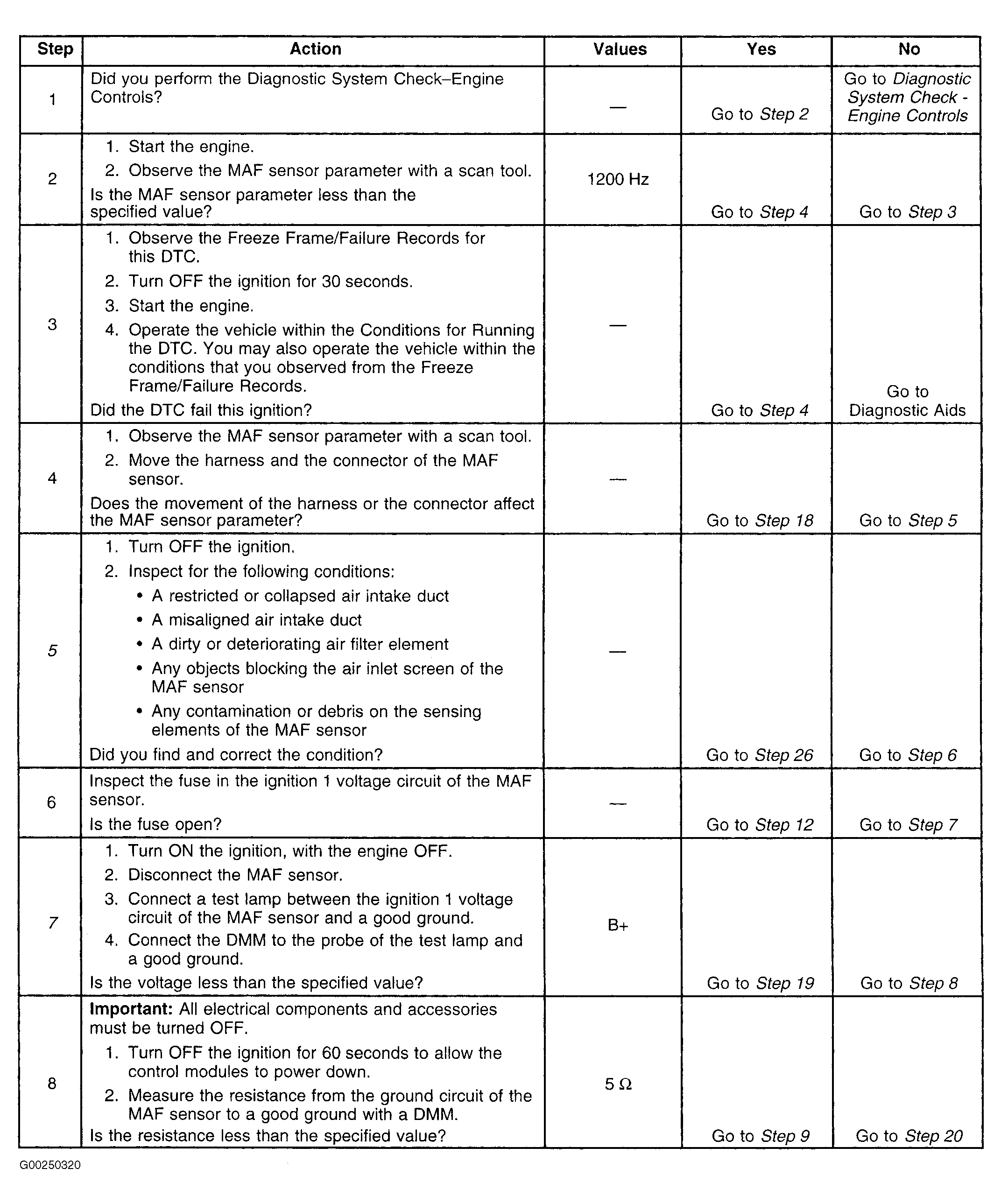

Fig 1: DTC P0102: MAF Sensor Circuit - Low Frequency (Steps 1-8)
G00250320Courtesy of GENERAL MOTORS CORP.

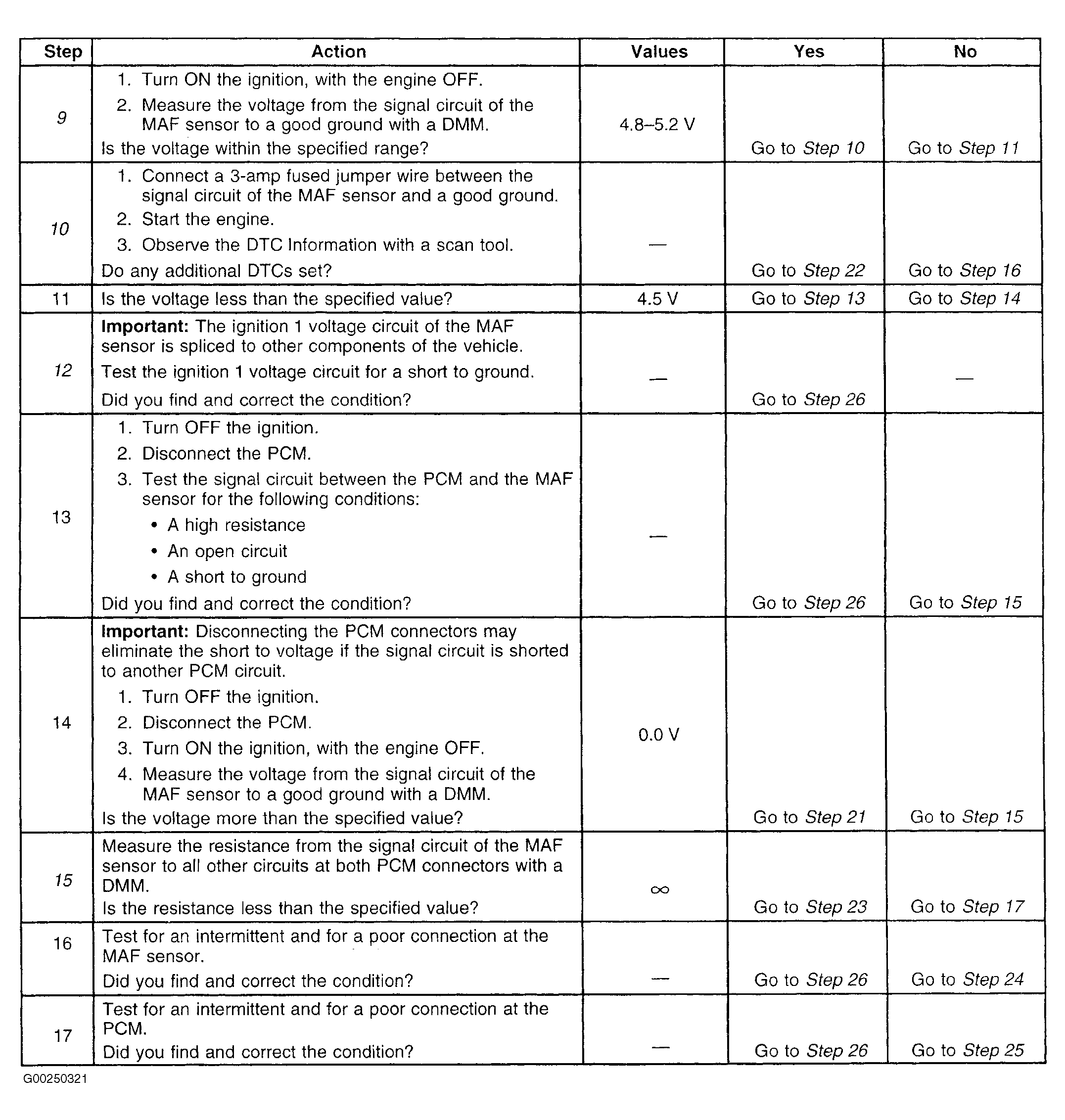

Fig 2: DTC P0102: MAF Sensor Circuit - Low Frequency (Steps 9-17)
G00250321Courtesy of GENERAL MOTORS CORP.

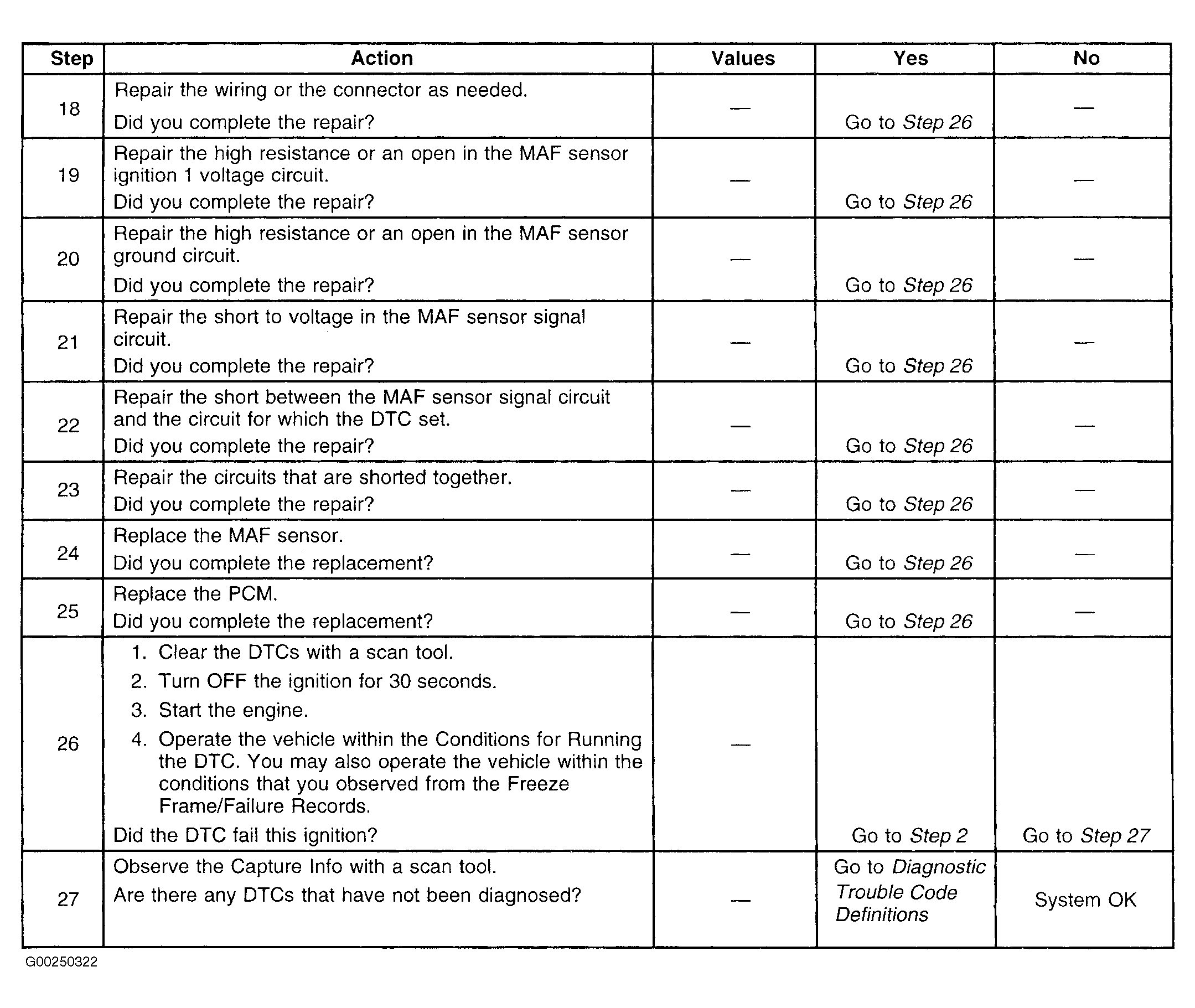

Fig 3: DTC P0102: MAF Sensor Circuit - Low Frequency (Steps 18-27)
G00250322Courtesy of GENERAL MOTORS CORP.
