Outside Mirror Schematics

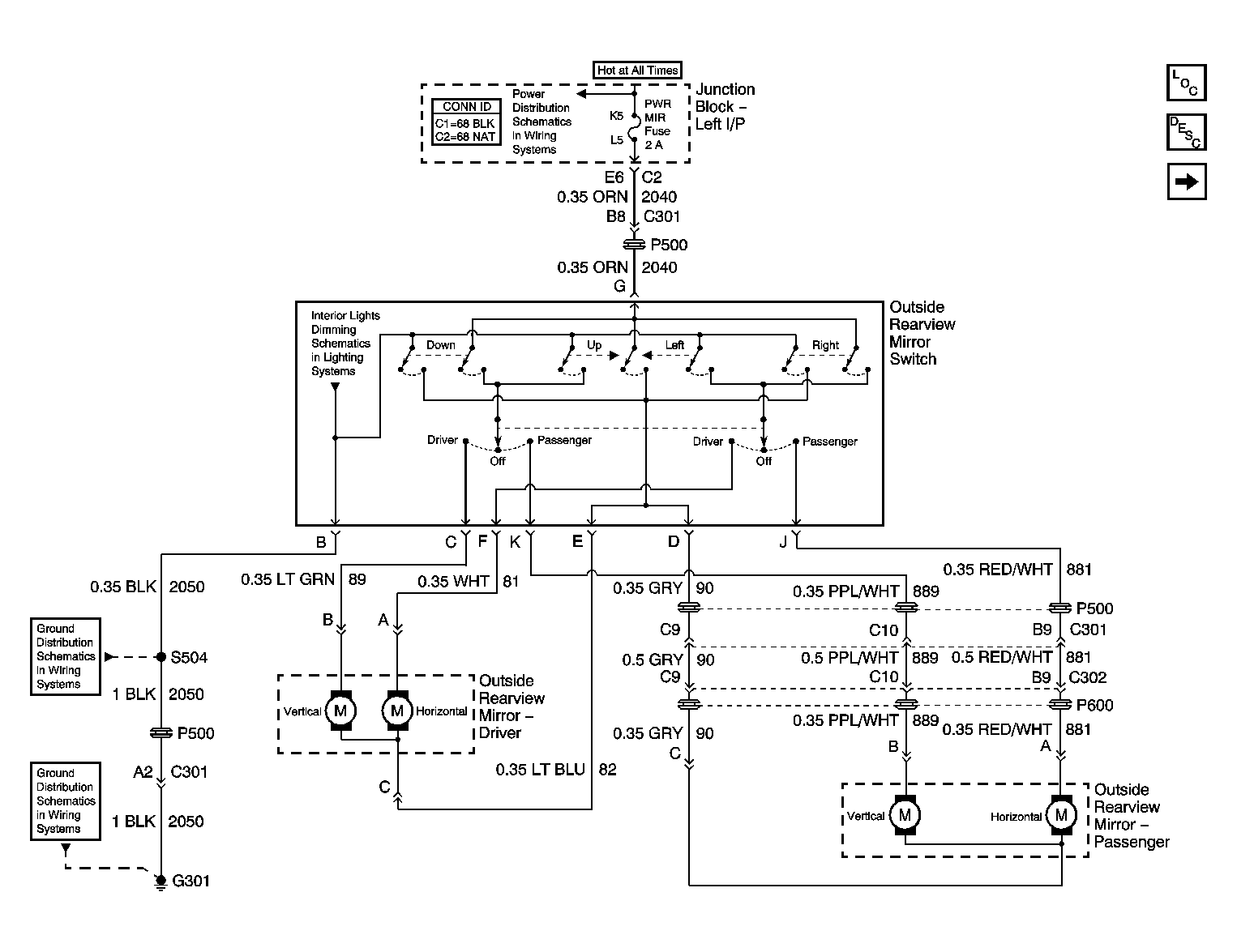

Fig 1: Power Mirrors Schematic

GM798574

Courtesy of GENERAL MOTORS CORP.

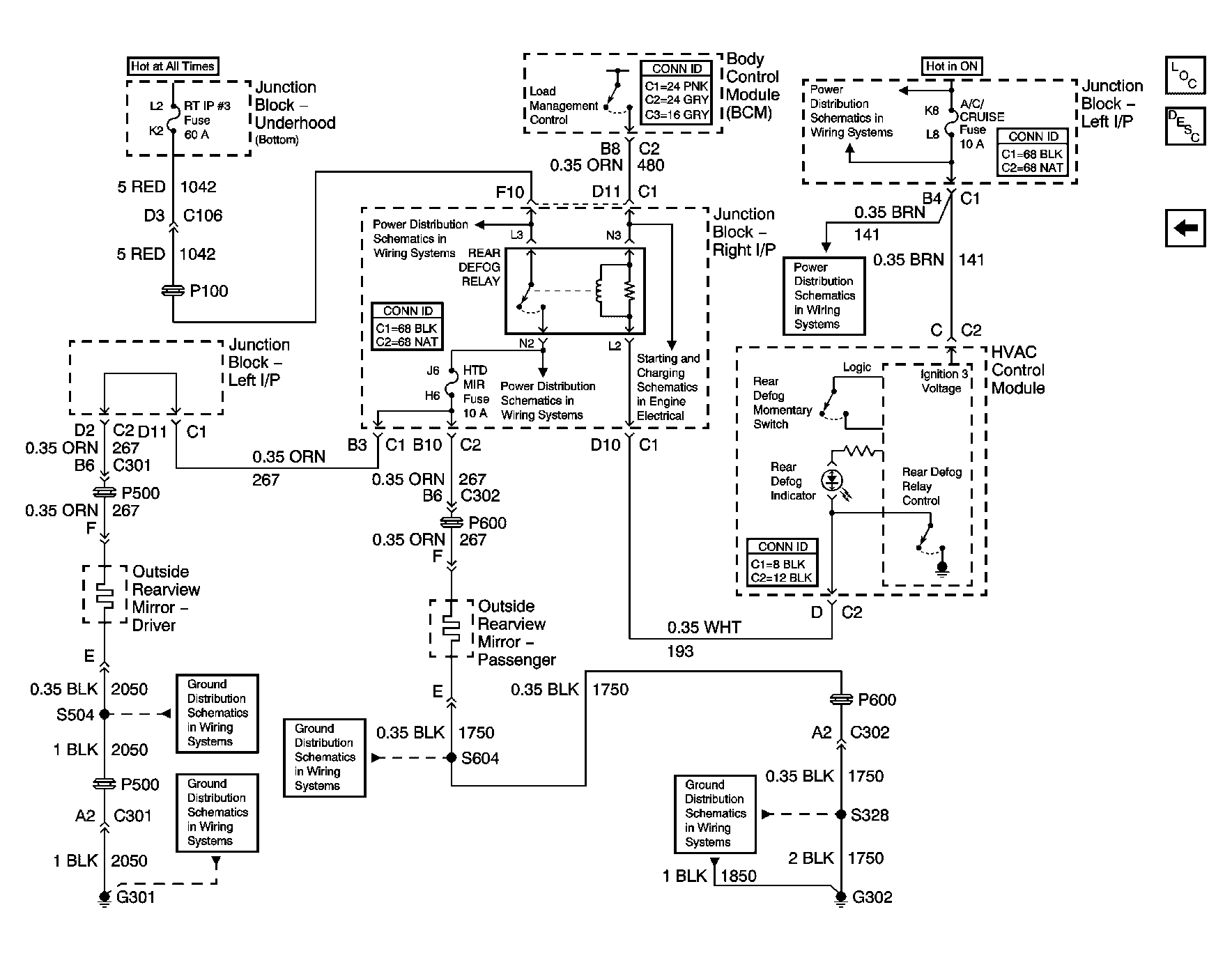

Fig 2: Heated Mirrors Schematic (DK5)

GM798575

Courtesy of GENERAL MOTORS CORP.
