Shim Size Specifications

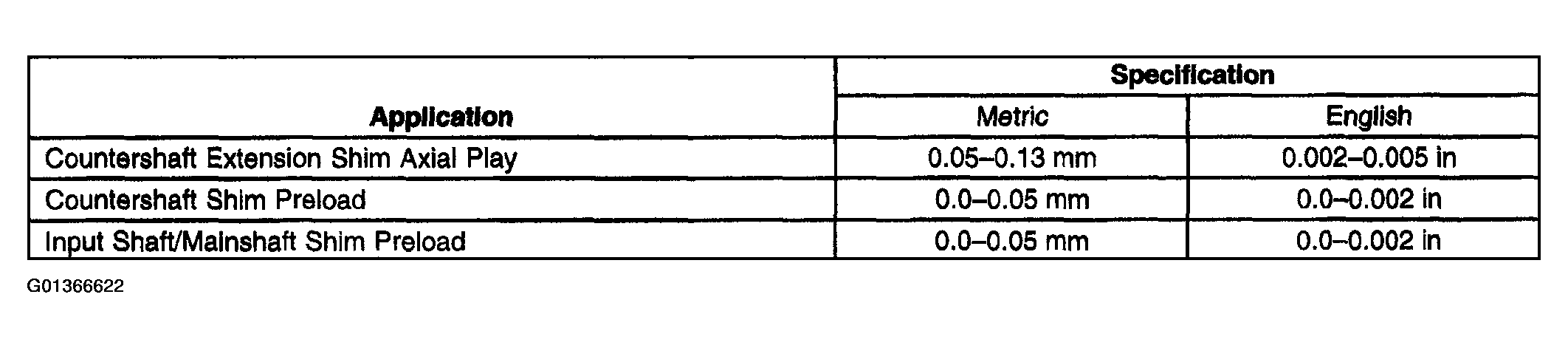

Fig 1: Shim Size Specifications

G01366622

Courtesy of GENERAL MOTORS CORP.
