Synchronizers Disassemble: Notes

1st/2nd, 3rd/4th, 5th/6th Synchronizers

Important:  Synchronizer components are not interchangeable. Keep all the synchronizer components separate. The synchronizer hubs and the sliding sleeves are a selected assembly. Keep the hubs and the sliding sleeves together as originally assembled.

1. Scribe a mark on the synchronizer hub and on the sleeve. This will help you to reinstall the parts in the same position.
   Fig 1: Locating Mark On Synchronizer Hub & Sleeve

   Courtesy of GENERAL MOTORS CORP.
2. Remove the synchronizer springs. Use a small-bladed screwdriver.

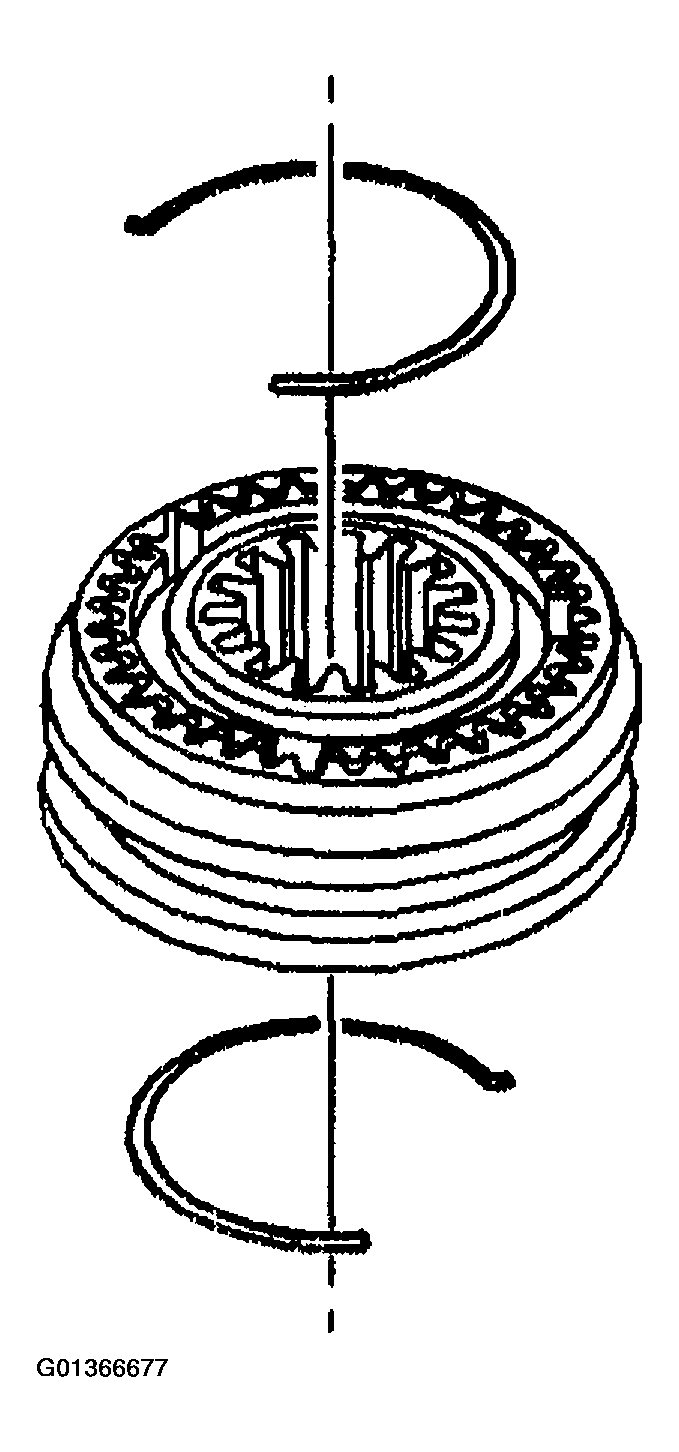

   Fig 2: Removing Synchronizer Springs

   Courtesy of GENERAL MOTORS CORP.
3. Remove the synchronizer sleeve and the keys from the hub.

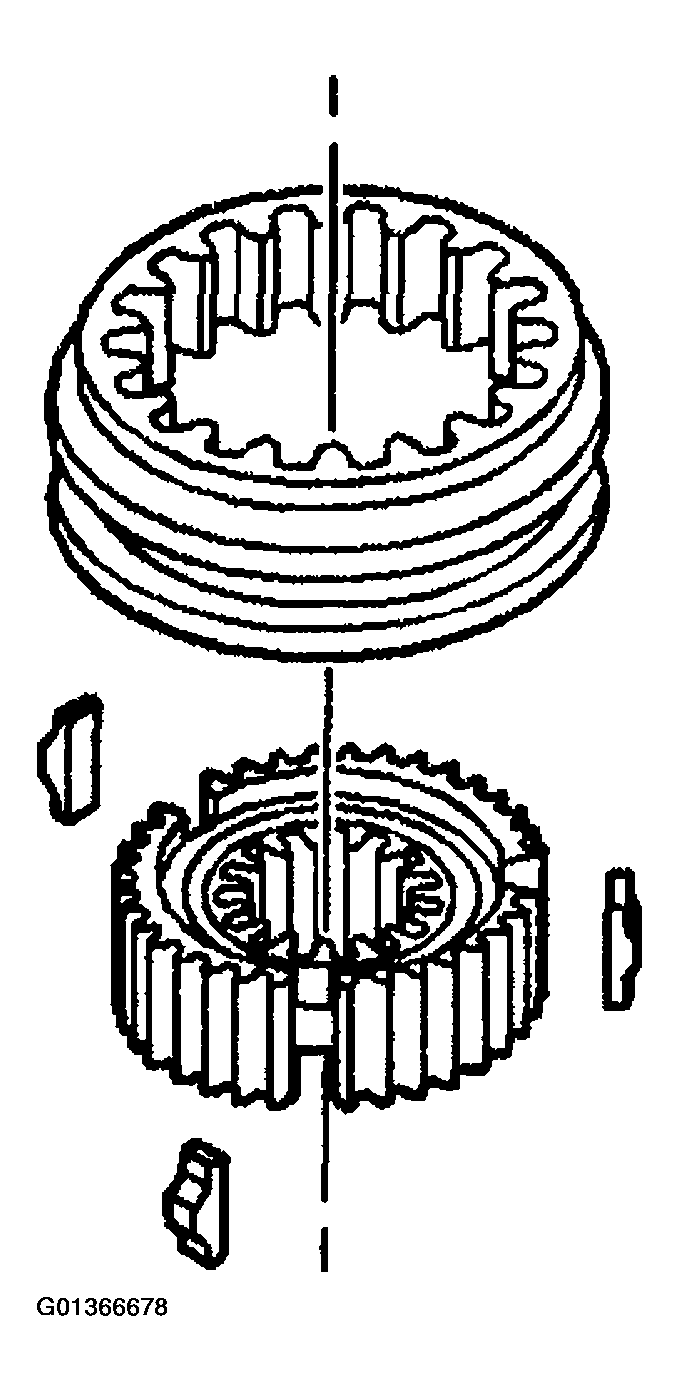

   Fig 3: Removing Synchronizer Sleeve & Keys From Hub

   Courtesy of GENERAL MOTORS CORP.
