Exploded View Of Reverse Lockout Components

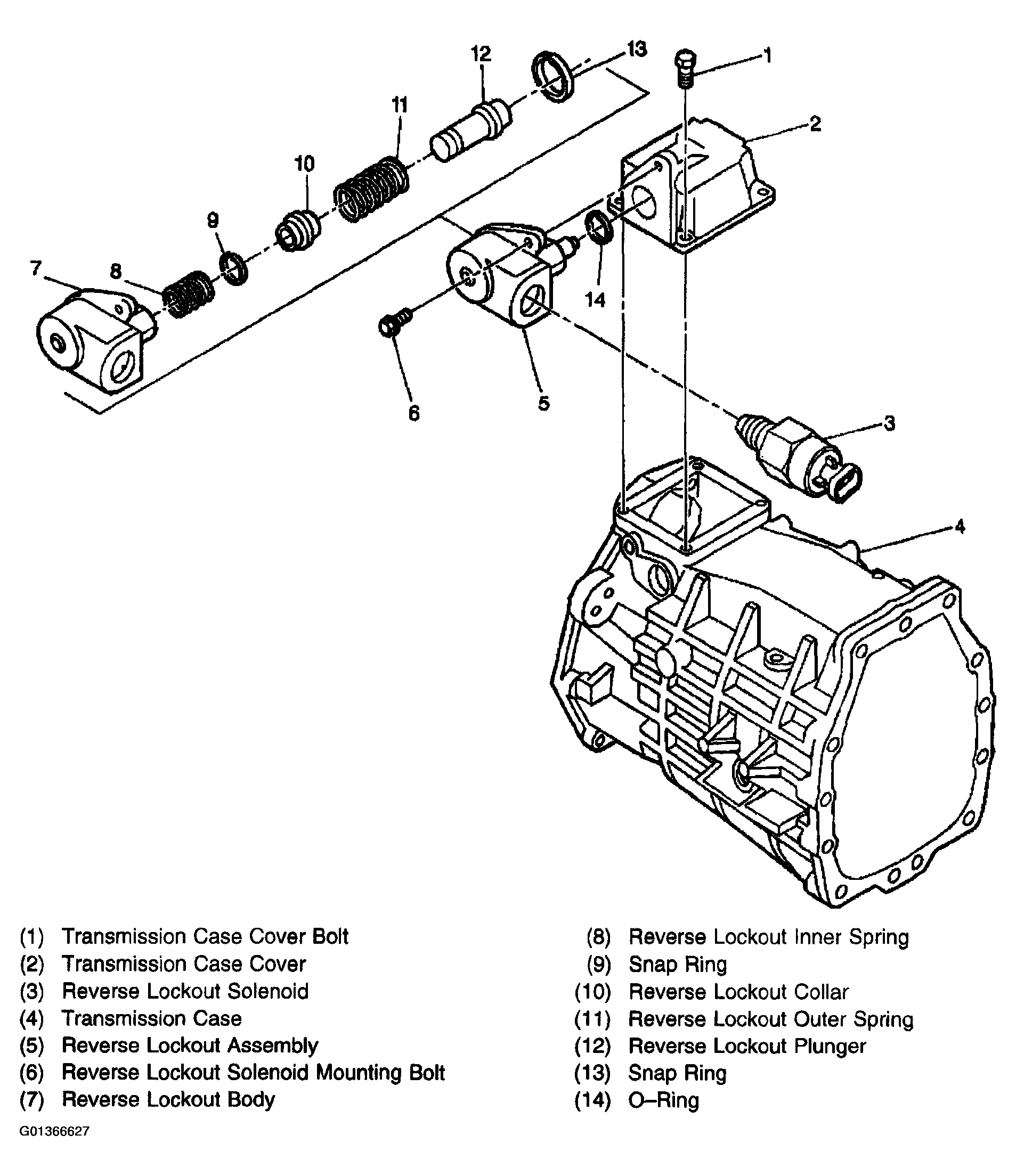

Fig 1: Exploded View Of Reverse Lockout Components

G01366627

Courtesy of GENERAL MOTORS CORP.
