Exploded View Of Extension Housing Components

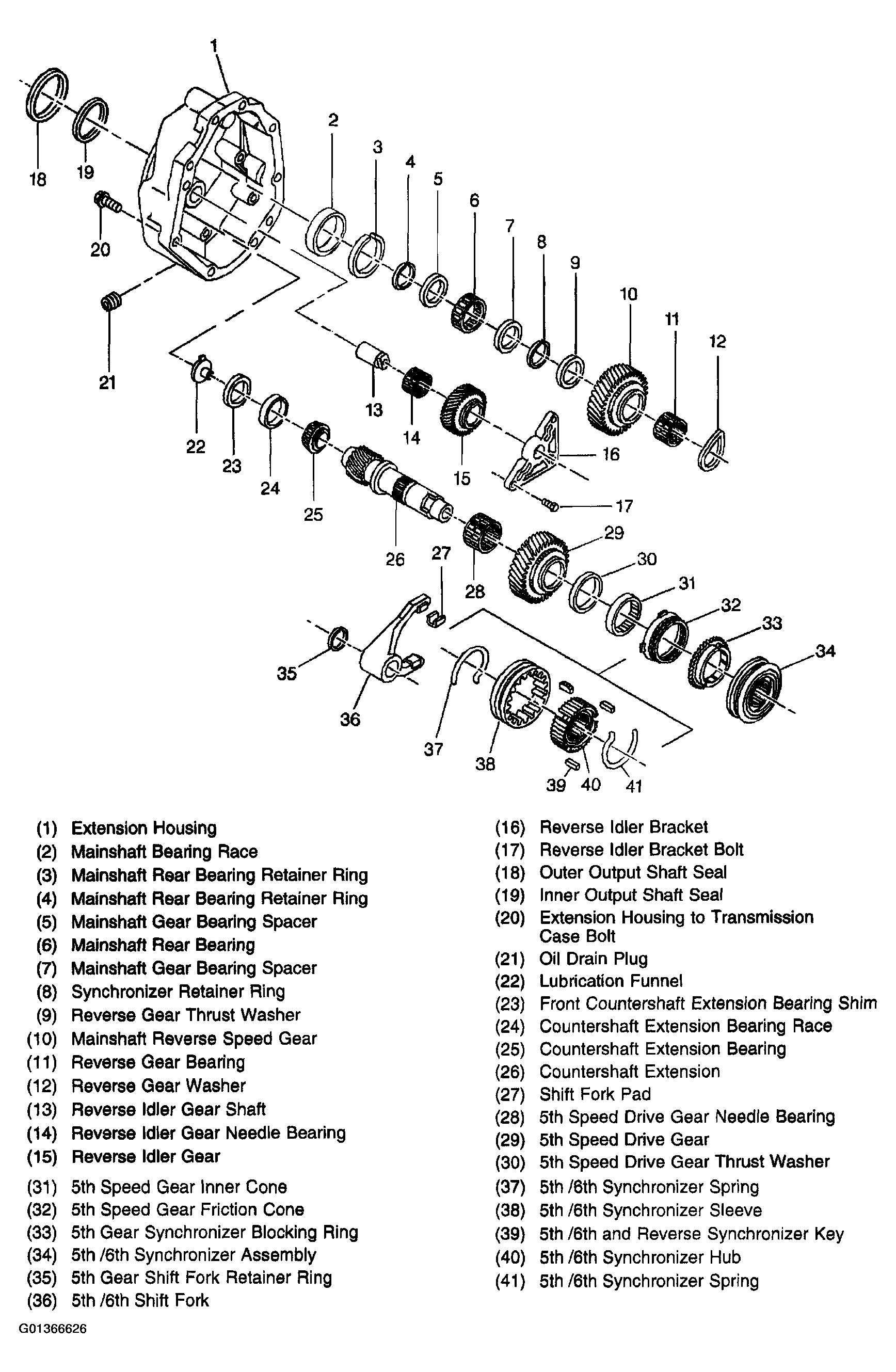

Fig 1: Exploded View Of Extension Housing Components

G01366626

Courtesy of GENERAL MOTORS CORP.
