Schematic and Routing Diagrams

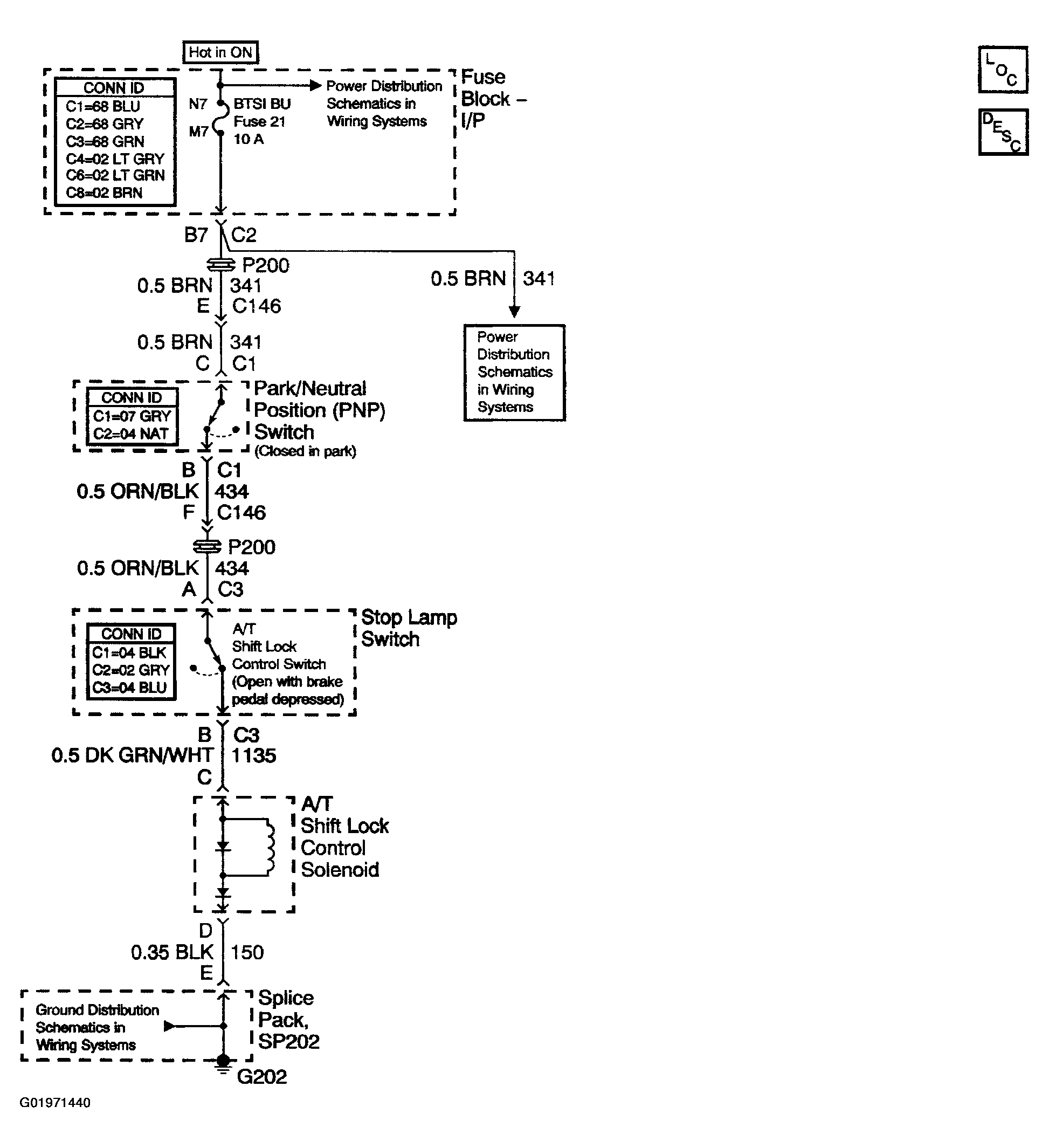

Fig 1: Automatic Transmission Shift Lock Control Schematics

G01971440

Courtesy of GENERAL MOTORS CORP.
