Installation Procedure

  1. Install the catalytic converter heat shield.
  2. Install new catalytic converter heat shield rivets.
  3. Install the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT .

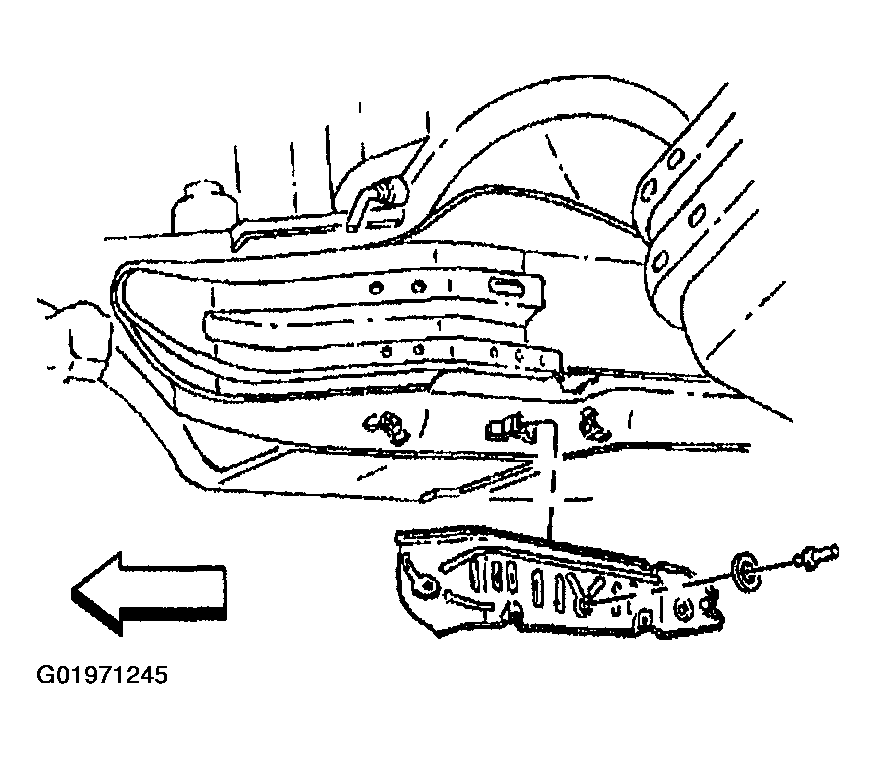

    Fig 1: Catalytic Converter Heat Shield
    G01971245Courtesy of GENERAL MOTORS CORP.
