Power Steering Fluid Leaks

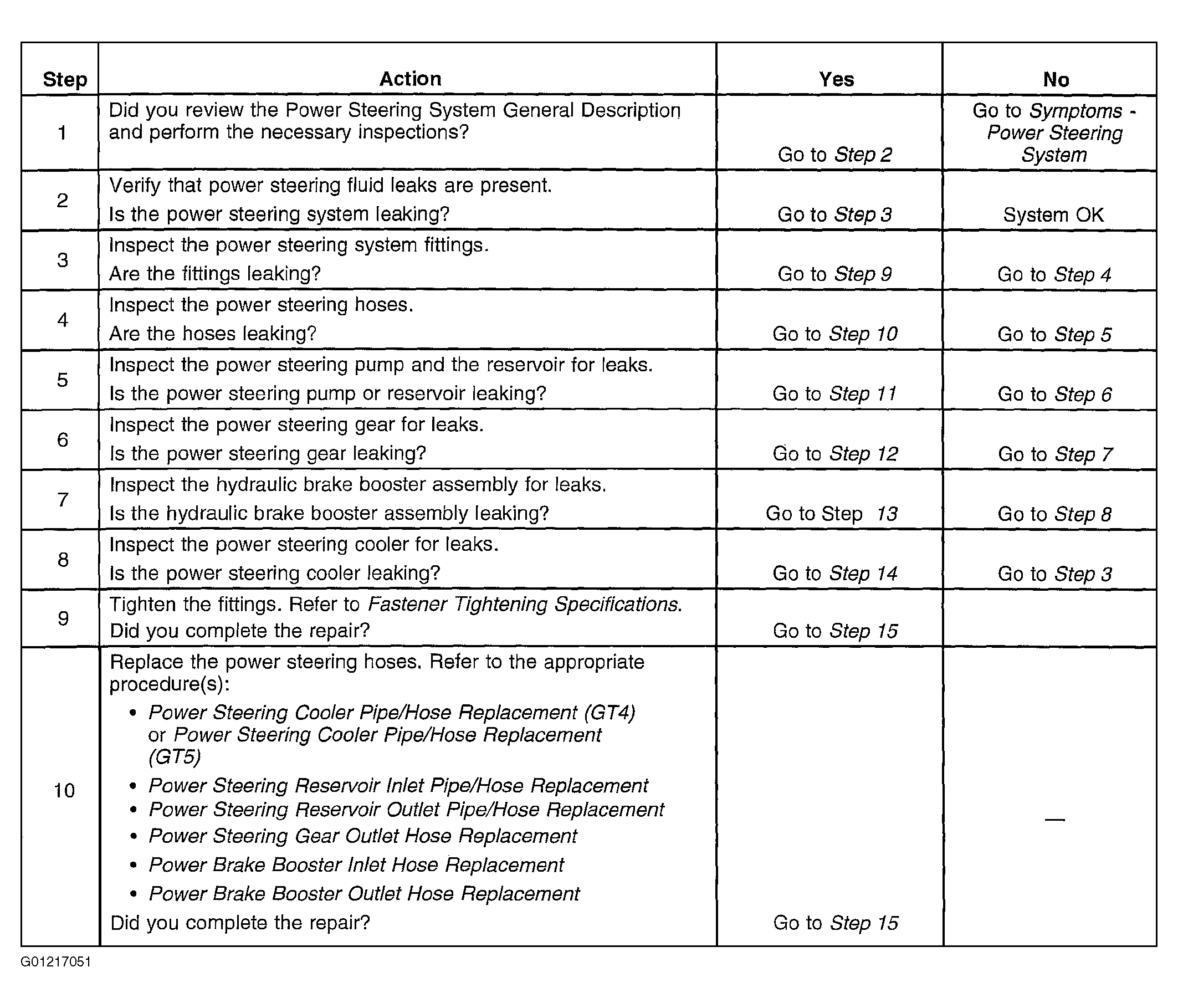

Fig 1: Power Steering Fluid Leaks (1 Of 2)

G01217051

Courtesy of GENERAL MOTORS CORP.

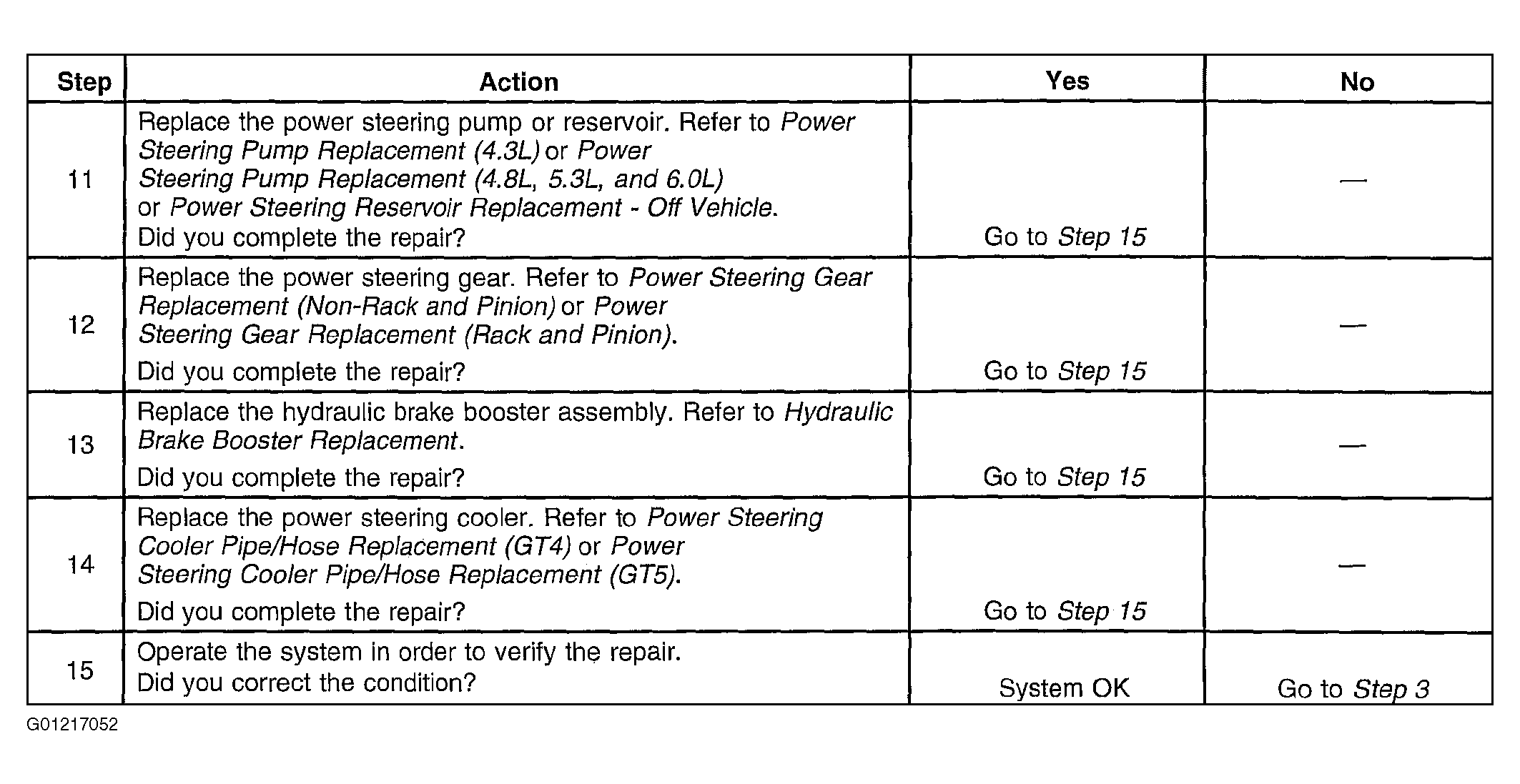

Fig 2: Power Steering Fluid Leaks (2 Of 2)

G01217052

Courtesy of GENERAL MOTORS CORP.
