Power Steering Pump Disassembled View

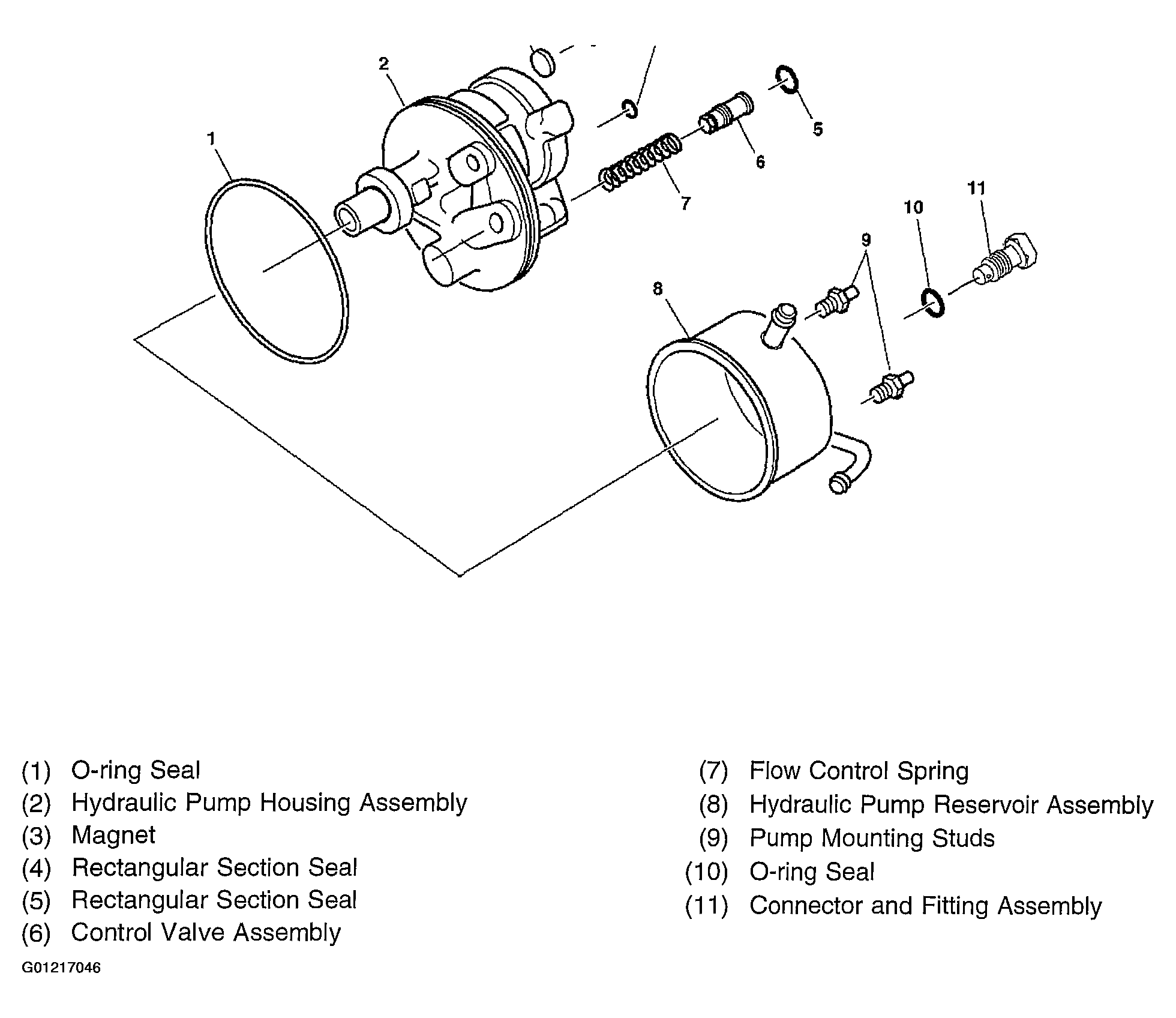

Fig 1: Power Steering Pump

G01217046

Courtesy of GENERAL MOTORS CORP.
