Fuel Gauge Select Switch Connector End View

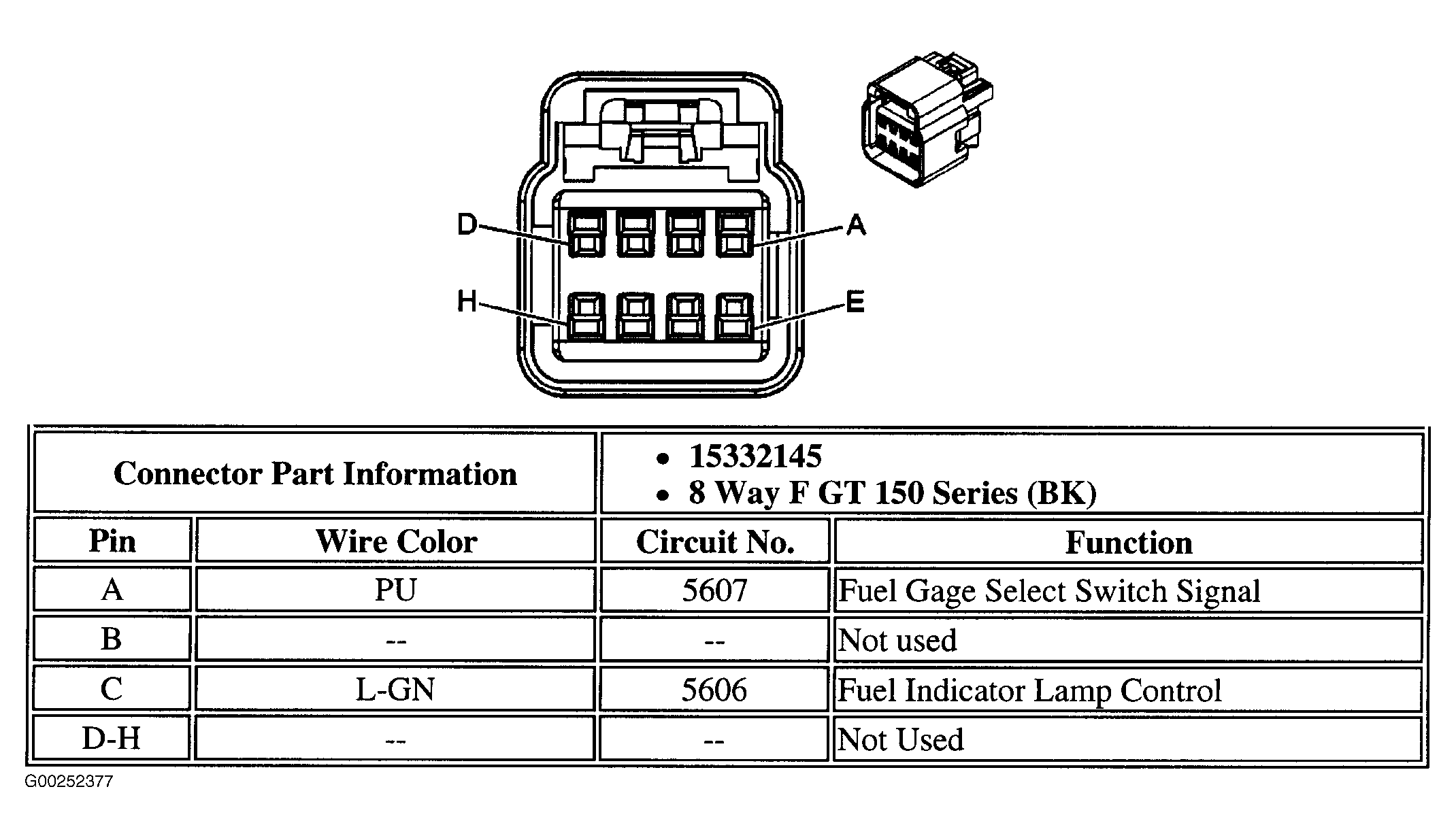

Fig 1: Fuel Gauge Select Switch Connector End View

G00252377

Courtesy of GENERAL MOTORS CORP.
