Installation Procedure

  1. Install the side door upper striker (1) to the door opening.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2) that retain the side door upper striker (1) to the door opening.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

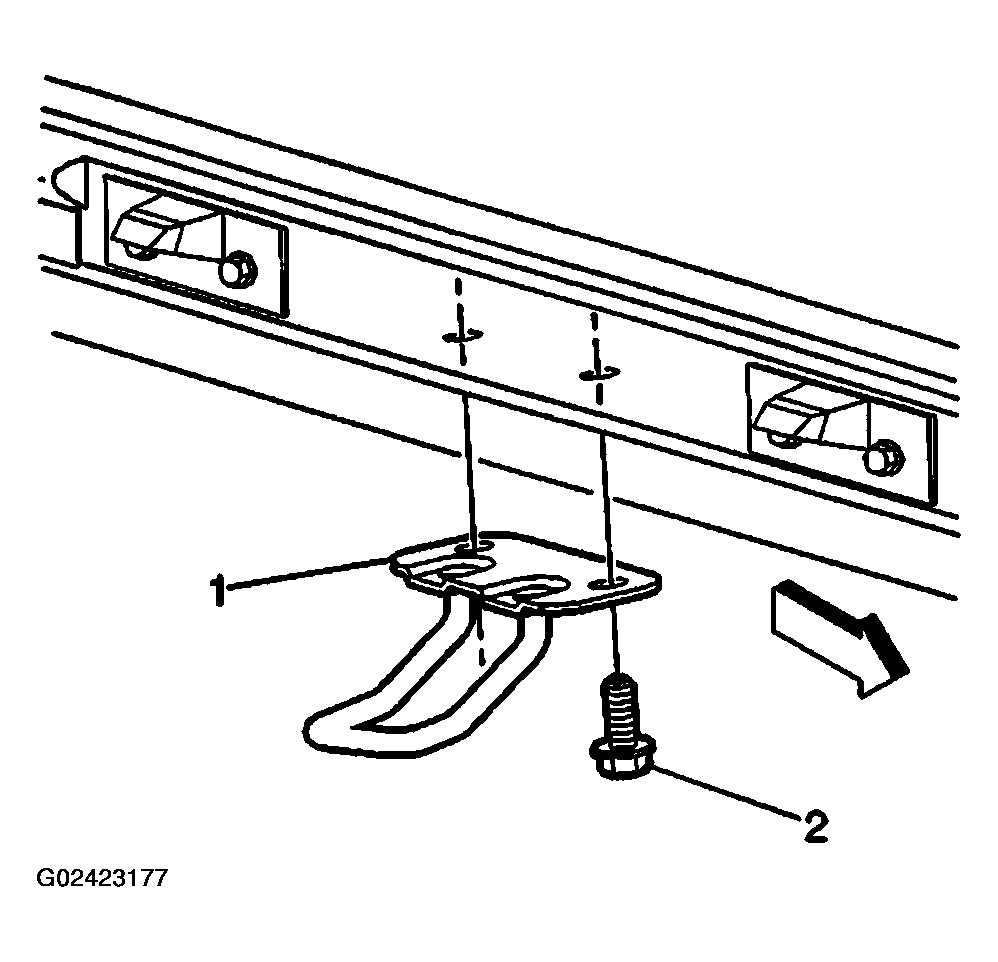

    Fig 1: Installing Side Door Upper Striker
    G02423177Courtesy of GENERAL MOTORS CORP.
