Lock System Does Not Lock

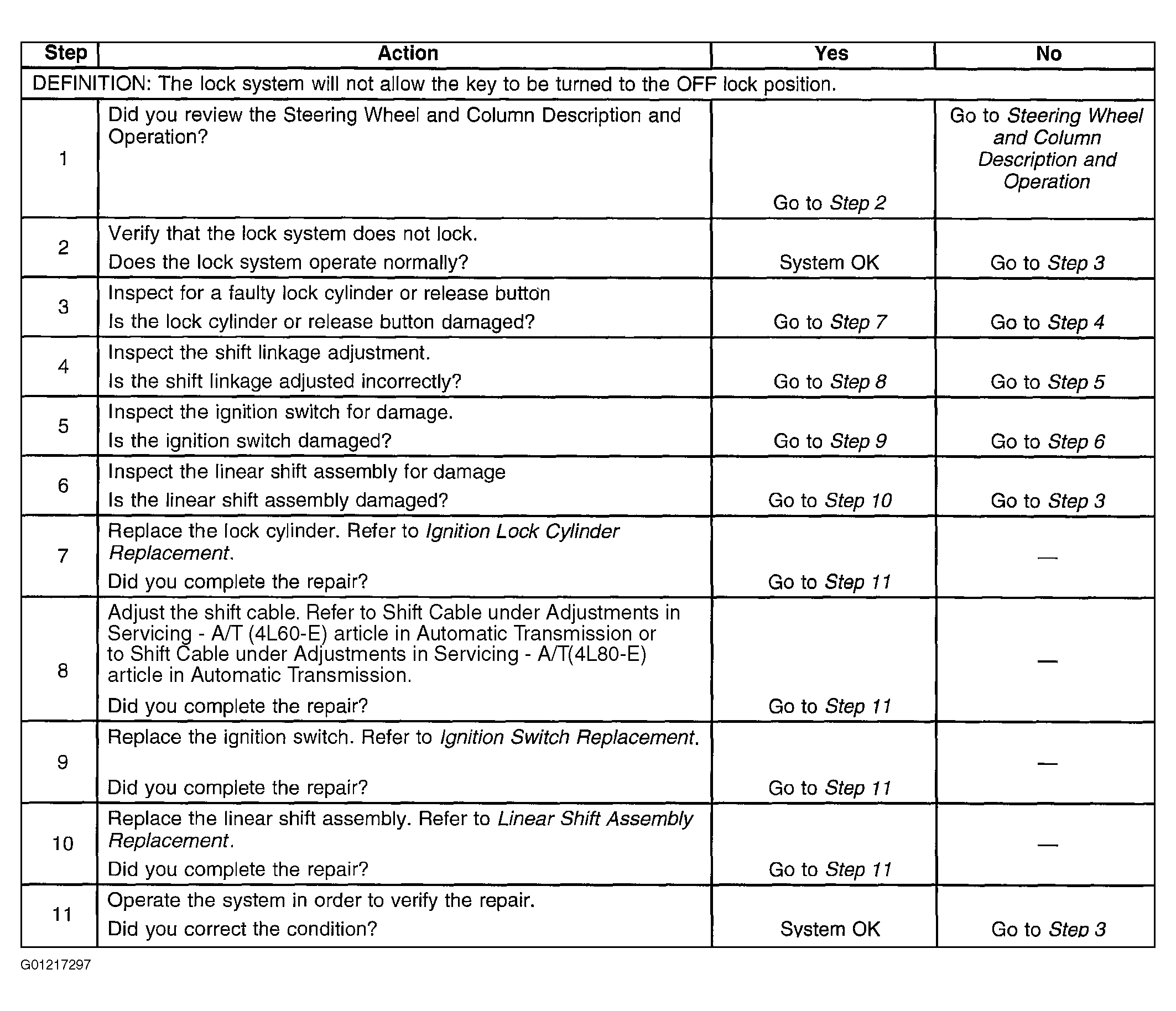

Fig 1: Lock System Does Not Lock

G01217297

Courtesy of GENERAL MOTORS CORP.
