Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Chevrolet
>>
2003
>>
Chevy Express G2500, Van Passenger Extended
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls Self Diagnostics - 4.8L, 5.3L & 6.0L Gasoline
>>
Diagnostic Tests
>>
DTC P0325: Knock Sensor Module Circuit
>>
Diagnostic Procedure
Diagnostic Procedure

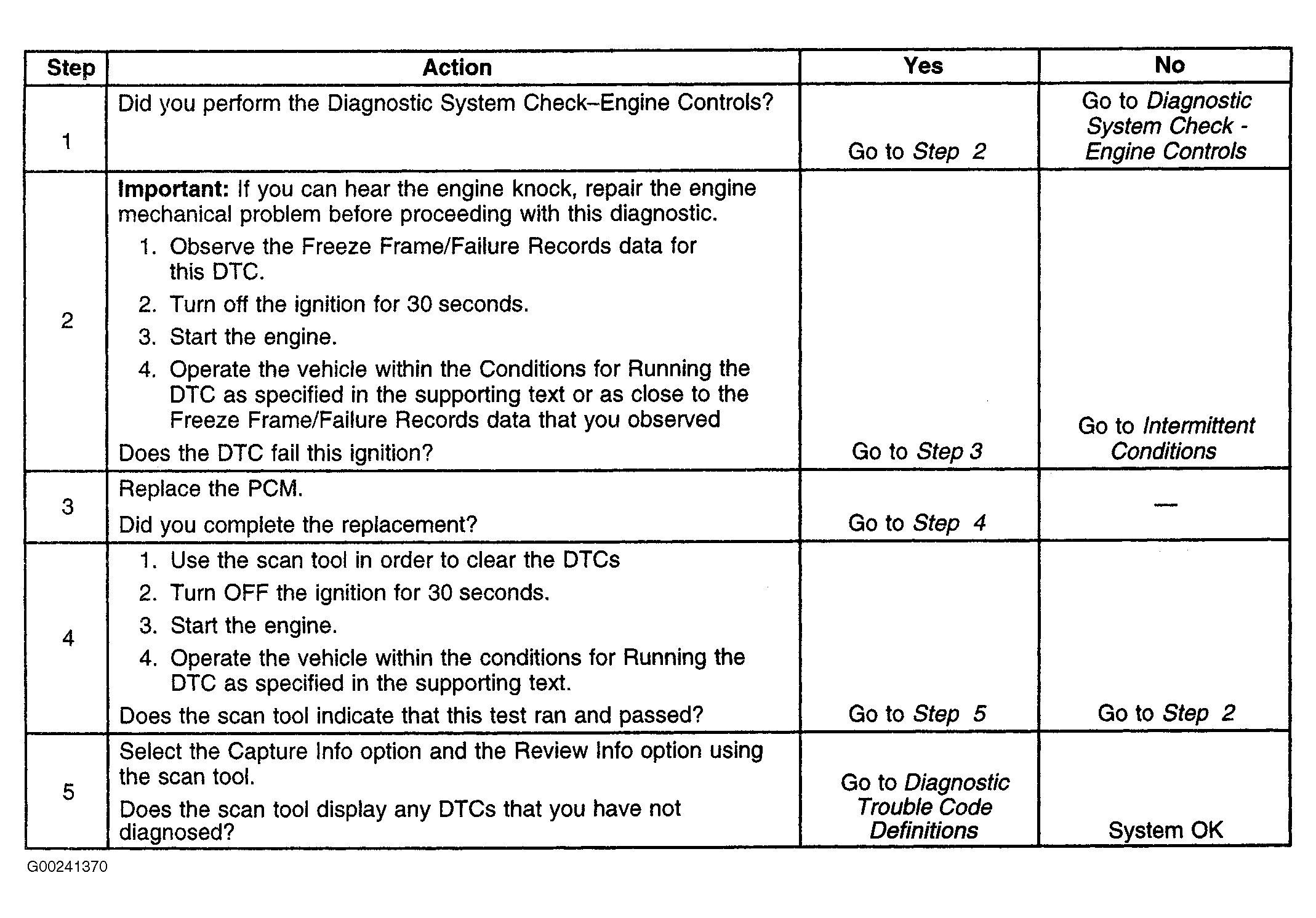

Fig 1: DTC P0325: Knock Sensor Module Circuit
Courtesy of GENERAL MOTORS CORP.
