Diagnostic Procedure

NOTE: Do not perform this diagnostic if there is not a driveability concern, unless another procedure directs you to this diagnostic. Before you proceed with diagnosis, search for applicable service bulletins. Unless a diagnostic procedure instructs you, DO NOT clear the DTCs. If there is a condition with the starting system, see appropriate STARTERS article in STARTING & CHARGING SYSTEMS. Ensure the battery has a full charge. Ensure the battery cables are clean and tight. Ensure the PCM grounds are clean, tight, and in the correct location.

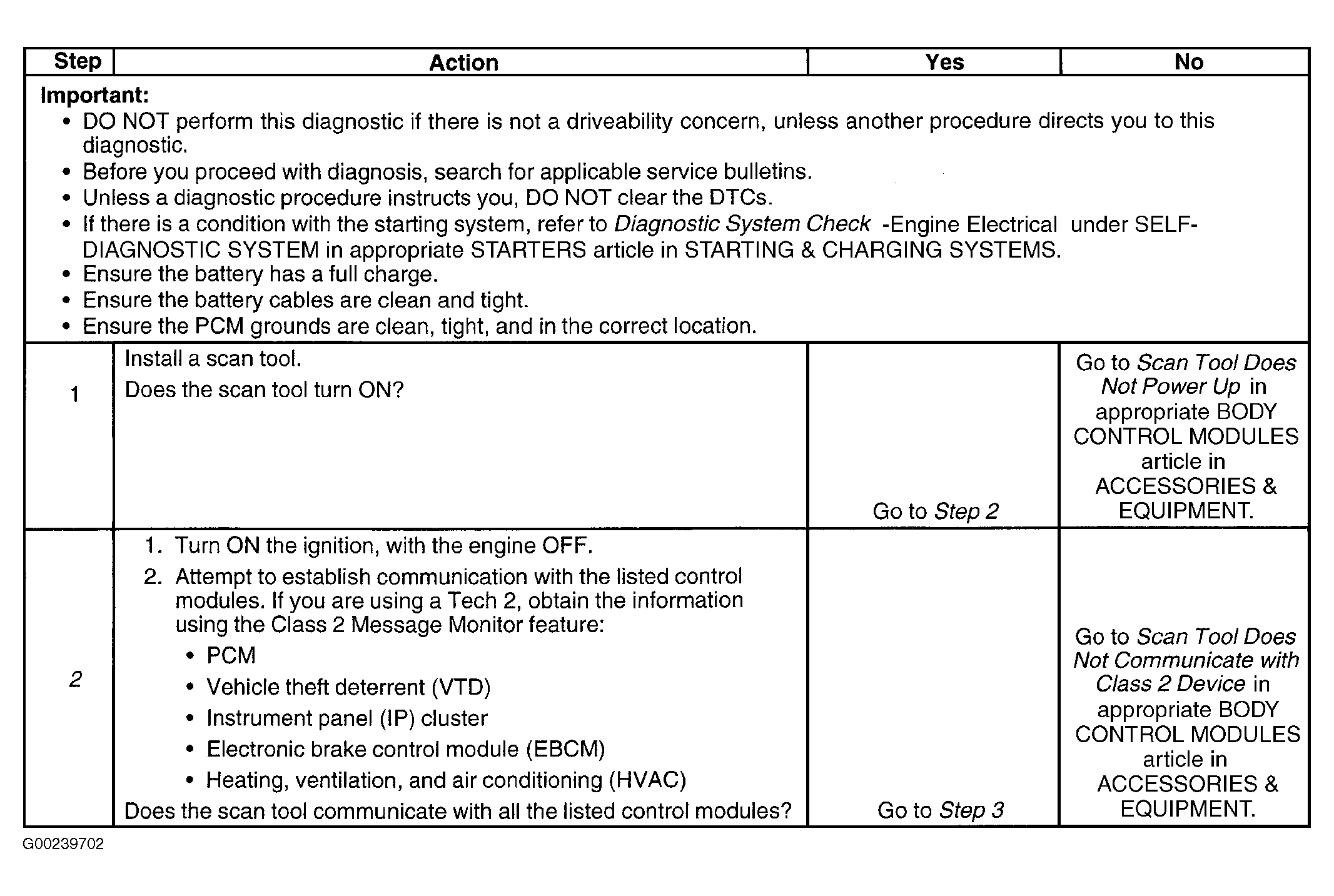

Fig 1: Diagnostic System Check - Engine Controls (1 Of 2)
G00239702Courtesy of GENERAL MOTORS CORP.

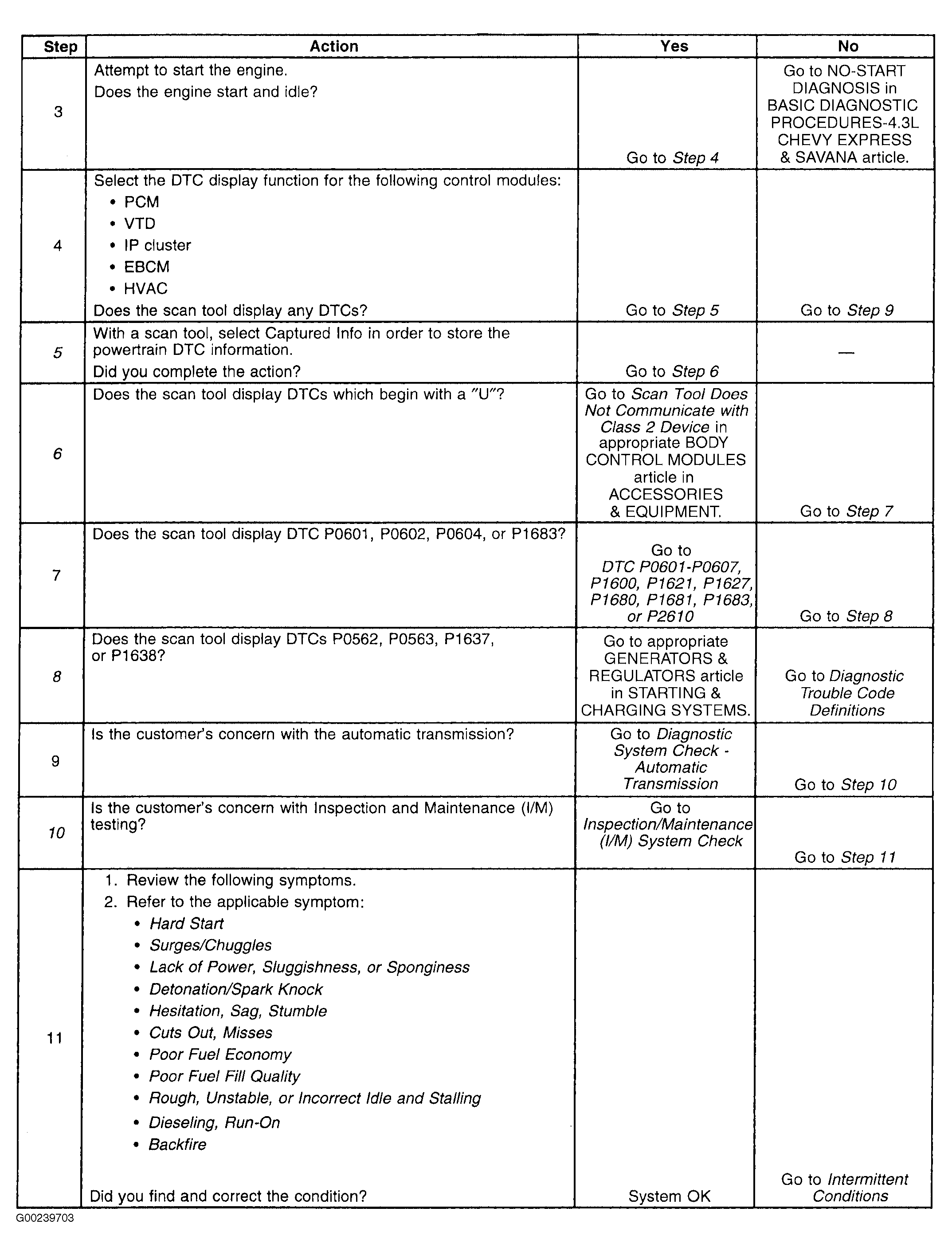

Fig 2: Diagnostic System Check - Engine Controls (2 Of 2)
G00239703Courtesy of GENERAL MOTORS CORP.
