Fuel Pump Electrical Circuit Diagnosis: Notes

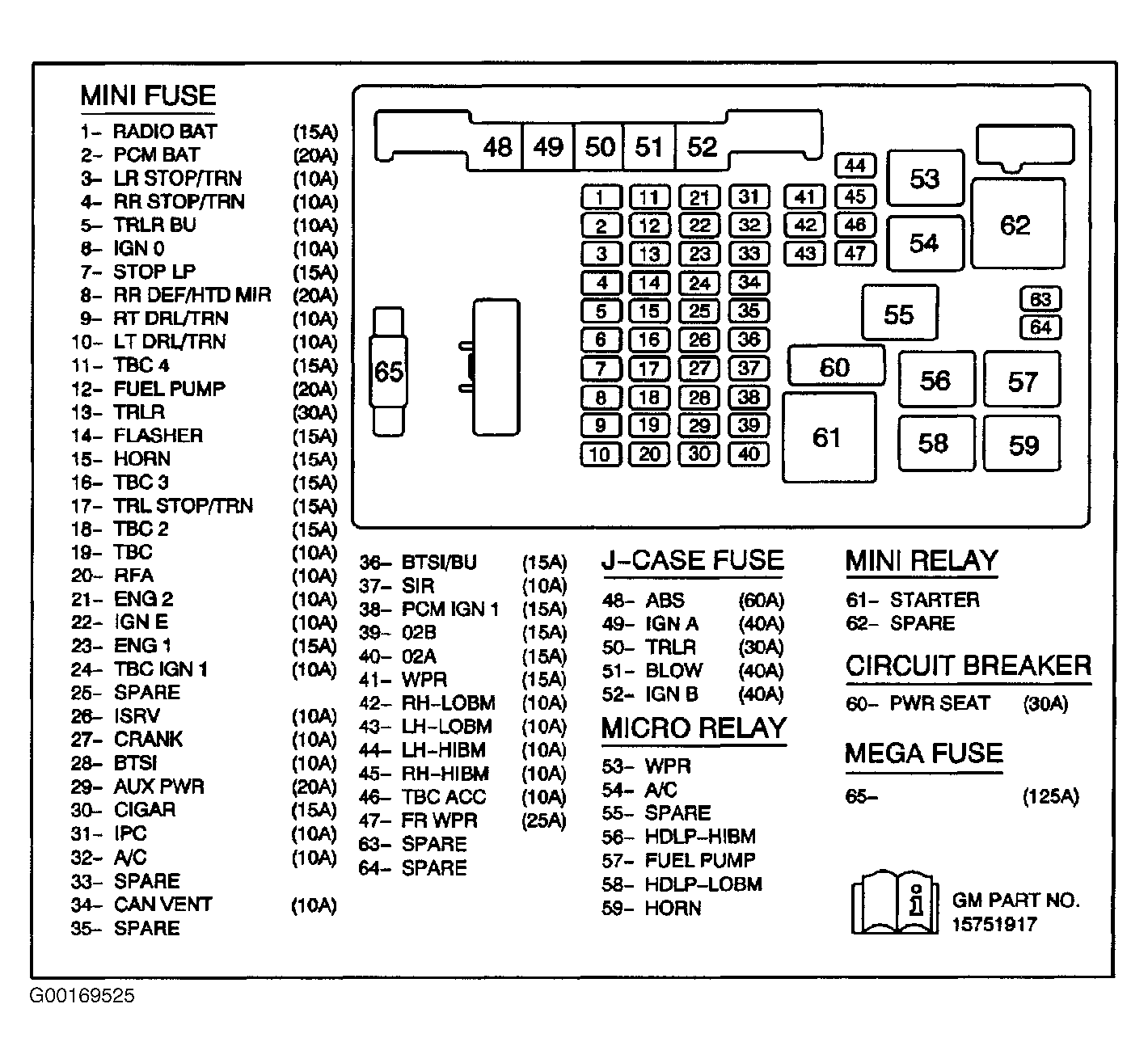

Fig 1: Identifying Underhood Fuse/Relay Block

G00169525

Courtesy of GENERAL MOTORS CORP.

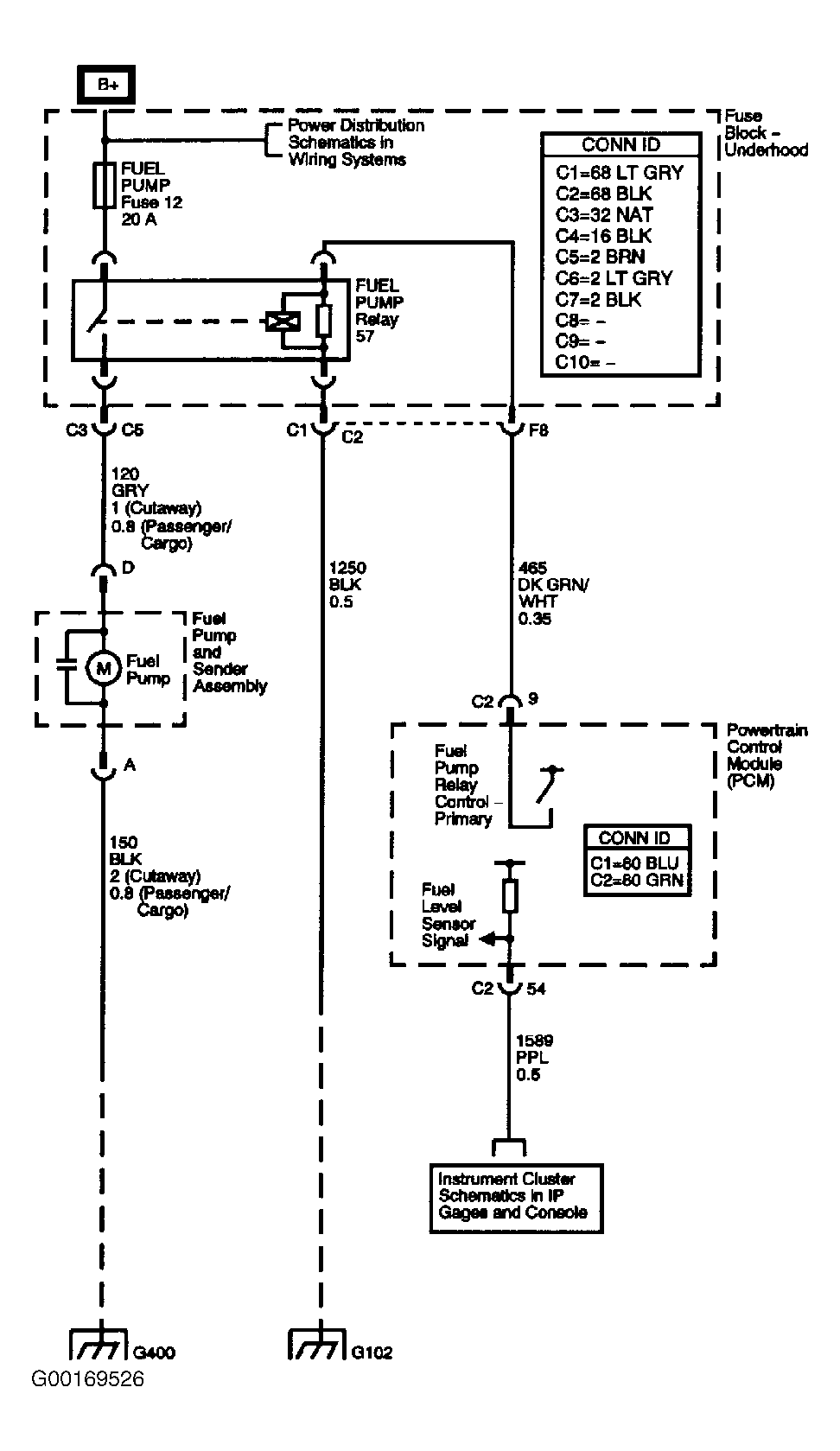

Fig 2: Fuel Pump Electrical Schematic

G00169526

Courtesy of GENERAL MOTORS CORP.
