Sunroof Control Module, C1 Connector End View (2 Of 2)

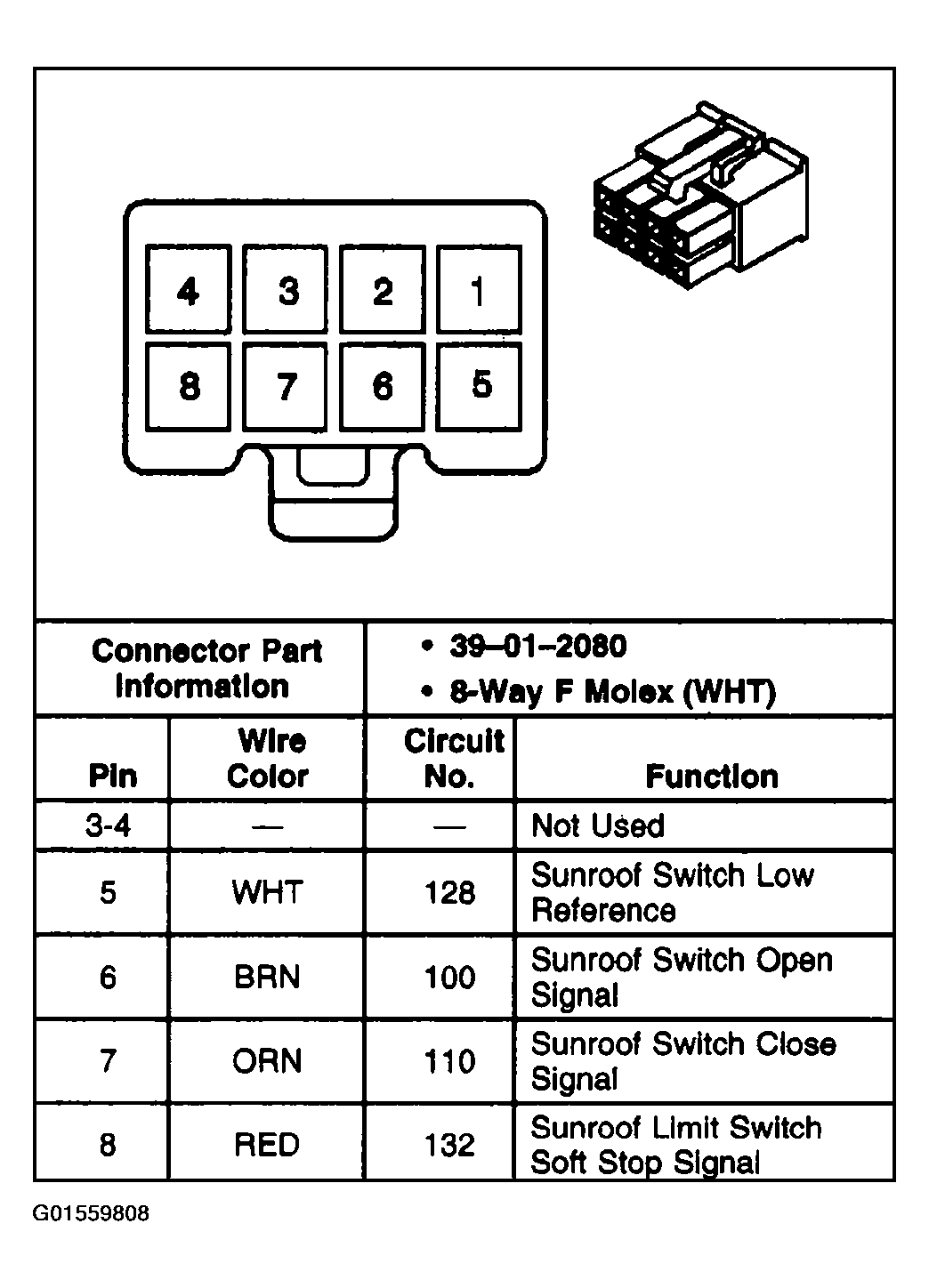

Fig 1: Sunroof Control Module, C1 Connector End View (2 Of 2)

G01559808

Courtesy of GENERAL MOTORS CORP.
