Recirculation Actuator Connector End View

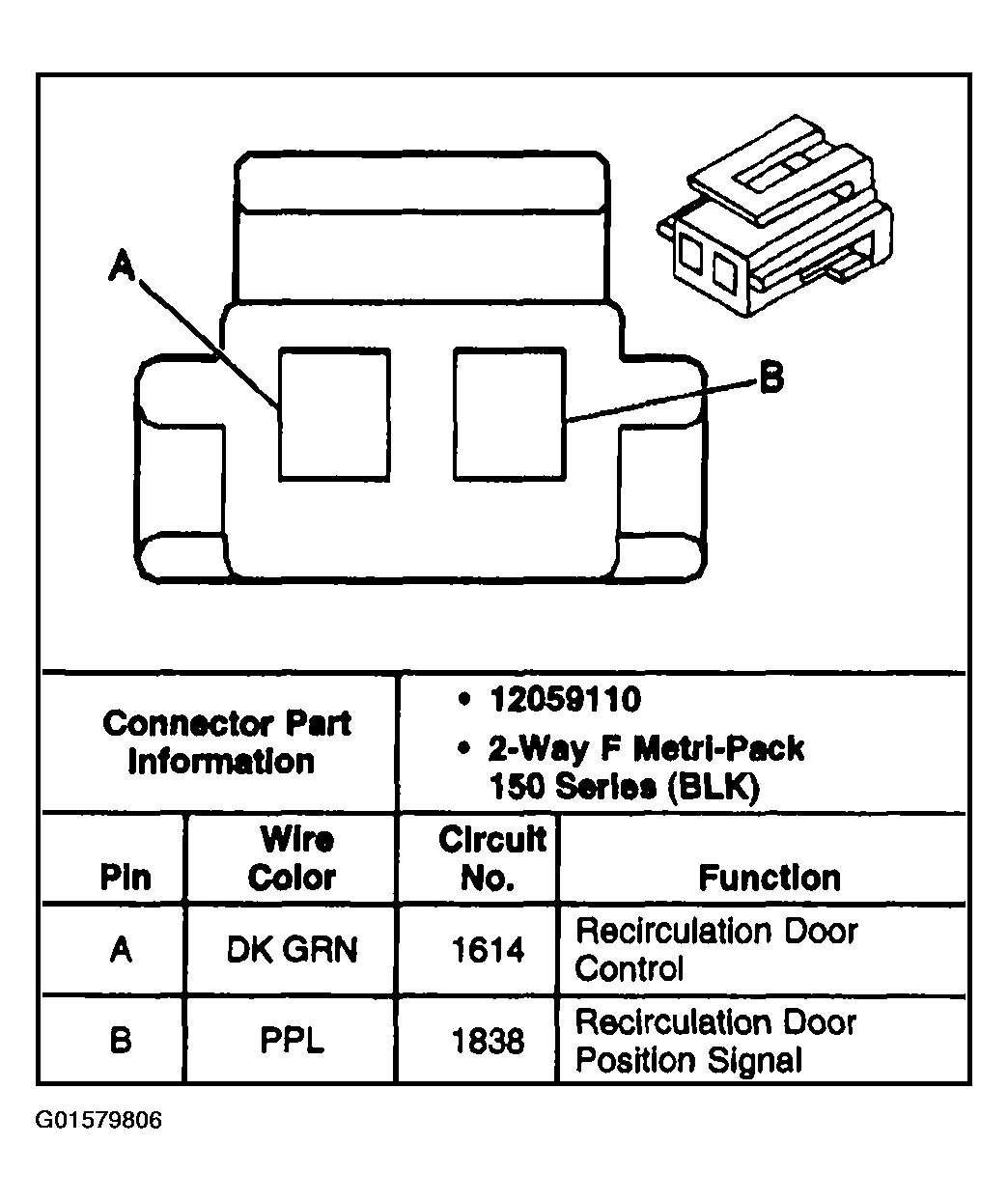

Fig 1: Recirculation Actuator Connector End View

G01579806

Courtesy of GENERAL MOTORS CORP.
