Input Speed Sensor Harness Connector End View

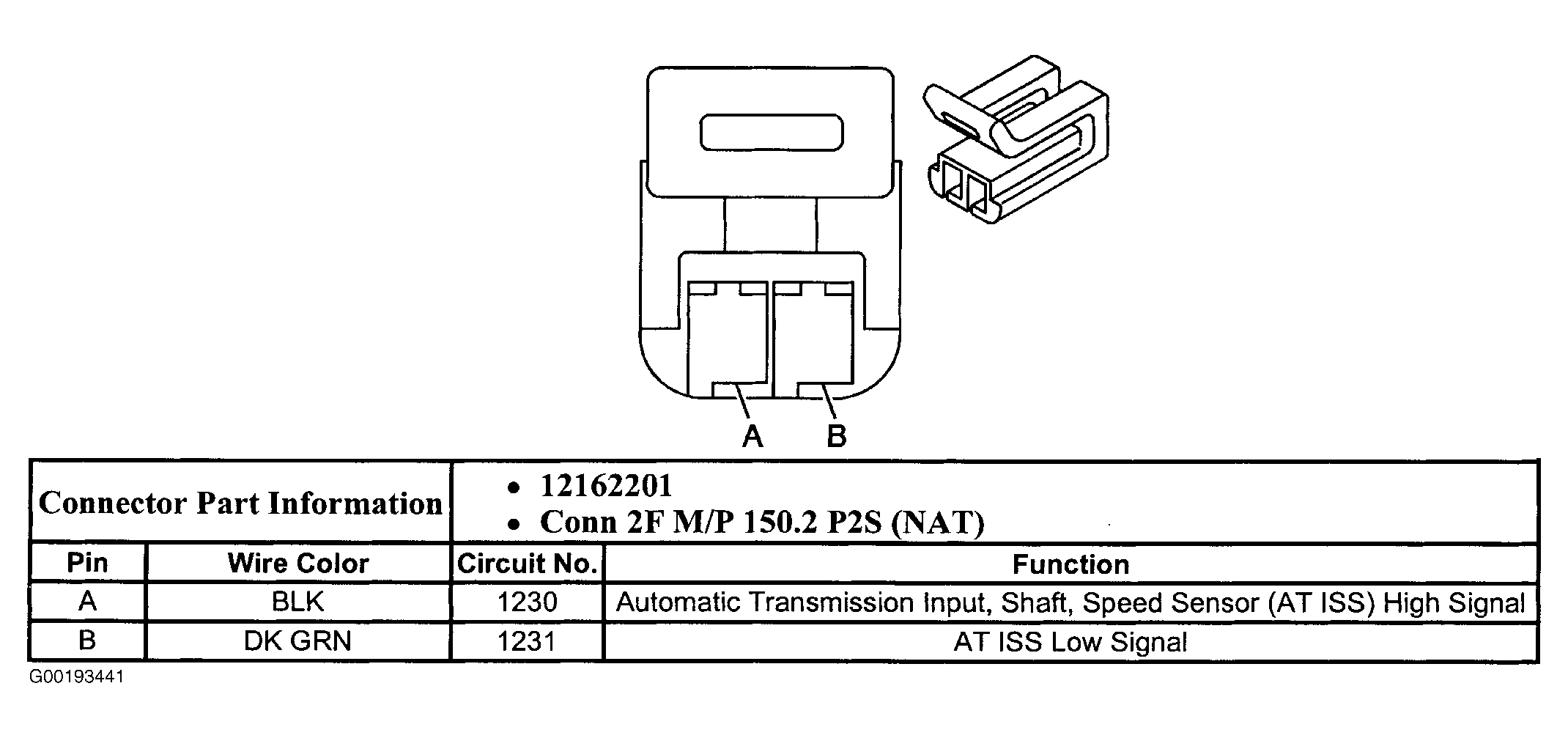

Fig 1: Input Speed Sensor Harness Connector End View

G00193441

Courtesy of GENERAL MOTORS CORP.
