Diagnostic Procedure

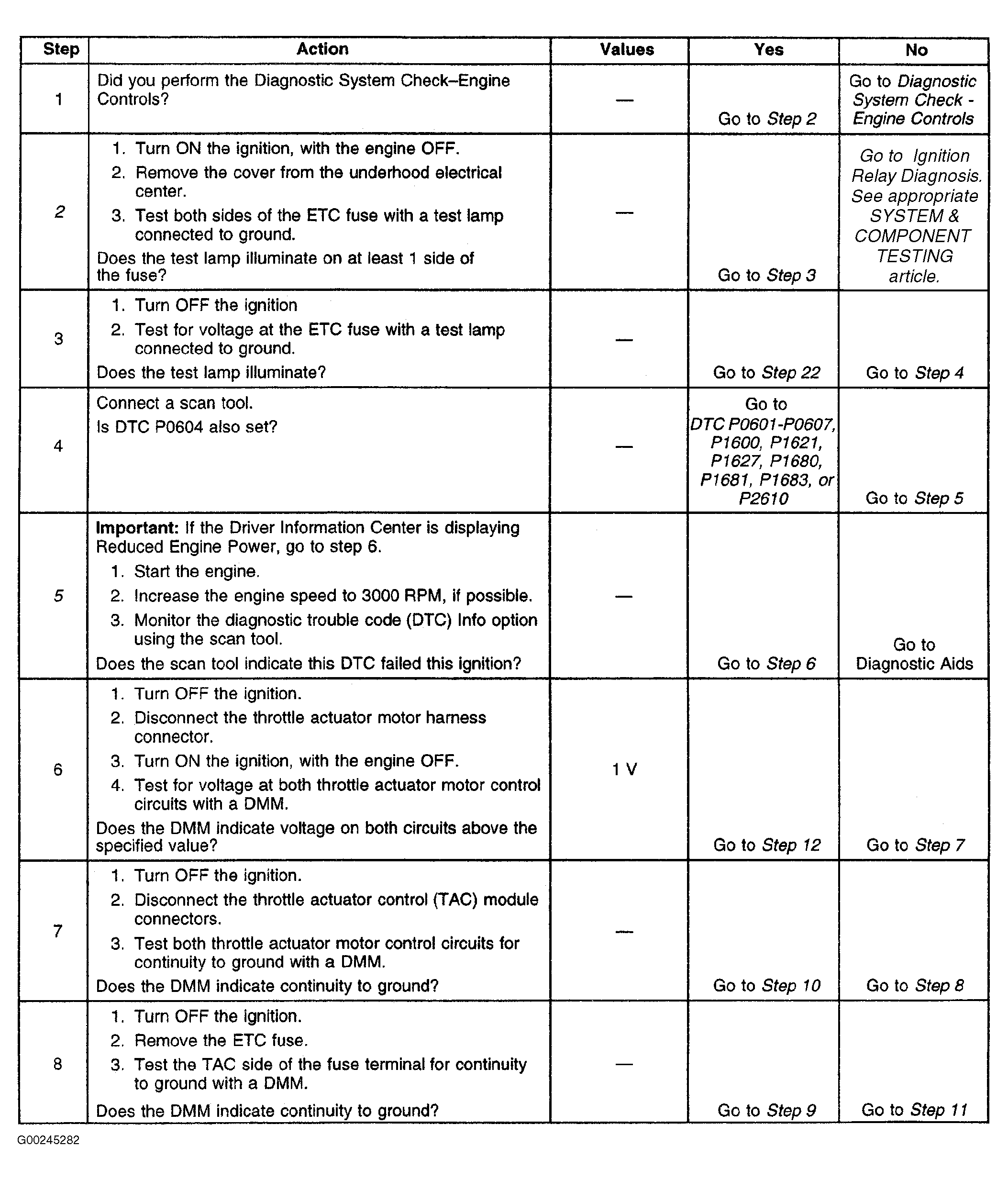

Fig 1: DTC P1518: Throttle Actuator Control Module Serial Data Fault (Steps 1-8)
G00245282Courtesy of GENERAL MOTORS CORP.

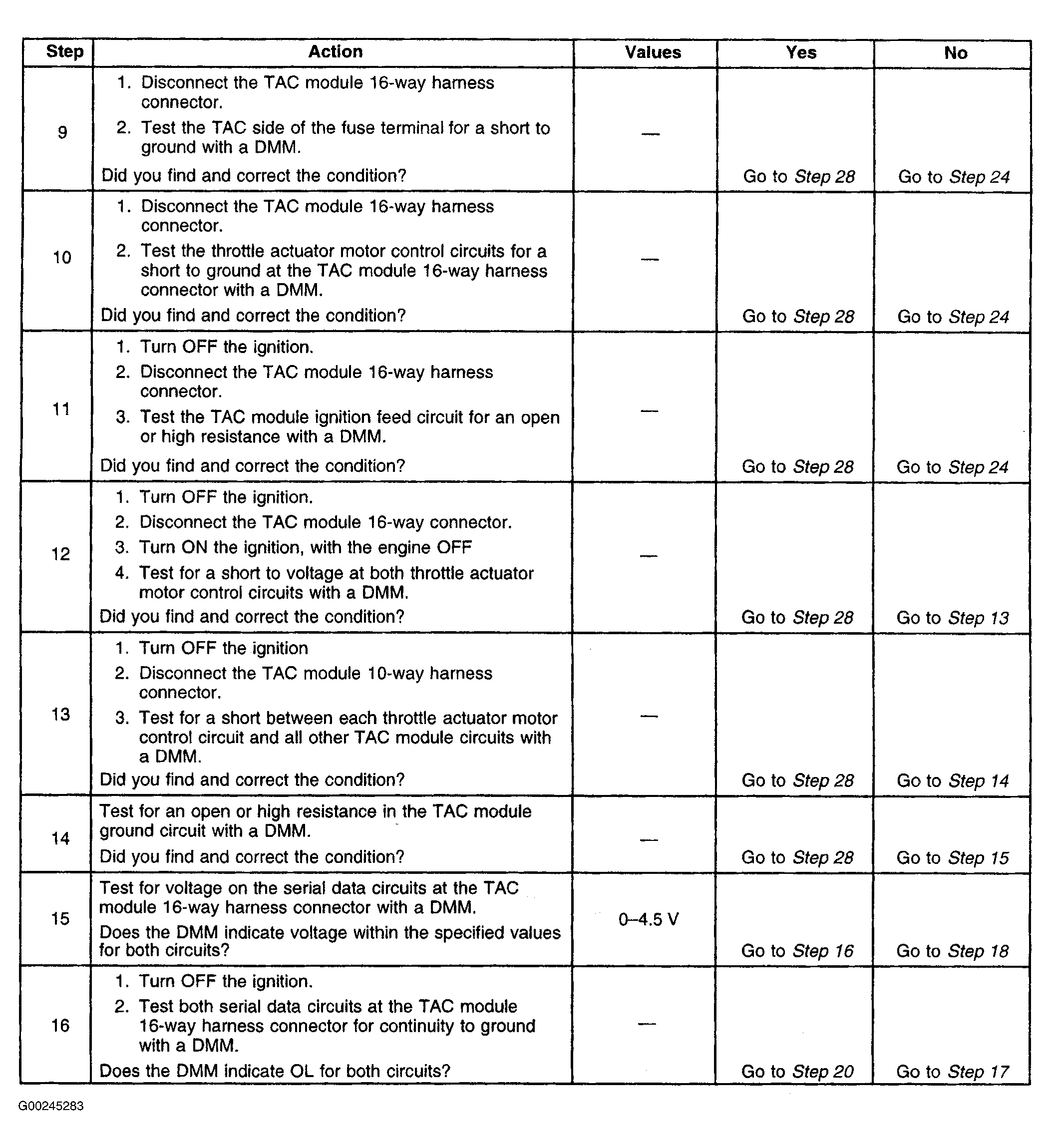

Fig 2: DTC P1518: Throttle Actuator Control Module Serial Data Fault (Steps 9-16)
G00245283Courtesy of GENERAL MOTORS CORP.

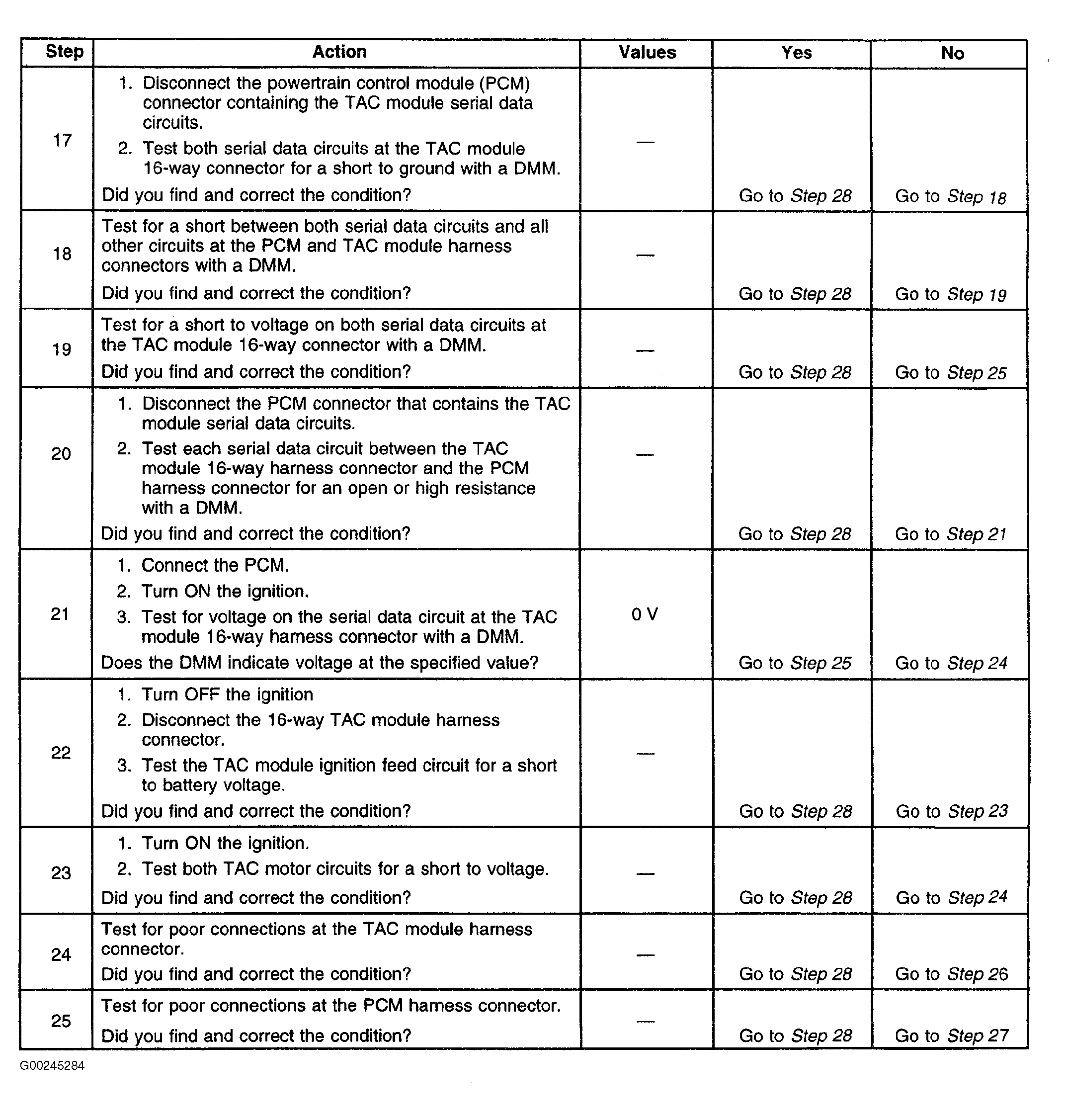

Fig 3: DTC P1518: Throttle Actuator Control Module Serial Data Fault (Steps 17-25)
G00245284Courtesy of GENERAL MOTORS CORP.

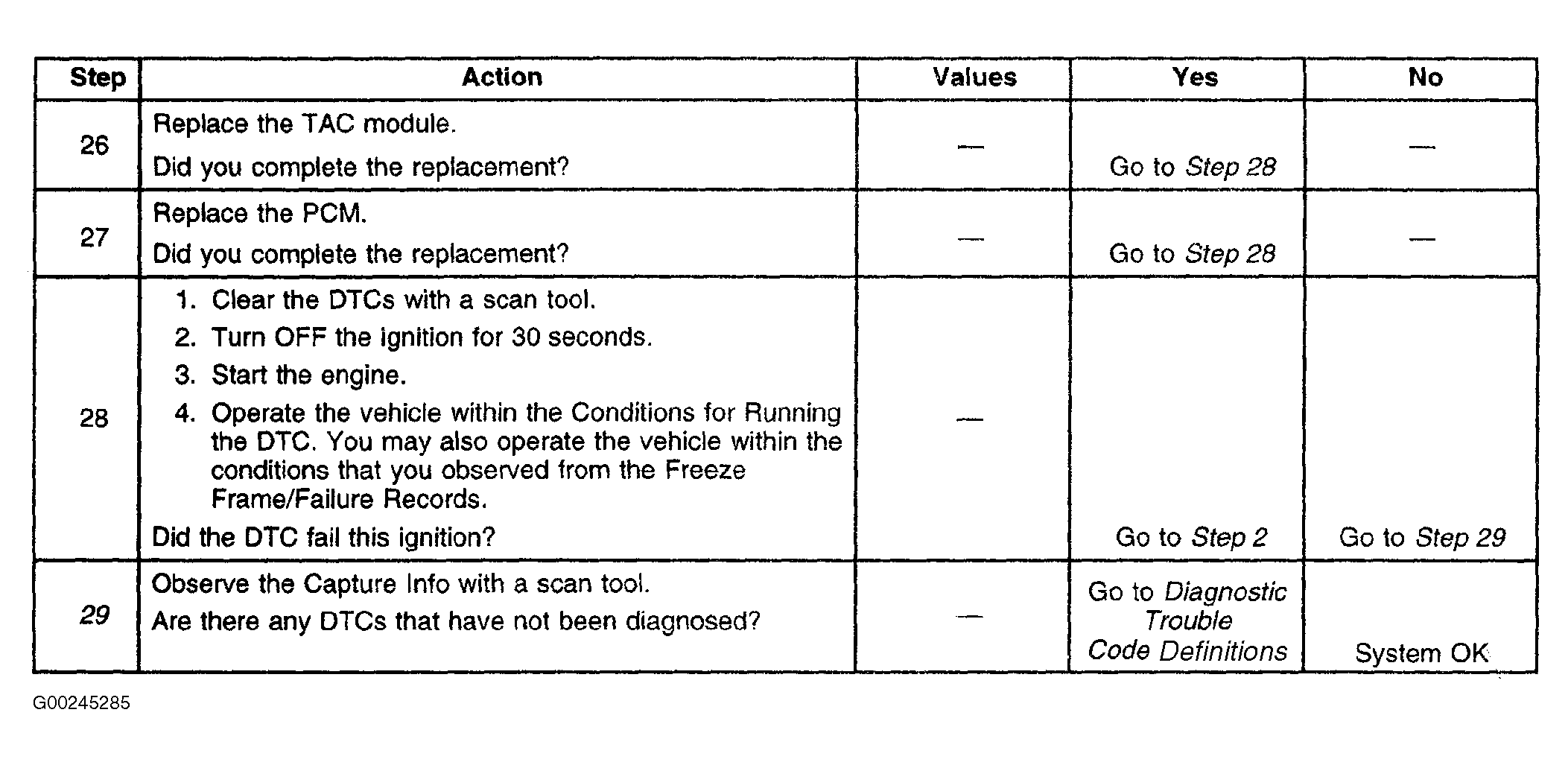

Fig 4: DTC P1518: Throttle Actuator Control Module Serial Data Fault (Steps 26-29)
G00245285Courtesy of GENERAL MOTORS CORP.
