Home >> Chevrolet >> 2003 >> Avalanche 2500, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self Diagnostics - 8.1L >> Diagnostic Tests >> DTC P0325: Knock Sensor Module Circuit >> Diagnostic Procedure

Diagnostic Procedure

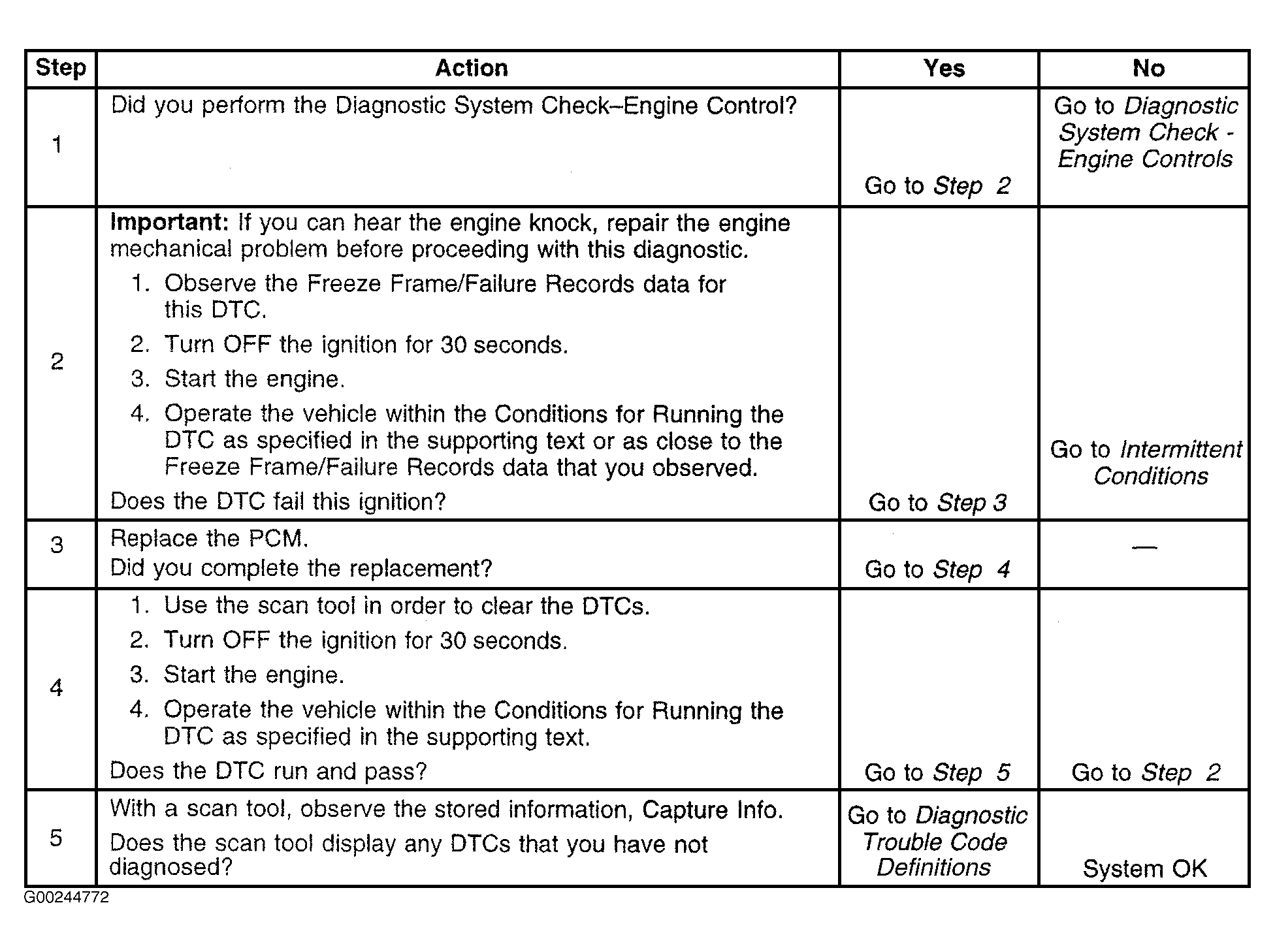

Fig 1: DTC P0325: Knock Sensor Module Circuit

G00244772

Courtesy of GENERAL MOTORS CORP.
