2-4 Servo: Installation

  1. Install the new seals on the pistons and the servo cover. Lubricate the seals with clean transmission fluid. Install the 2-4 servo assembly into the 2-4 servo bore. Install the servo cover and "O" ring seal. Install the servo cover depressor.
  2. Tighten the bolt on the servo cover depressor to compress the servo cover. See Figure . Install the servo cover retaining ring. Remove the servo cover depressor from the oil pan flange.

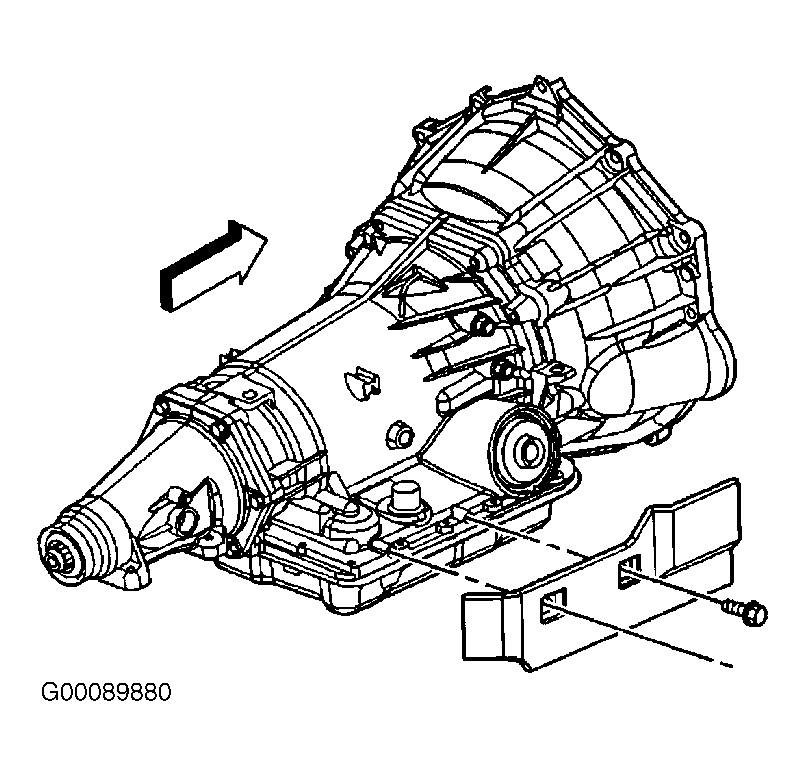

  3. Install the oil pan bolt and tighten to specification. See TORQUE SPECIFICATIONS  . Install the transmission heat shield. See Figure . Tighten bolts to specification. See TORQUE SPECIFICATIONS  . Remove the drain pan. Lower the vehicle. Check the automatic transmission fluid level. See CHECKING FLUID LEVELS  under LUBRICATION.
