Removal Procedure

CAUTION:
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
    IMPORTANT: The abrasion sleeve located on the steering column wire harness assembly must be reinstalled. Make note of what connector is coming out of the abrasion sleeve for installation purposes.

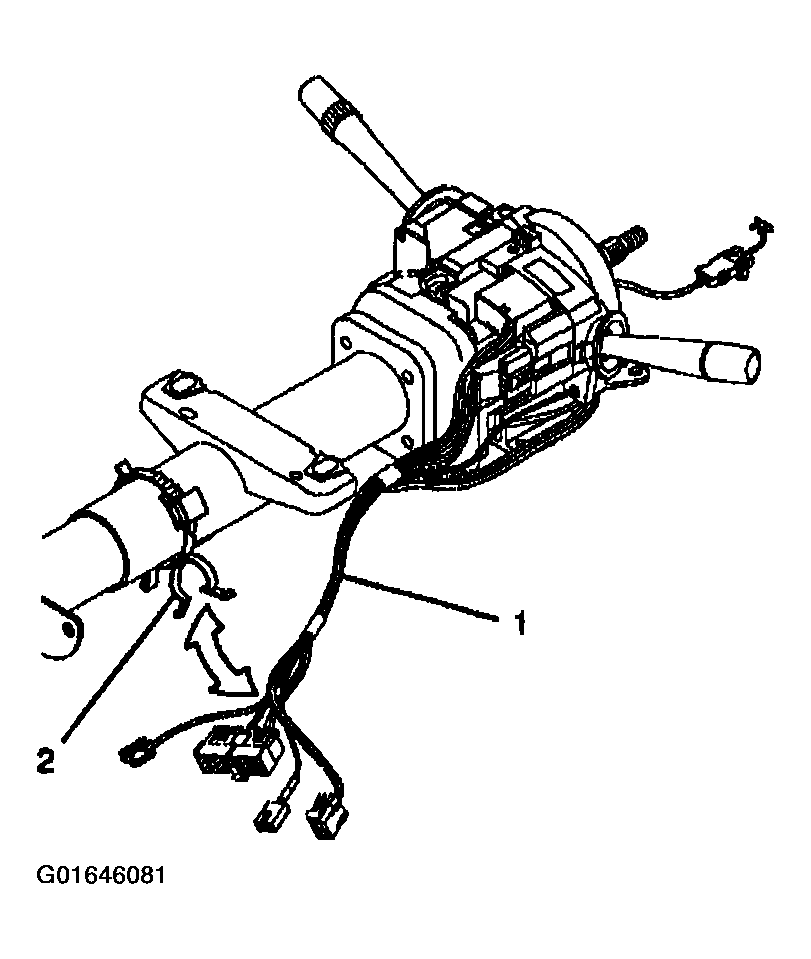

    Fig 1: Removing Wire Harness Assembly From Wire Harness Strap
    G01646081Courtesy of GENERAL MOTORS CORP.
  3. Remove the wire harness assembly (1) from the wire harness strap (2).
  4. Disconnect the turn signal and multifunction switch assembly connector from the SIR system coil connector.
  5. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).

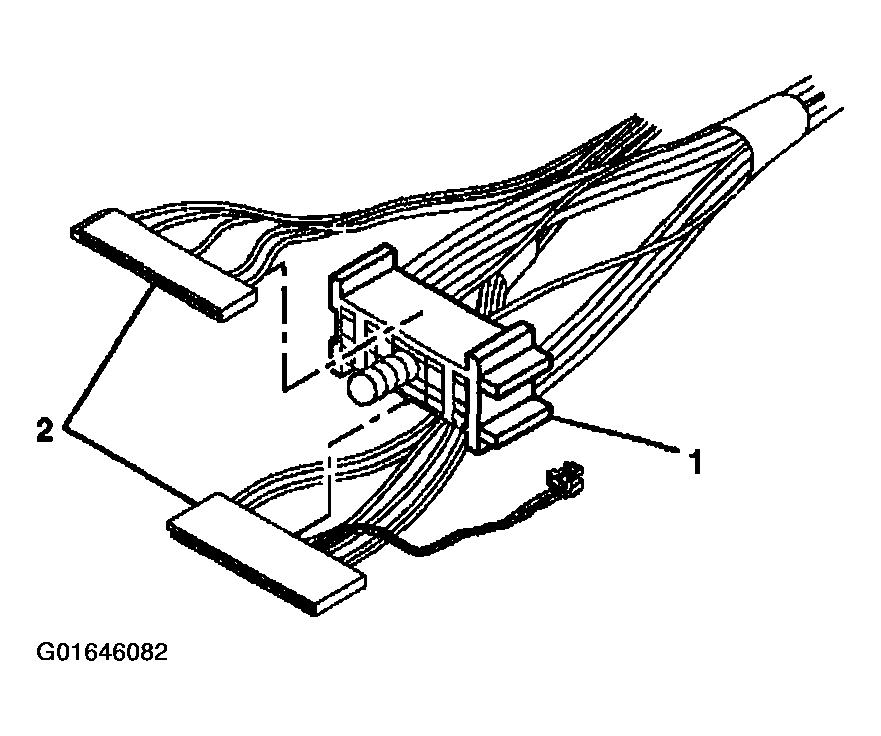

    Fig 2: Removing Connectors Of Turn Signal And Multifunction Switch Assembly From Bulkhead Connector
    G01646082Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 pan head tapping screws (1) and (3) from the turn signal and multifunction switch assembly (2).
  7. Remove the turn signal and multifunction switch assembly (2) from the steering column tilt head assembly.

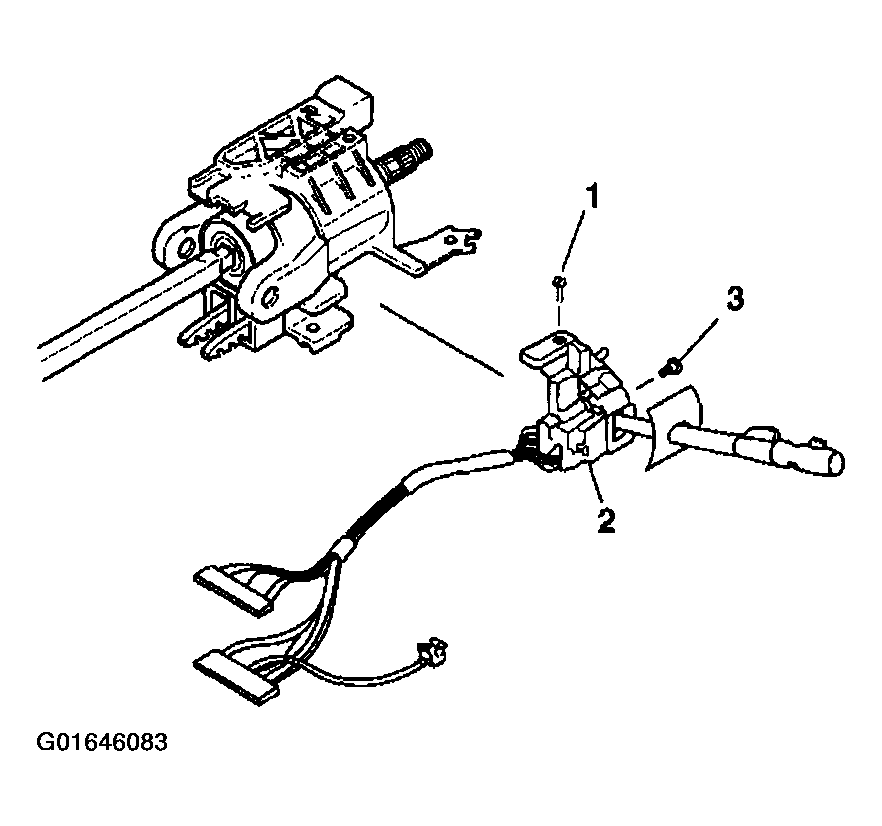

    Fig 3: Removing Turn Signal And Multifunction Switch Assembly From Steering Column Tilt Head Assembly
    G01646083Courtesy of GENERAL MOTORS CORP.
