Removal Procedure
IMPORTANT:
Use the proper tool in order to separate all the ball joints.
- Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

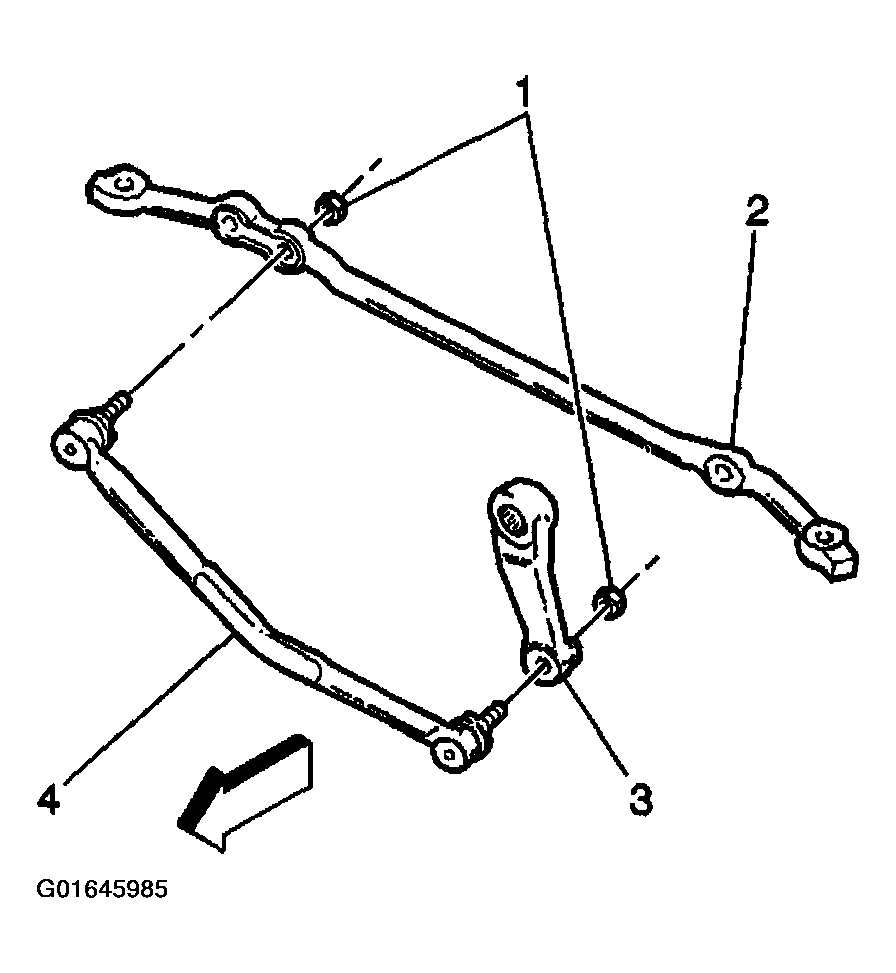

- Remove the prevailing torque nut (1) from the connecting rod (4) ball stud.
Discard the prevailing torque nut (1).
- Disconnect the connecting rod (4) from the relay rod (2).
- Remove the prevailing torque nut (1) from the pitman arm (3) ball stud.
Discard the prevailing torque nut (1).
- Disconnect the connecting rod (1) from the pitman arm (3).
- Inspect the ball stud threads for damage.
- Inspect the ball stud seals for excessive wear.
- Clean the threads on the ball stud.
