Home >> Chevrolet >> 2003 >> Astro Van Cargo, AWD >> Repair and Diagnosis >> Steering >> Power Steering System >> Special Tools and Equipment

Special Tools and Equipment

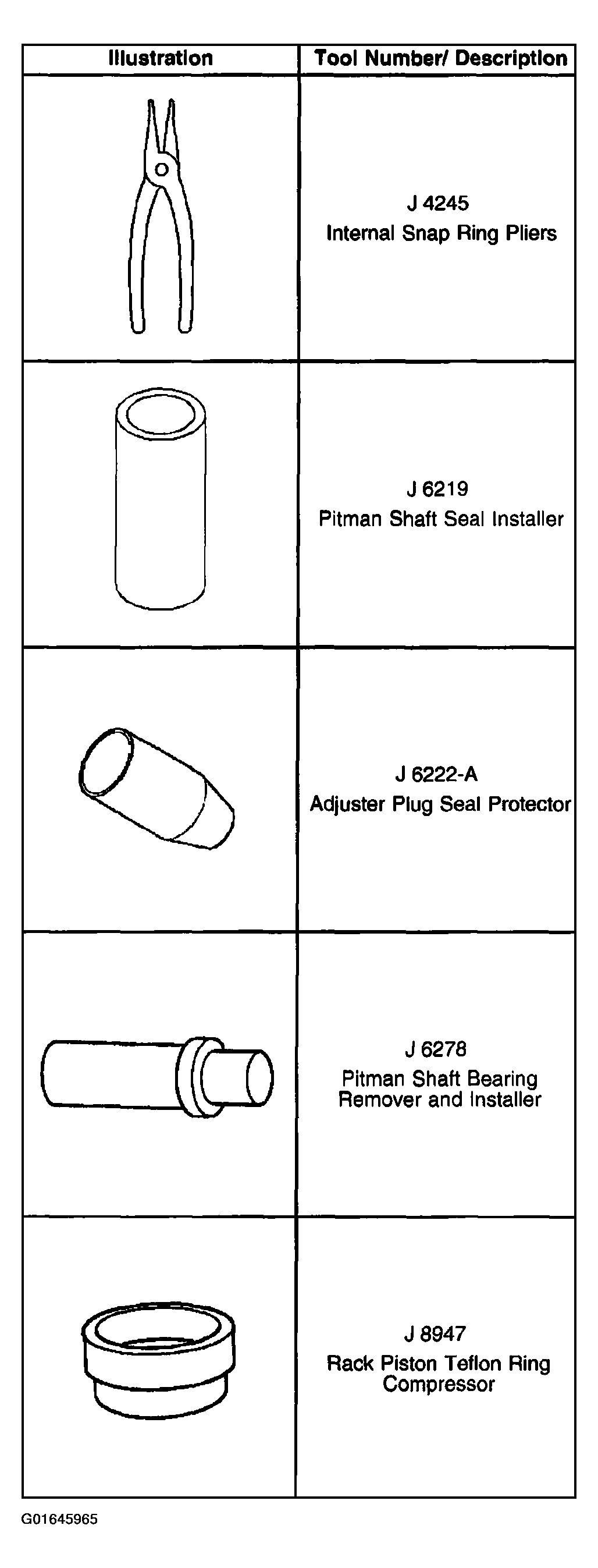

Fig 1: Special Tools & Equipments (1 Of 3)
G01645965Courtesy of GENERAL MOTORS CORP.

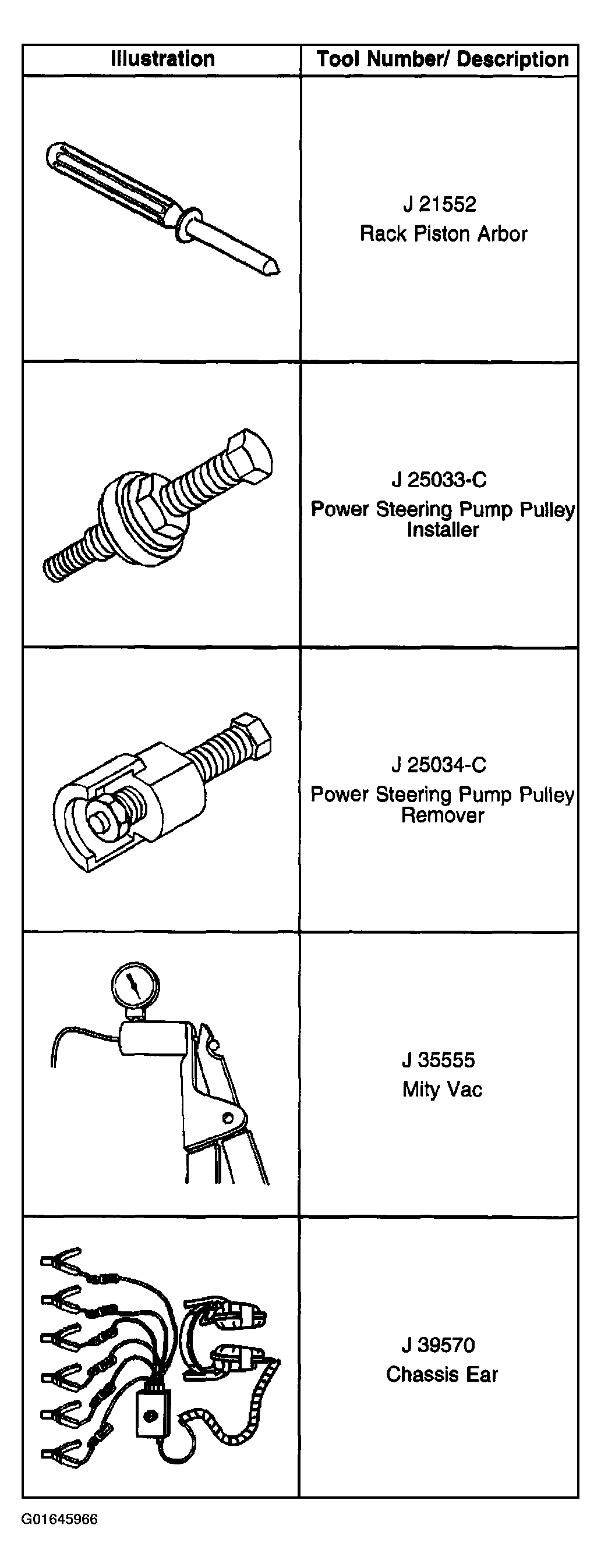

Fig 2: Special Tools & Equipments (2 Of 3)
G01645966Courtesy of GENERAL MOTORS CORP.

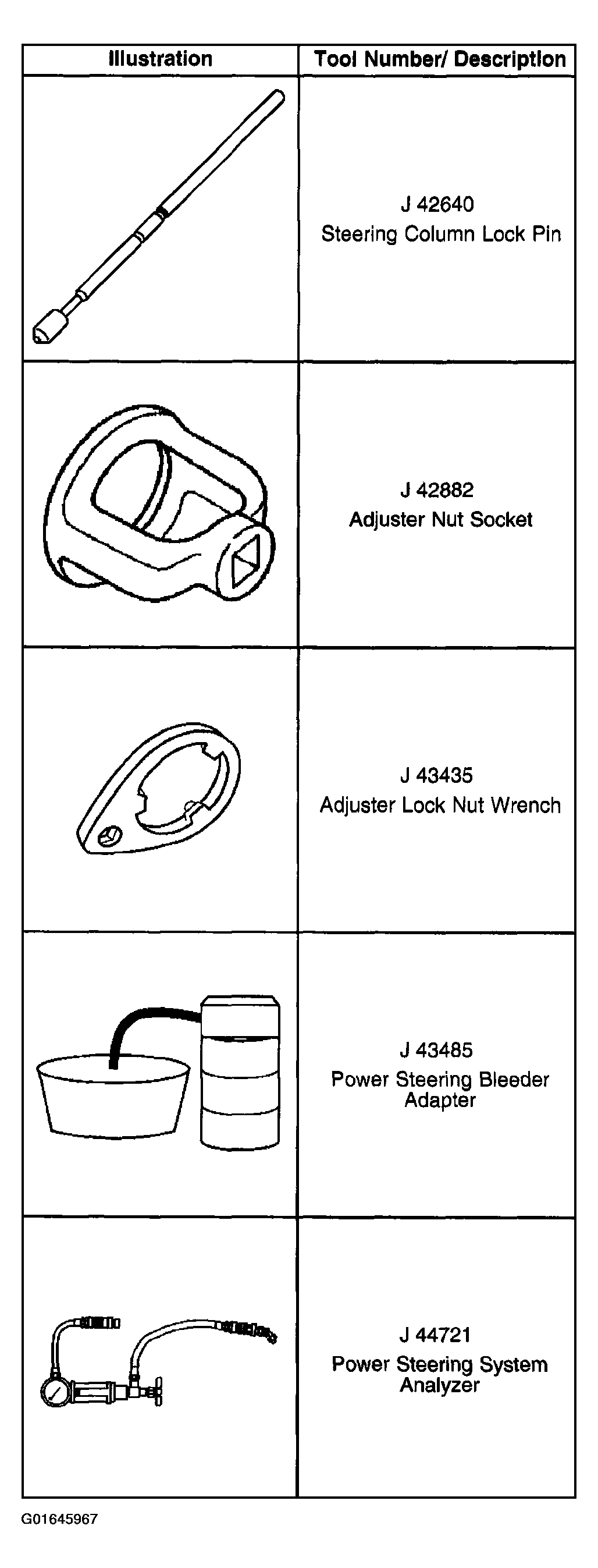

Fig 3: Special Tools & Equipments (3 Of 3)
G01645967Courtesy of GENERAL MOTORS CORP.
