Installation Procedure

  1. Install the retractor to the vehicle.

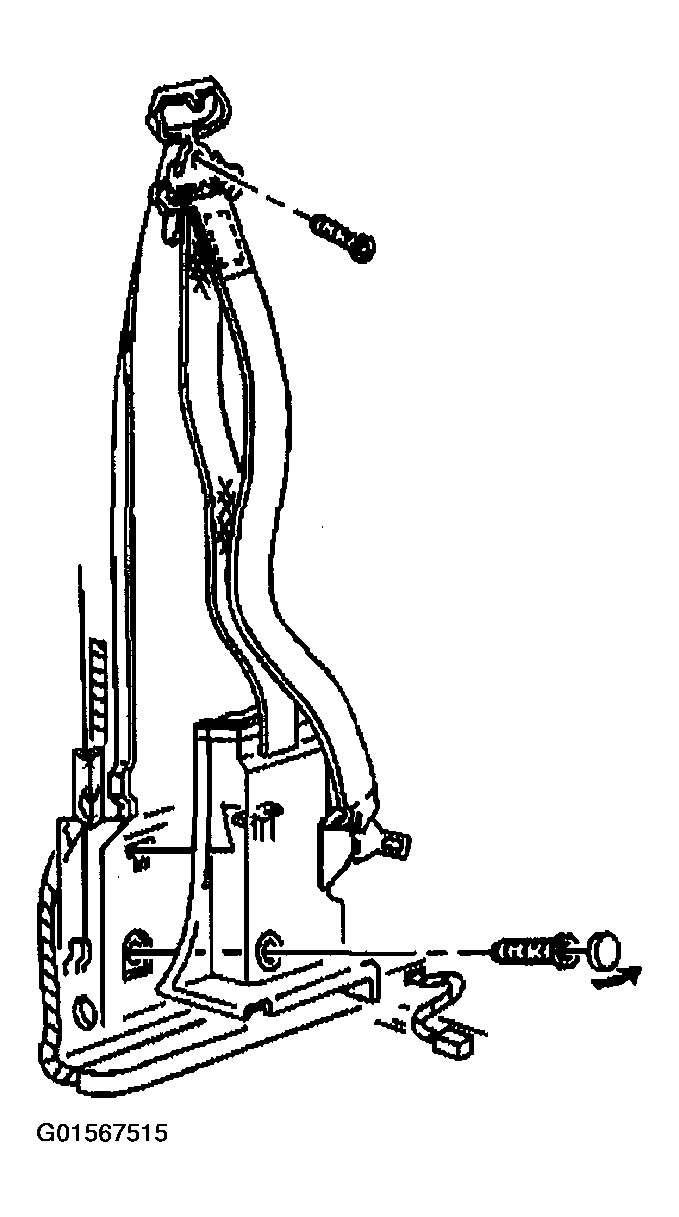

    Fig 1: Seat Belt Retractor (Left Front)
    G01567515Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retractor bolt to the pillar.

    Tighten

    Tighten the retractor bolt to the pillar to 53 N.m (39 lb ft).

  3. Install the electrical connectors.
  4. Install the body side front lower molding. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
  5. Install the left inside garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- LF LOCK PILLAR in Interior Trim.
  6. Install the bolt retaining the shoulder belt guide to the adjuster bracket.

    Tighten

    Tighten the shoulder belt retaining bolt to 30 N.m (22 lb ft).

  7. Install the cover to the shoulder belt guide.
  8. Install the seat belt to the seat belt guide located on the side of the bucket seat.
  9. Slide the front seat back in position.
