Liftglass Lock/Unlock Release Switch Connector End View

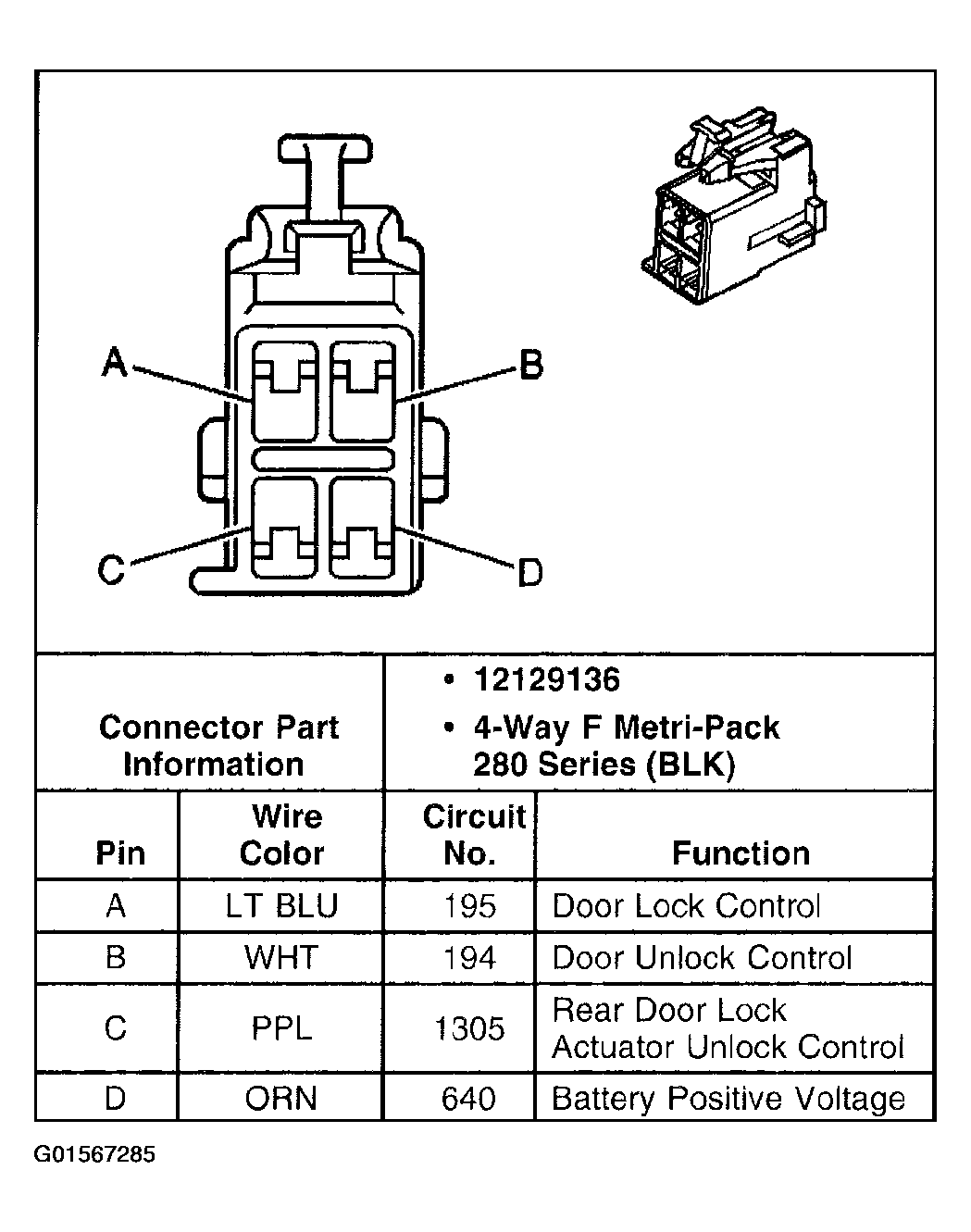

Fig 1: Liftglass Lock/Unlock Release Switch Connector End View

G01567285

Courtesy of GENERAL MOTORS CORP.
