Conditions for Enabling Cruise Control

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle speed is greater than 40 km/h (25 mph).

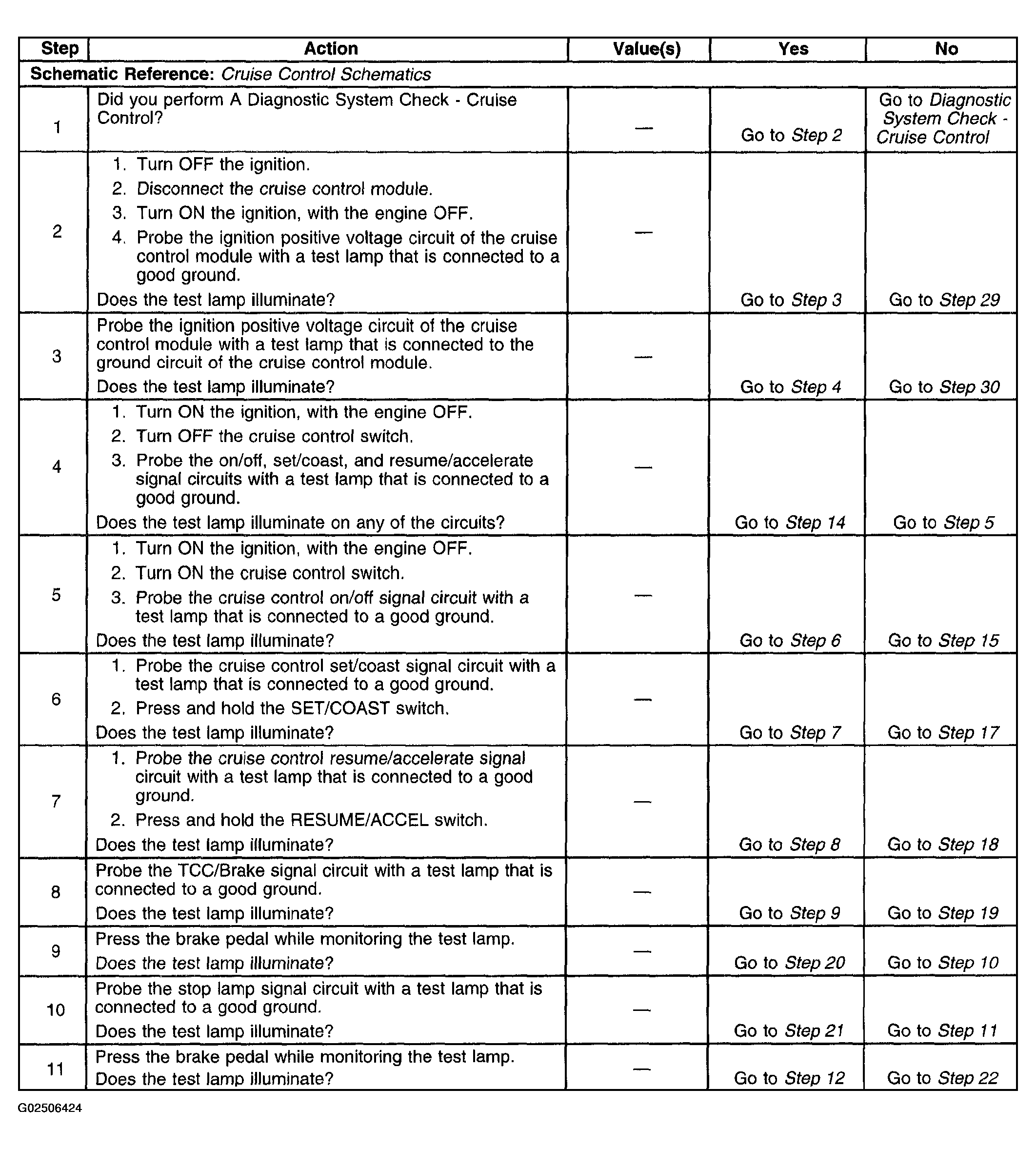

Fig 1: Identifying Cruise Control Inoperative/Malfunctioning (1 Of 3)
G02506424Courtesy of GENERAL MOTORS CORP.

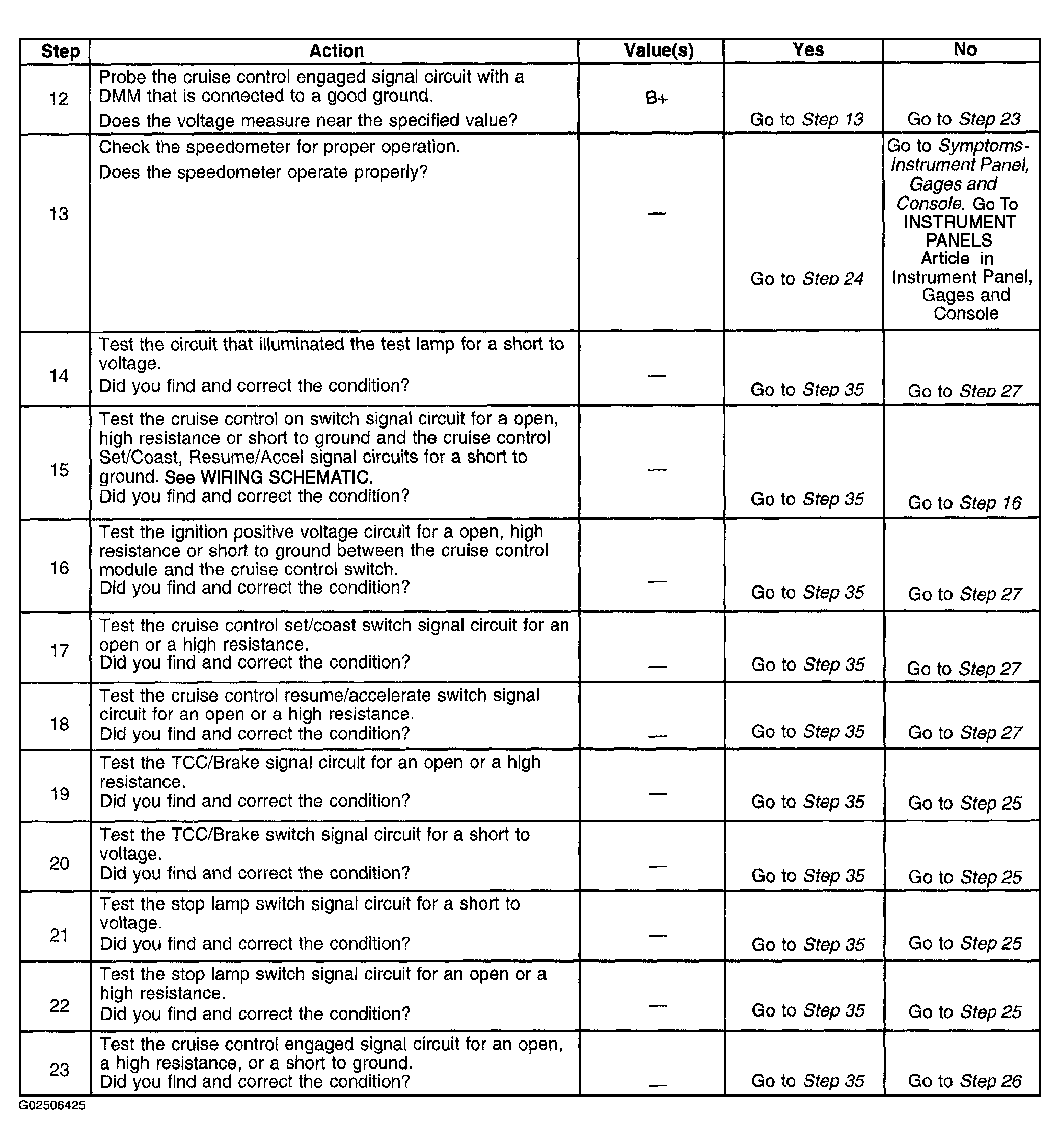

Fig 2: Identifying Cruise Control Inoperative/Malfunctioning (2 Of 3)
G02506425Courtesy of GENERAL MOTORS CORP.

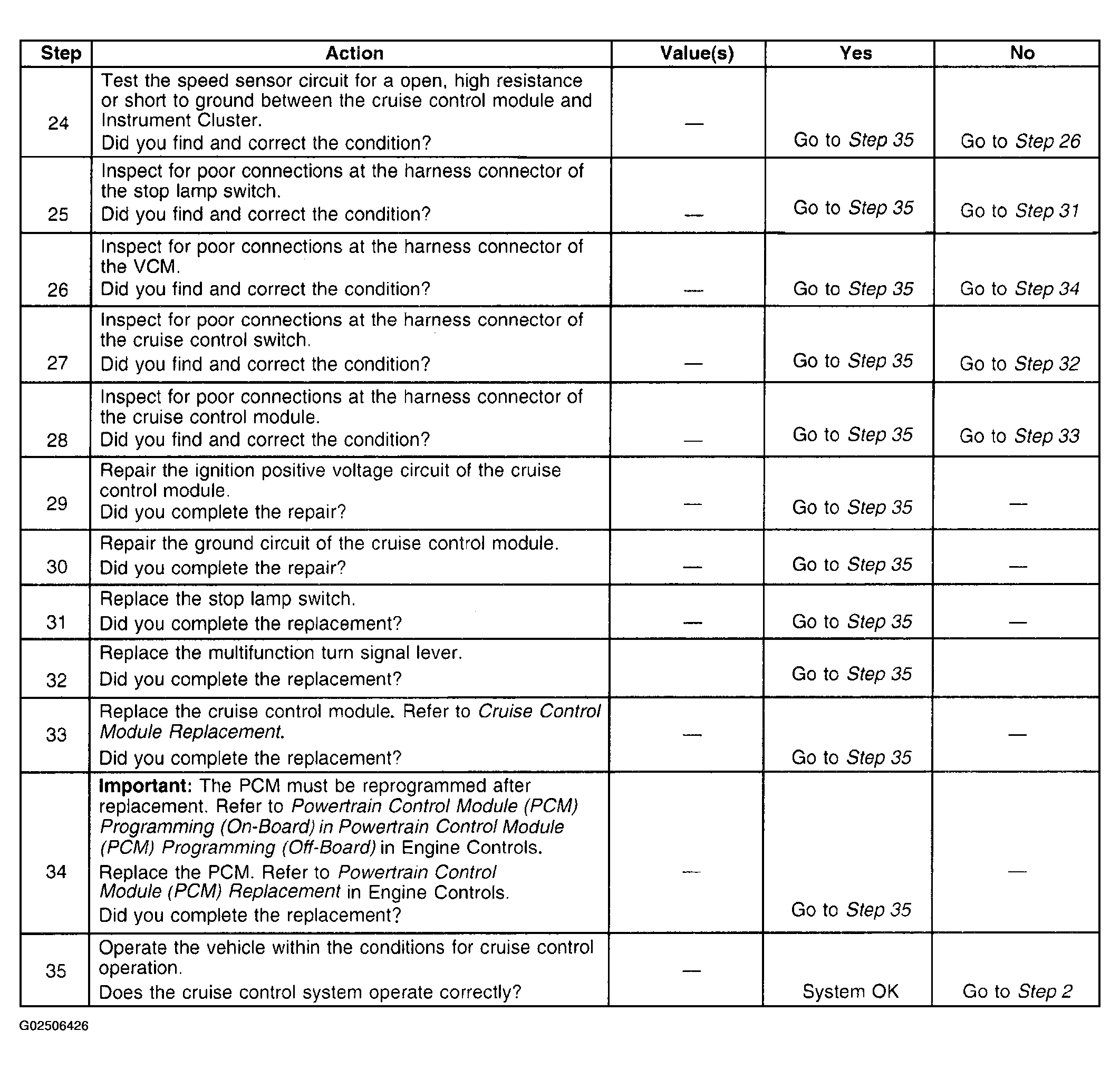

Fig 3: Identifying Cruise Control Inoperative/Malfunctioning (1 Of 3)
G02506426Courtesy of GENERAL MOTORS CORP.
