Engine Electrical Connector End Views

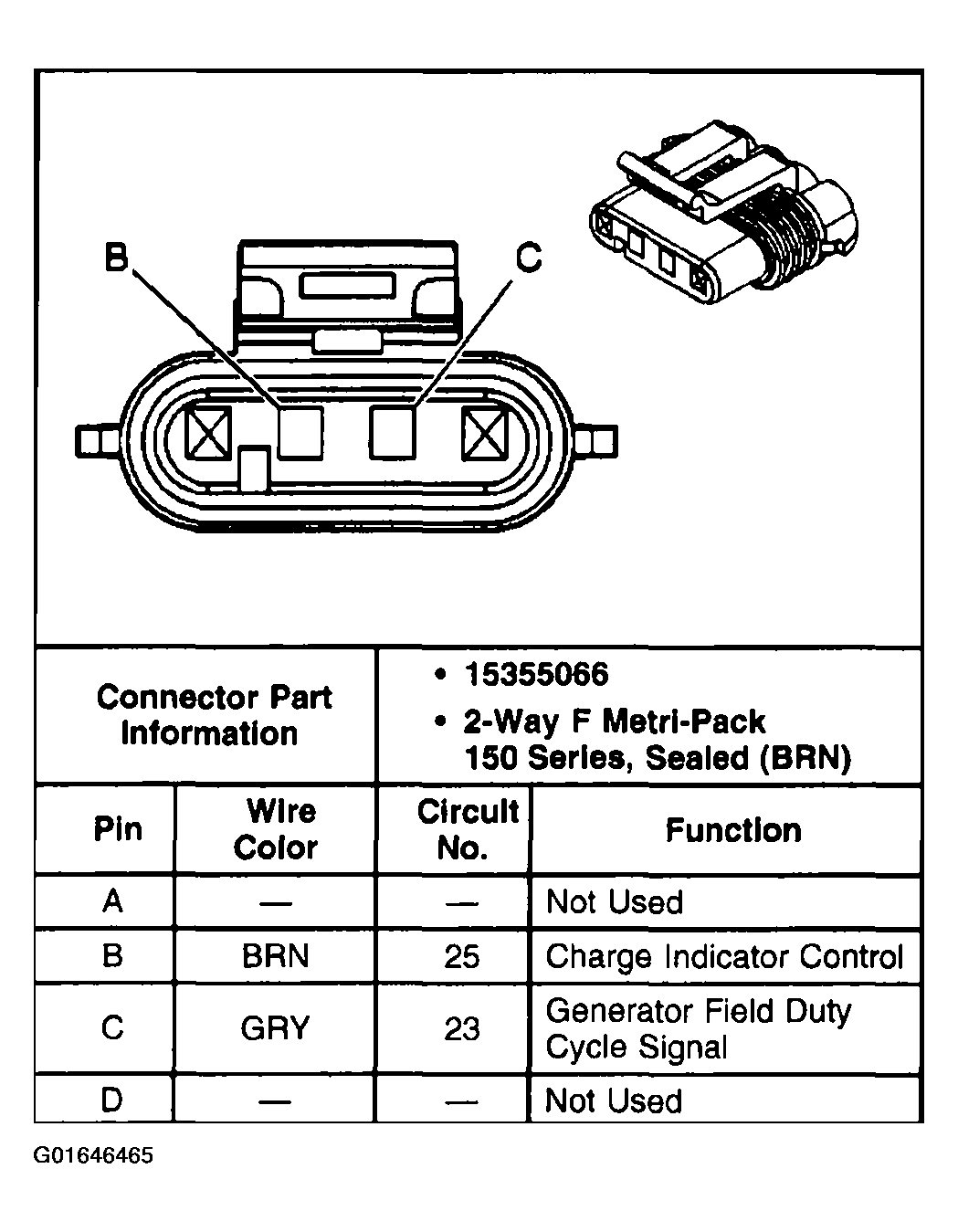

Fig 1: Identifying Generator Connector Terminals

G01646465

Courtesy of GENERAL MOTORS CORP.
