PID Values

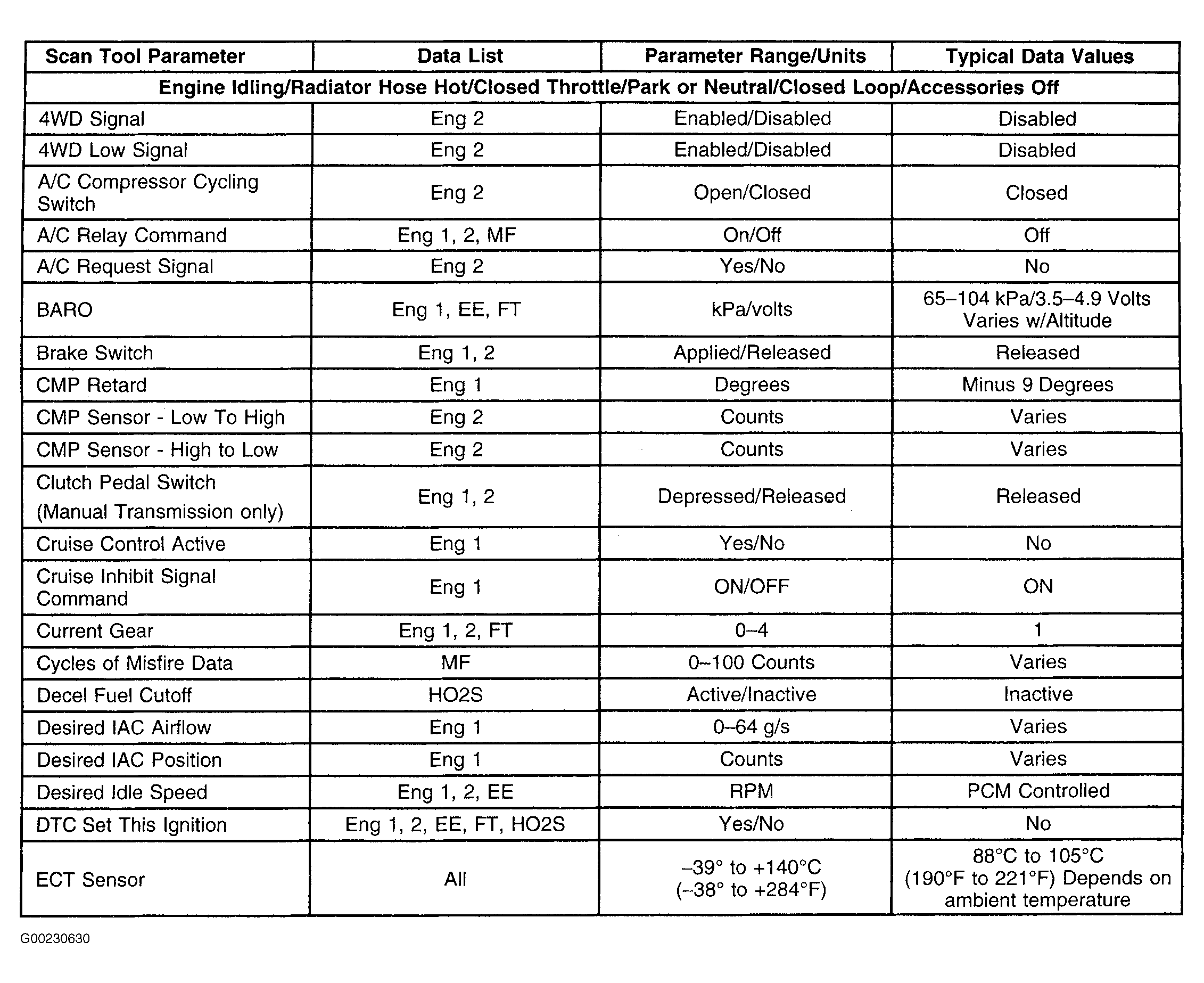

Fig 1: PID Values (1 Of 3)

G00230630

Courtesy of GENERAL MOTORS CORP.

Fig 2: PID Values (2 Of 3)

G00230631

Courtesy of GENERAL MOTORS CORP.

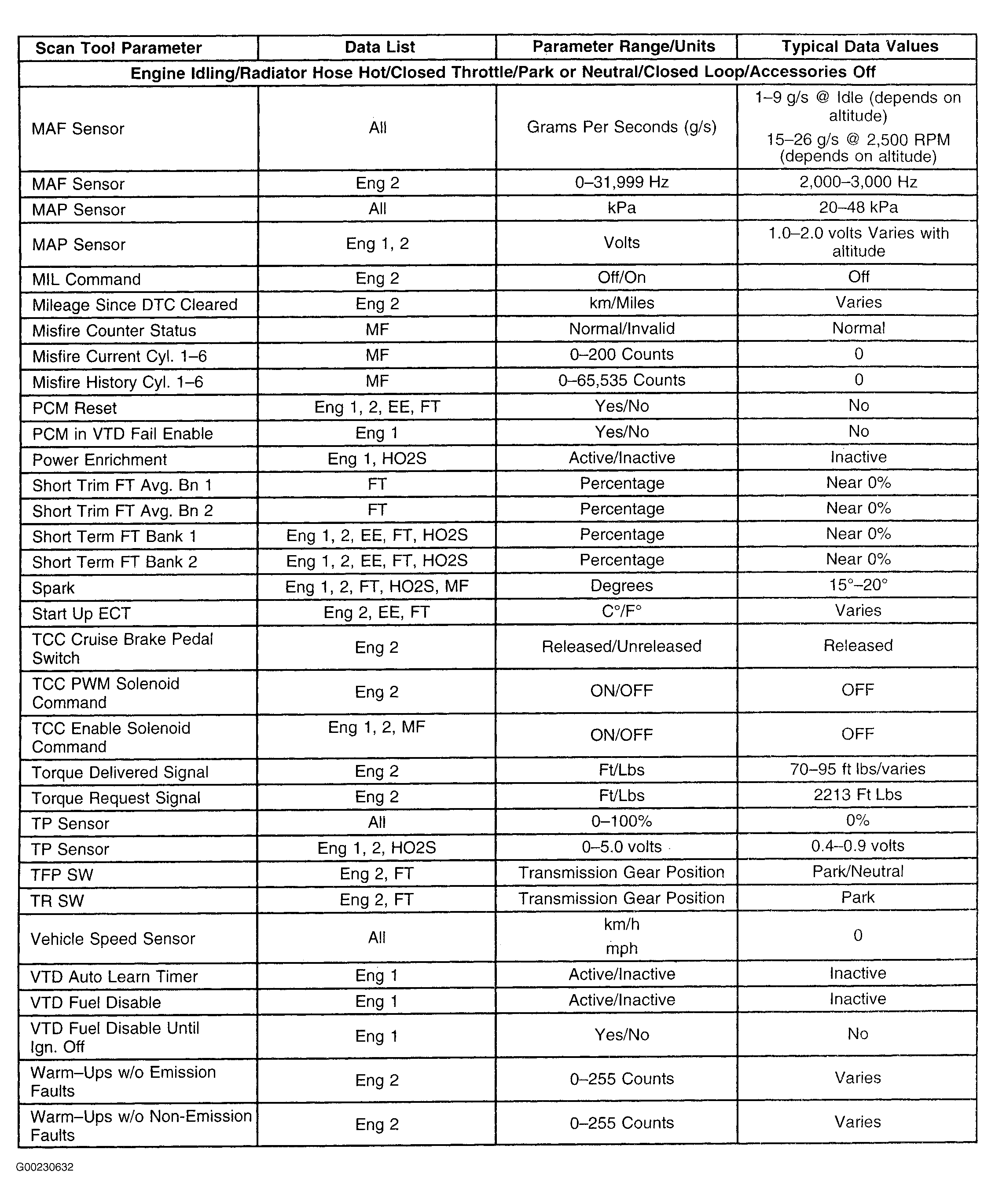

Fig 3: PID Values (3 Of 3)

G00230632

Courtesy of GENERAL MOTORS CORP.
