Door Lock/Indicator Schematics

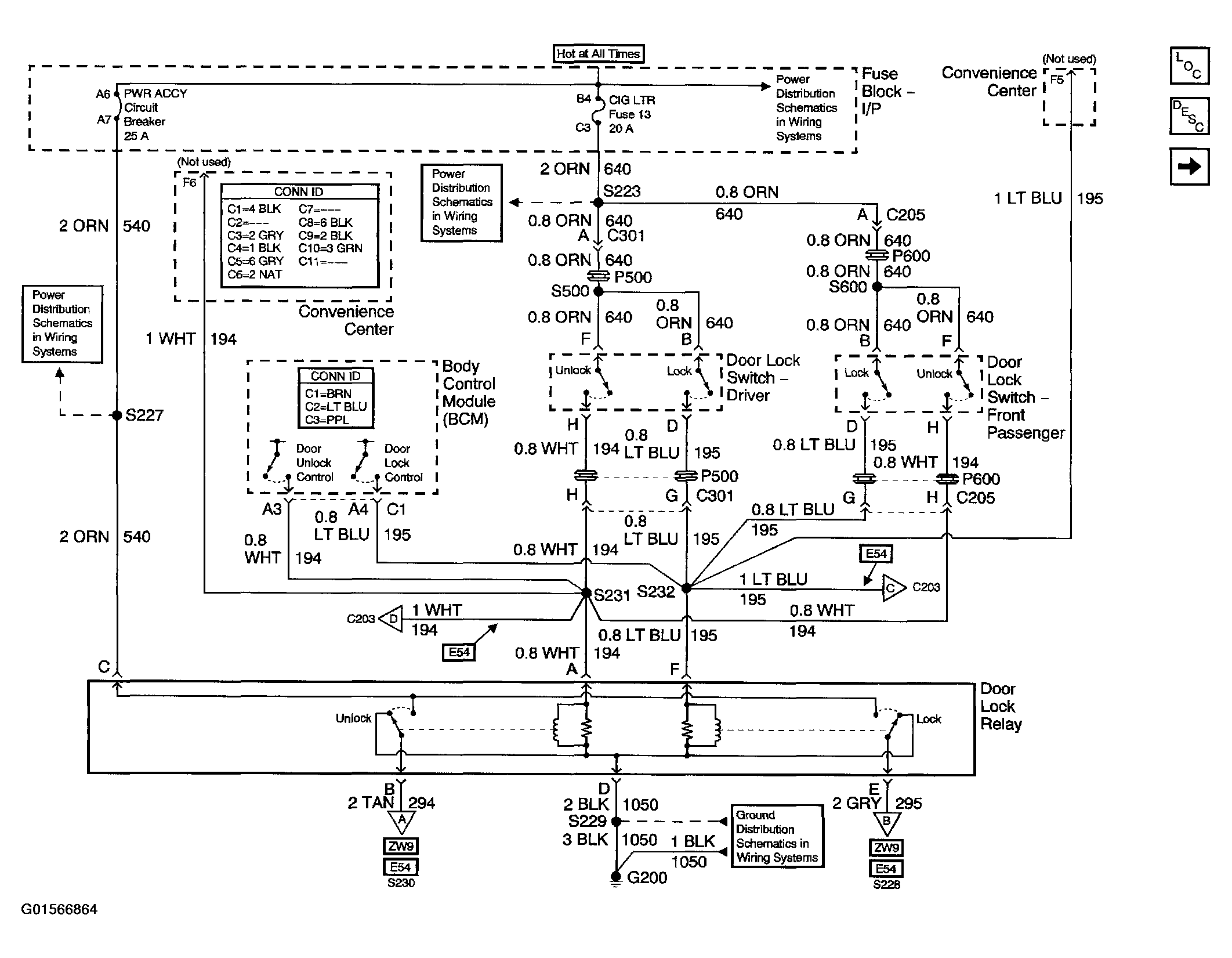

Fig 1: Door Lock Switches And Relay
G01566864Courtesy of GENERAL MOTORS CORP.

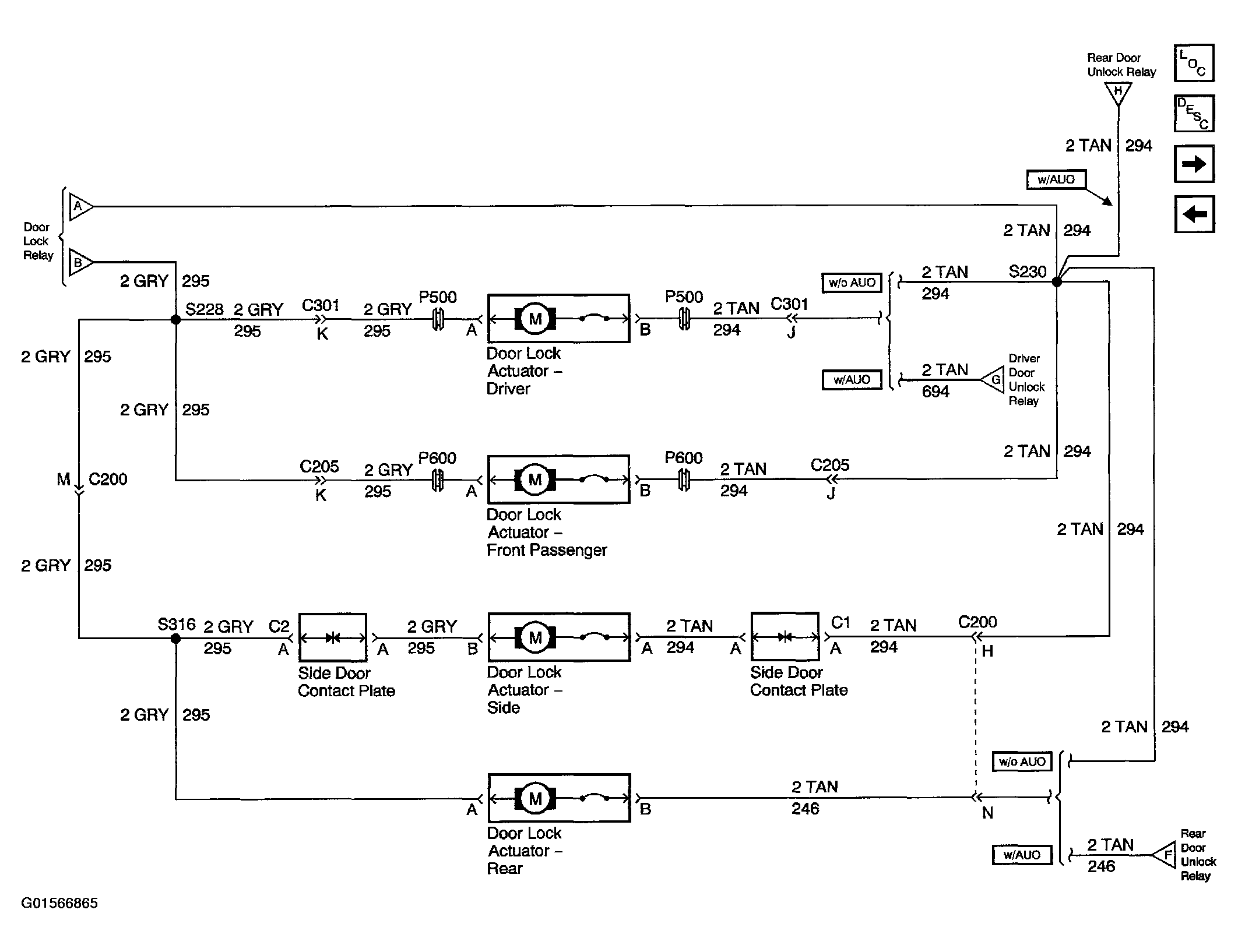

Fig 2: Door Lock Actuators (ZW9)
G01566865Courtesy of GENERAL MOTORS CORP.

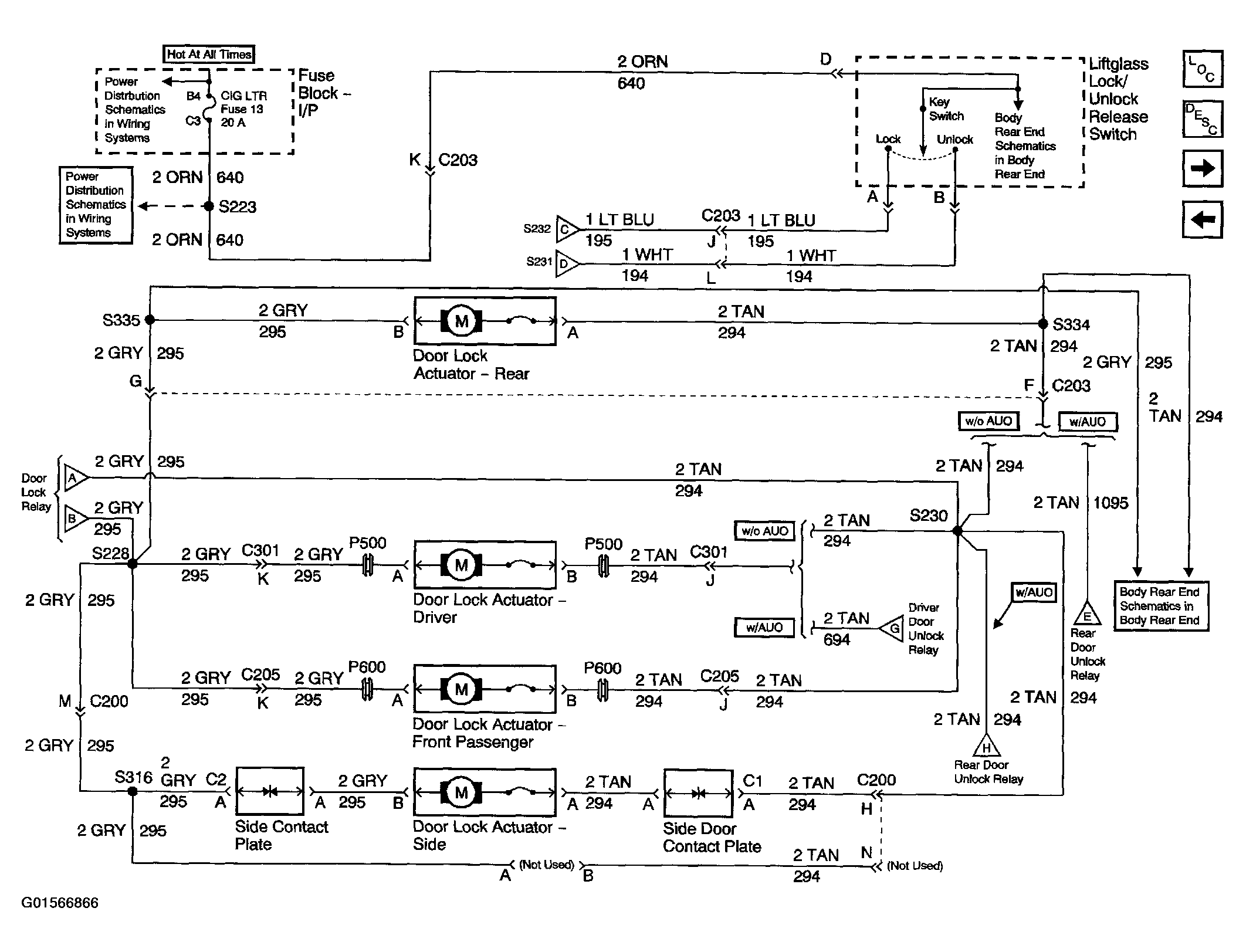

Fig 3: Door Lock Actuators (E54)
G01566866Courtesy of GENERAL MOTORS CORP.

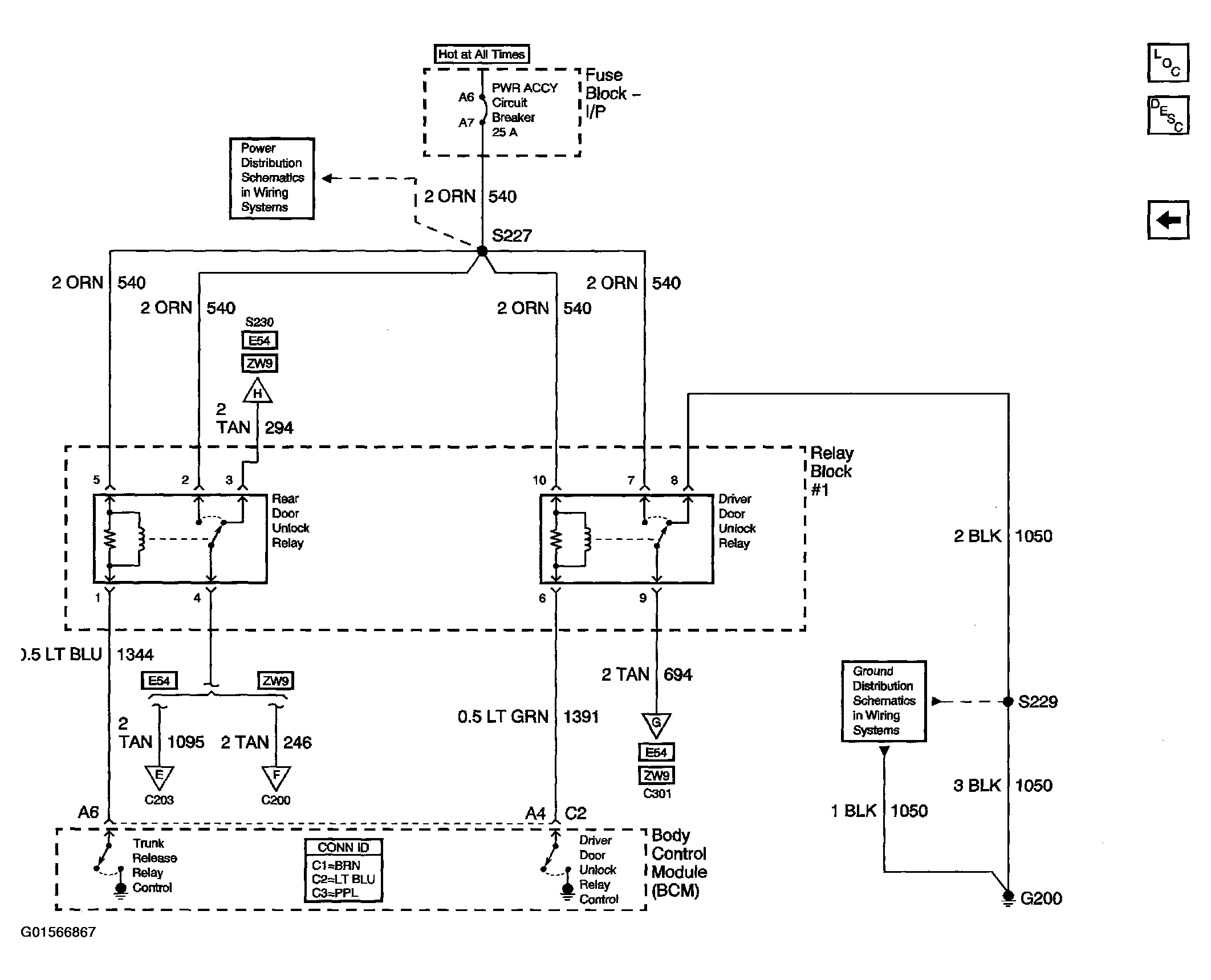

Fig 4: Door Unlock Relays
G01566867Courtesy of GENERAL MOTORS CORP.
