Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Use a sharp bladed tool in order to separate the water deflector at the perforations. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the lock rods from the front door lock.
  4. Remove the front door lock screws.

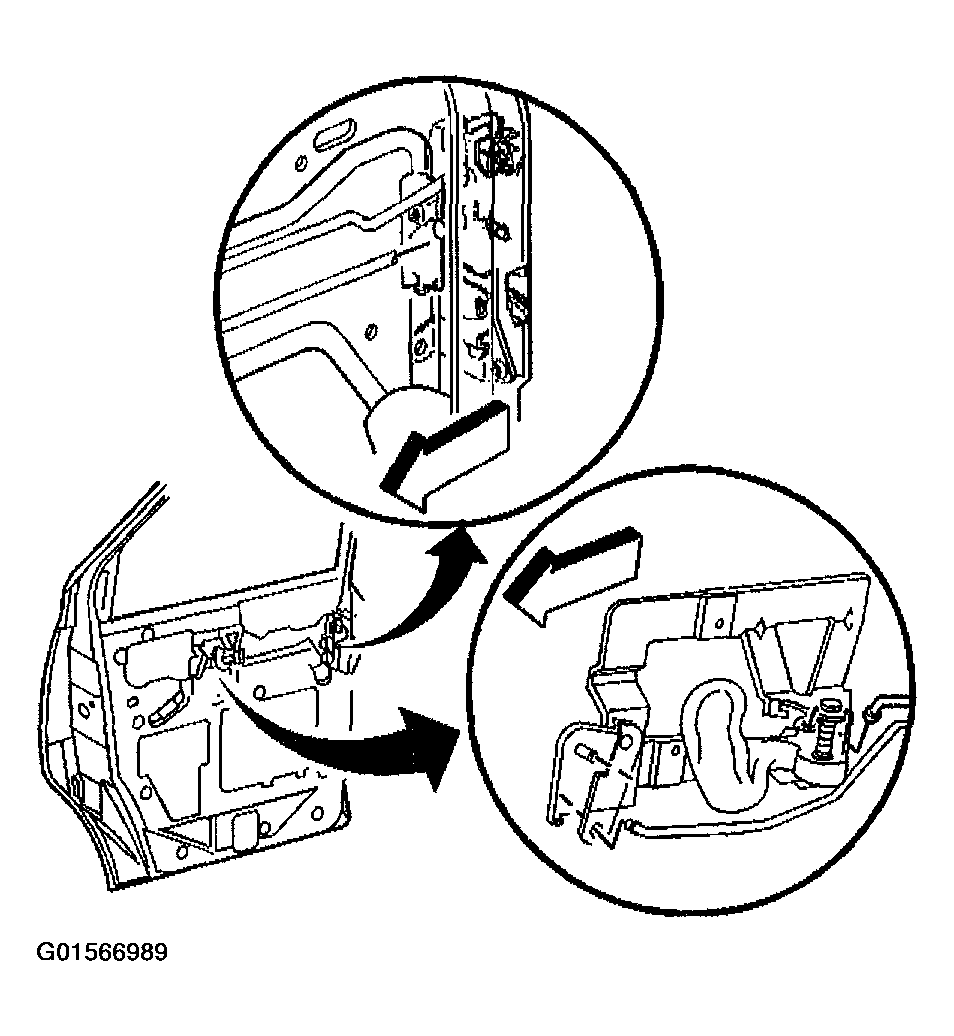

    Fig 1: Disconnecting Lock Rods From Front Door Lock
    G01566989Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door lock from the door.

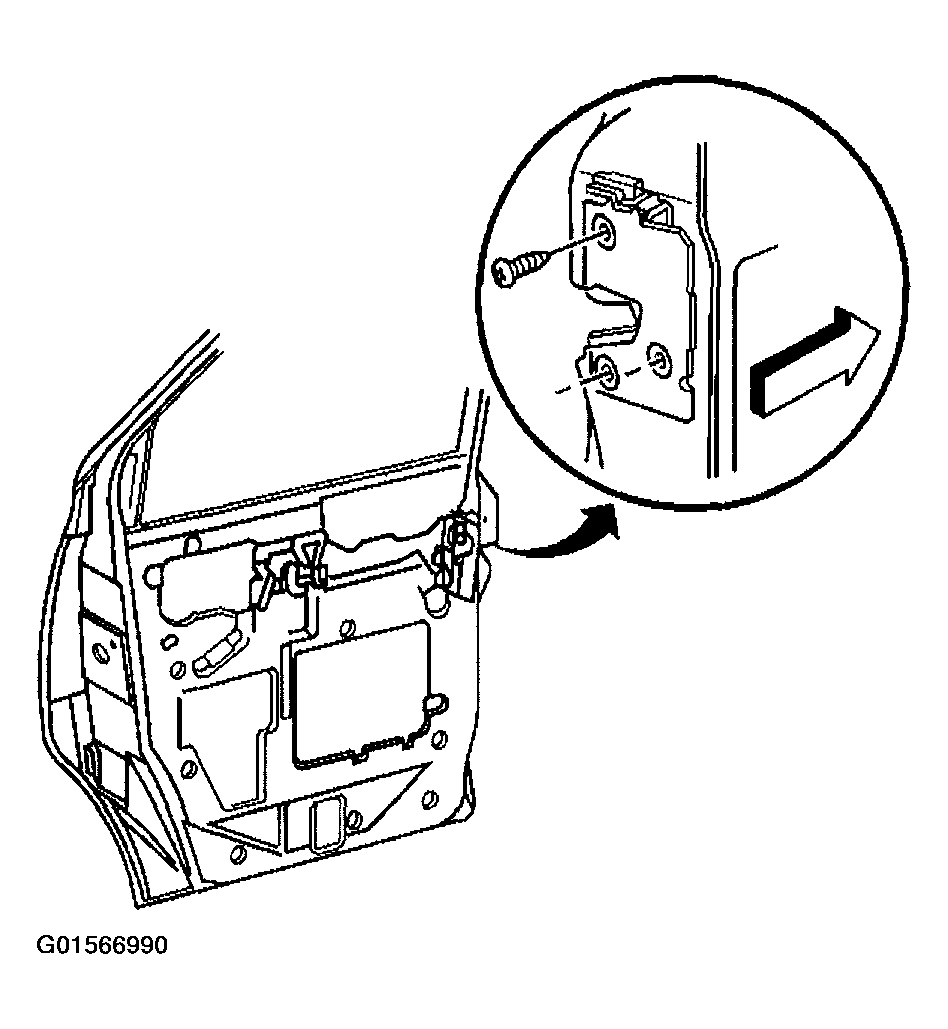

    Fig 2: Removing Front Door Lock From Door
    G01566990Courtesy of GENERAL MOTORS CORP.
