Power Seat Systems Connector End Views

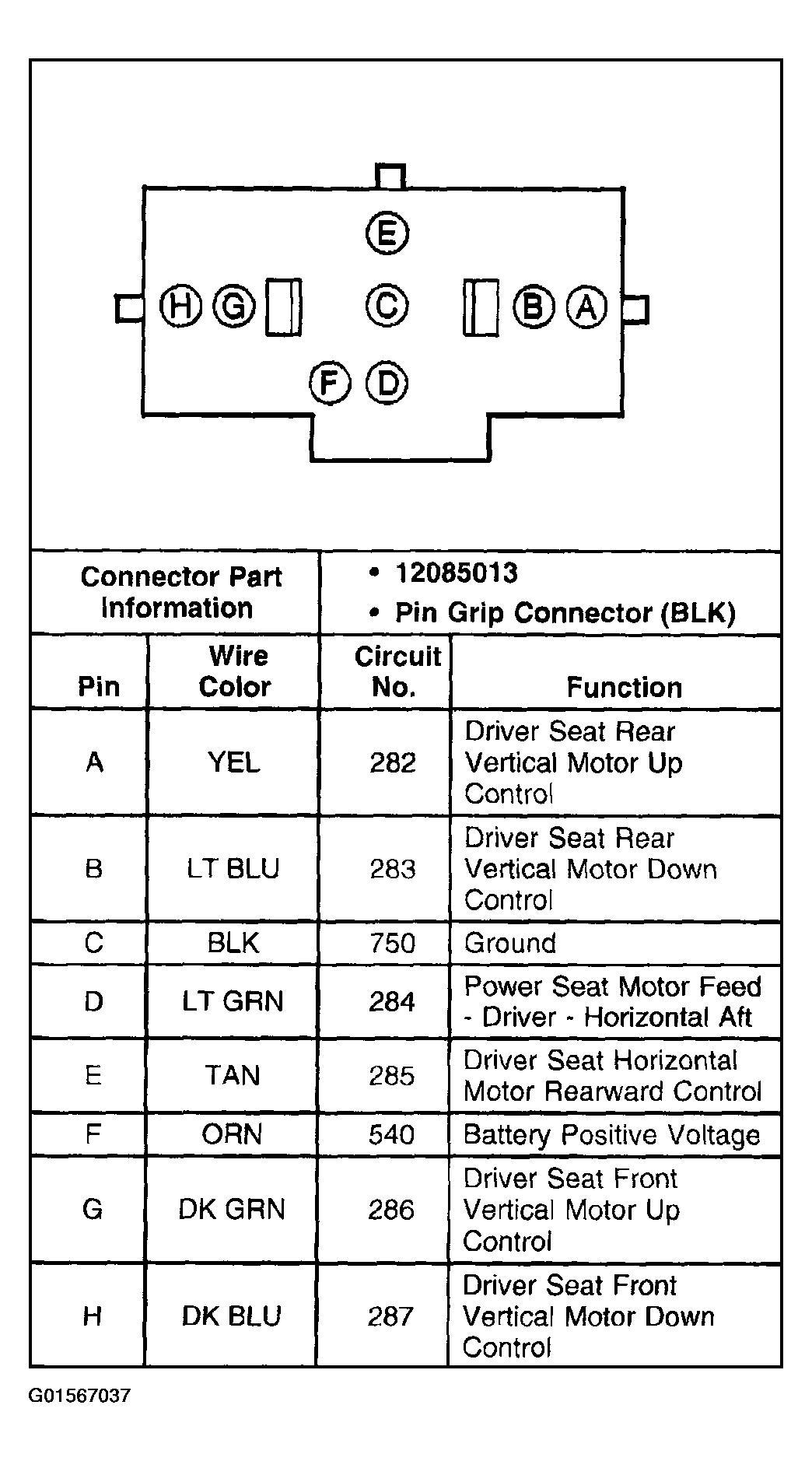

Fig 1: Power Seat Adjuster Switch Connector Terminals - Driver

G01567037

Courtesy of GENERAL MOTORS CORP.
