Transmitter Reference Table

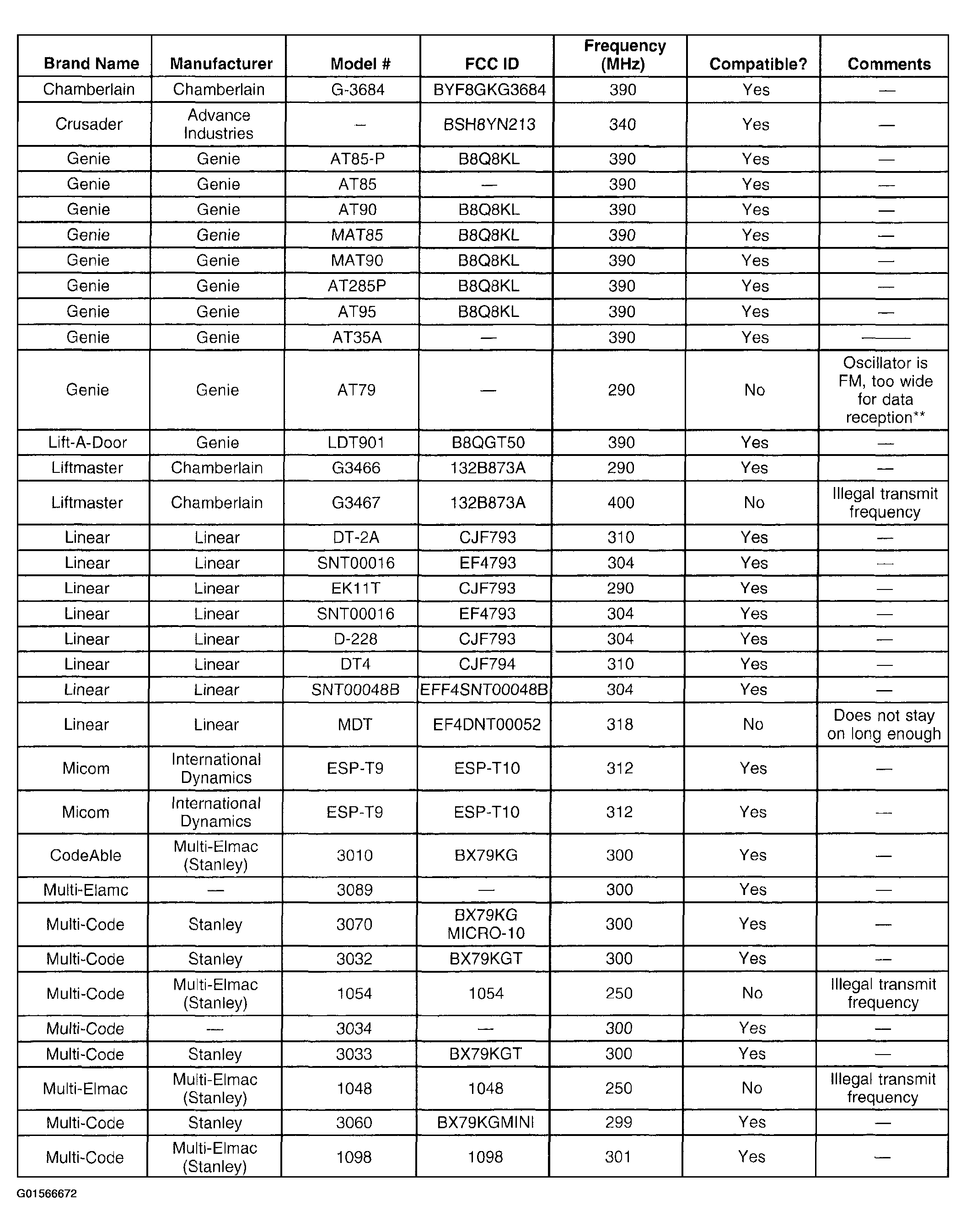

Fig 1: Transmitter Reference Table (1 Of 2)

G01566672

Courtesy of GENERAL MOTORS CORP.

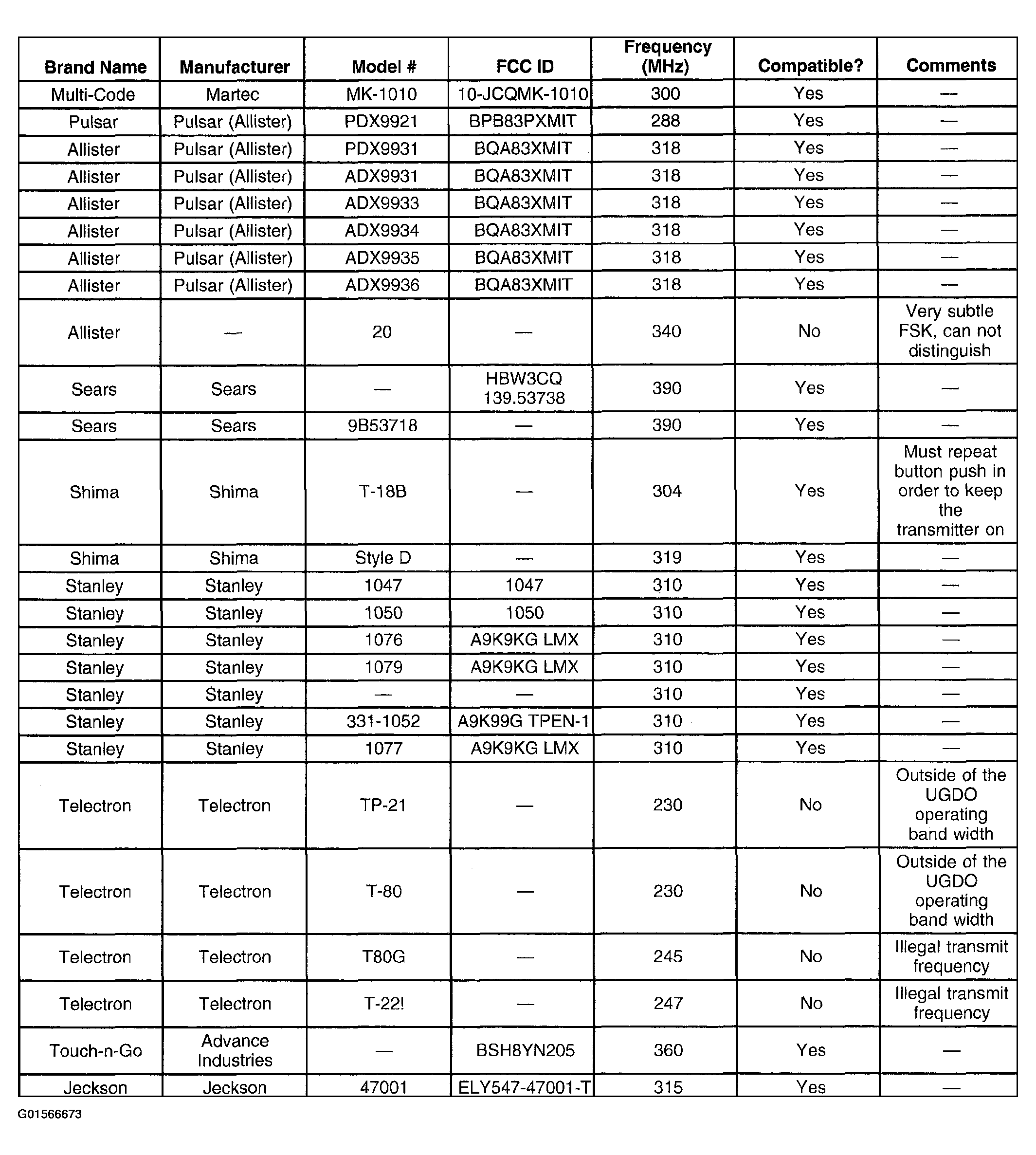

Fig 2: Transmitter Reference Table (2 Of 2)

G01566673

Courtesy of GENERAL MOTORS CORP.
