Driver Information Center (DIC) Connector End View

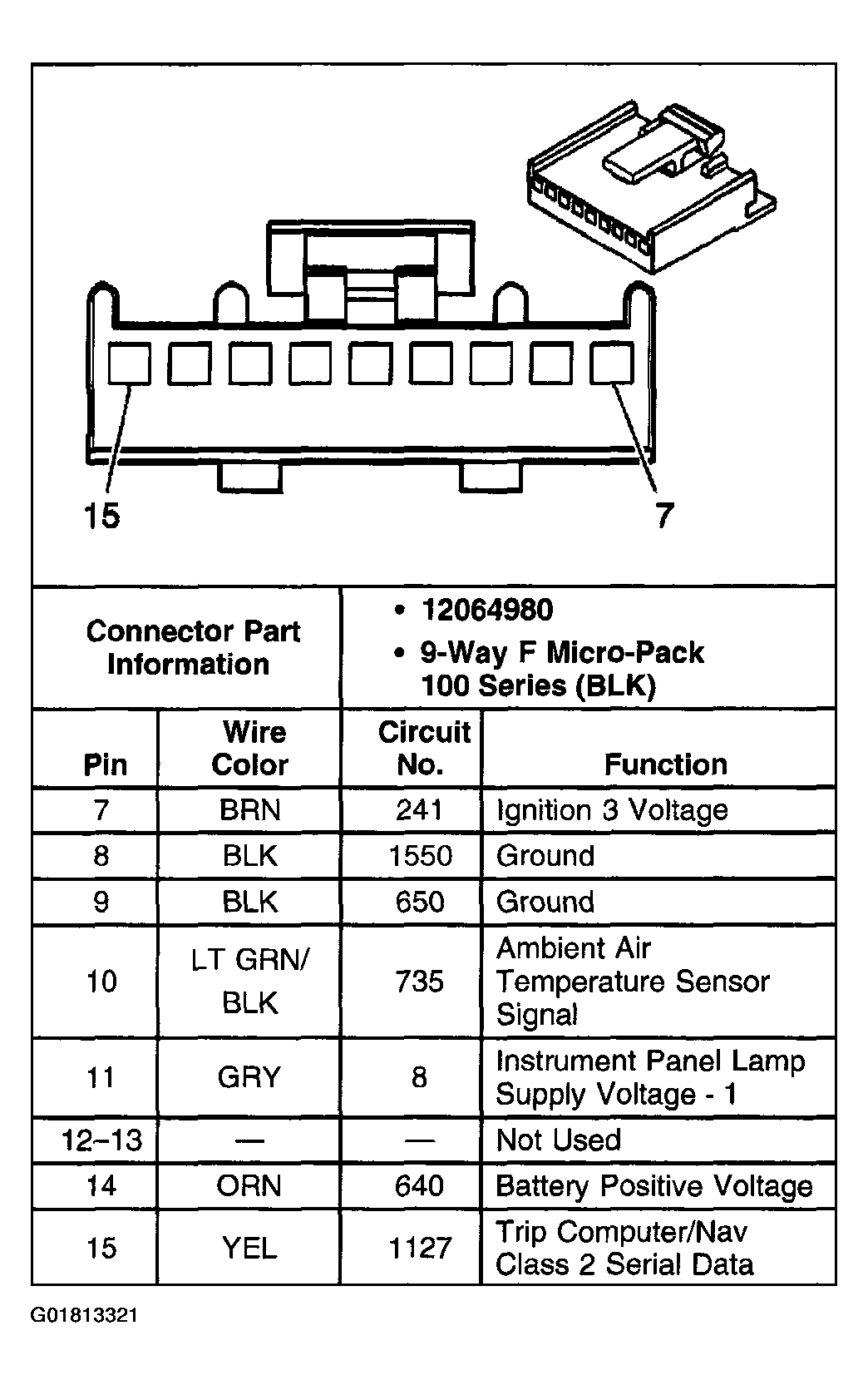

Fig 1: Driver Information Center (DIC)

G01813321

Courtesy of GENERAL MOTORS CORP.
